Washing machine control using basic AND & NOT gates
If the door is open, the level is high and the temperature is low, then _________.
Choose the correct output for the circuit shown.

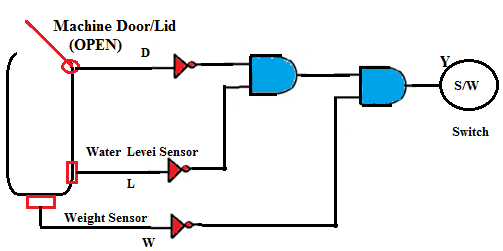

The Boolean expression Y for the given circuit diagram of the washing machine is ___________.
If any one or all the sensor outputs are 1, then the final output to the switch is _________.
If the door/lid of washing machine is open or water level is below the minimum level or washing machine is overloaded, the main switch should be turned
