Introduction

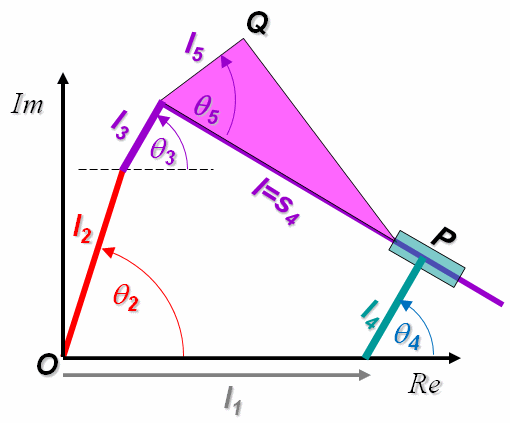

Position Analysis of a 4 Bar RRPR Grashofian Inverted Slider Crank Rocker Mechanism

The 4 bar RRRP mechanism (and its inversions - RRPR or RPRR) is another basic mechanism in studies on kinematics. It is also widely used in various forms because of the relative simplicity of design and manufacture. Like RRRR linkages, Grashof's criteria is used to distinguish between 4 bar linkages with one prismatic joint, depending on the rotatability of the links In brief, if l is the shorter of the crank and the coupler and L the longer of the two, and e is the offset, then the following cases arise

• l + e < L : Grashofian linkage
  • l + e < L, shortest link s is the ground link. : Inverted Slider Crank (RRPR)
  • l + e < L , shortest link is the coupler : Inverted Slider Rocker (RRPR)
  • l + e < L , shortest link is crank : Slider Crank (RRRP)
  • l + e < L , shortest link is coupler : Slider Rocker (RRRP)
• l + e > L : Non Grashofian linkage

For a more detailed introduction to Grashof criteria for linkages with one prismatic joint see the animated guide that follows. If undisturbed , the animation will proceed at a predetermined pace. You can either click on the animation itself to move from step to step as per your convenience. Alternatively you can use the controls at the bottom of the animation to see it at your own pace.

In a Grashofian Inverted Slider (Crank) Rocker, unlike the Grashofian Inverted Slider Crank, only the input link (link 2) CAN rotate through a full circle, while the output link (link 4) CANNOT . Since the input link rotates through a full circle it is possible to drive this mechanism using a simple continuous rotary drive, that is we may connect it directly to a simple motor. However, the output link cannot be used to drive a a simple continuous rotary drive.

Demo

Animation of a 4 Bar Grashofian Inverted Slider Crank Rocker
