Quantum Tunnelling Through Potential Barrier
Quantum Tunnelling Through Potential Barriers
Quantum tunneling, a fundamental phenomenon in quantum mechanics, challenges classical notions of particle behavior by allowing particles to traverse potential barriers that would be impassable according to classical laws. This phenomenon has profound implications across various scientific disciplines, from fundamental physics to technological advancements.
In our experiment, we aim to investigate and quantify the process of quantum tunneling using an interactive simulation. By designing an experiment that demonstrates the principles of tunneling, we seek to deepen our understanding of quantum mechanics and provide valuable insights into the behavior of particles at the quantum level.
Key Concepts
1. Quantum Tunneling Phenomenon
Quantum tunneling occurs when a particle encounters a potential energy barrier that exceeds its total energy. In classical mechanics, such a barrier would prevent the particle from passing through. However, according to quantum mechanics, there is a non-zero probability that the particle will penetrate the barrier and emerge on the other side.
2. Schrödinger Equation and Wave Functions
The behavior of particles in the presence of a potential barrier is described by the time-independent Schrödinger equation:
$\frac{d^2 \psi}{dx^2} + \frac{2m}{\hbar^2}(E - Vo)\psi = 0$
| Symbol | Description |
|---|---|
| ℏ | Reduced Planck constant (h/2π) |
| m | Mass of the particle |
| E | Energy eigenvalues (Particle Energy) |
| Ψ(x) | Wavefunction of the particle |
| V₀ | Height of the potential barrier |
| L | Width of the potential barrier |
3. Transmission Coefficient

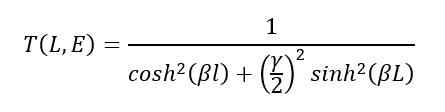

The transmission coefficient T(L, E) represents the probability of a particle tunnelling through a potential barrier of width L and total energy E. It is given by the formula:
$$ T = \left[ 1 + \frac{V_0^2 \sinh^2(\kappa a)}{4E(V_0 - E)} \right]^{-1} $$
Where
$$ \kappa = \sqrt{\frac{2m(V_0 - E)}{\hbar^2}} $$
Exact Formula (E < Vo):
$$ T = \frac{1}{1 + \frac{V_0^2}{4E(V_0 - E)} \sinh^2\left( \frac{\sqrt{2m(V_0 - E)}}{\hbar} L \right)} $$
For Thick/high Barrier Approximation (T<<1):
$$ T \approx e^{-2\kappa L} $$
or
$$ T \approx e^{-2 \frac{\sqrt{2m(V_0 - E)}}{\hbar} L} $$
For Low/Thin Barrier Approximation (E -> Vo):
$$ T \approx \frac{1}{1 + \frac{V_0^2}{4E(V_0 - E)} \left( \frac{\sqrt{2m(V_0 - E)}}{\hbar} L \right)^2} $$
Simulation Parameters
| Parameter | Symbol | Description | Range in Simulation |
|---|---|---|---|
| Particle Energy | E | Energy of the incoming quantum particle | 0 to 0.100 |
| Barrier Height | V₀ | Height of the potential energy barrier | -0.1 to 0.1 |
| Barrier Width | L | Width of the potential barrier | 0 to 51 units |
| Ramp Gradient | - | Smoothness of barrier edges | 0 to 50 |
Learning Scenarios
| Scenario | Configuration | Expected Observation |
|---|---|---|
| 🟢 Easy Tunnel | High E, Low V₀ | High transmission probability - most wave passes through |
| 🟡 Balanced | E ≈ V₀ | Partial tunnelling - wave splits into reflected and transmitted parts |
| 🔴 Hard Tunnel | Low E, High V₀ | Very low transmission - most wave is reflected |
| 📚 Classical | E > V₀ | Energy exceeds barrier - observe quantum effects |
| 📏 Wide Barrier | Large L | Transmission decreases exponentially with width (T ∝ e^(-2κL)) |
| 📶 Step Potential | Width = ∞ | Wave reflection at discontinuity - no classical analogue |
Key Observations
- Transmission Coefficient decreases exponentially as barrier width (L) increases
- Higher particle energy (E) leads to greater tunnelling probability
- When E < V₀, tunnelling still occurs (purely quantum phenomenon)
- When E > V₀, classical physics allows passage, but quantum effects still appear
- The wavefunction decays exponentially inside the barrier region
Real-World Applications of Quantum Tunnelling
- Radioactive Alpha Decay: Alpha particles tunnel through nuclear potential barrier
- Scanning Tunnelling Microscope (STM): Uses tunnelling current to image surfaces
- Tunnel Diodes: Electronic components using quantum tunnelling
- Nuclear Fusion in Stars: Particles tunnel through Coulomb barrier
- Wave guide couplers: Fiber and integrated optic directional couplers and prism couplers
