Determination of Precise Lattice Parameter of FCC and BCC phases using X-ray diffraction

Step 1: Select the preferred language (English or Hindi) from the language selection option.

Step 2: Click on the ON button to switch on the machine.

Step 3: Once the machine is turned on, click on the OFF button to stop the machine if required; otherwise, select the specimen.

Step 4: Click on the OPEN button to open the chamber.

Step 5: Click on the CLOSE button to close the chamber.

Step 6: Click on the STANDBY/ON button and set the required voltage and current.

Step 7: Set the start angle and end angle, then specify the step size and scan rate.

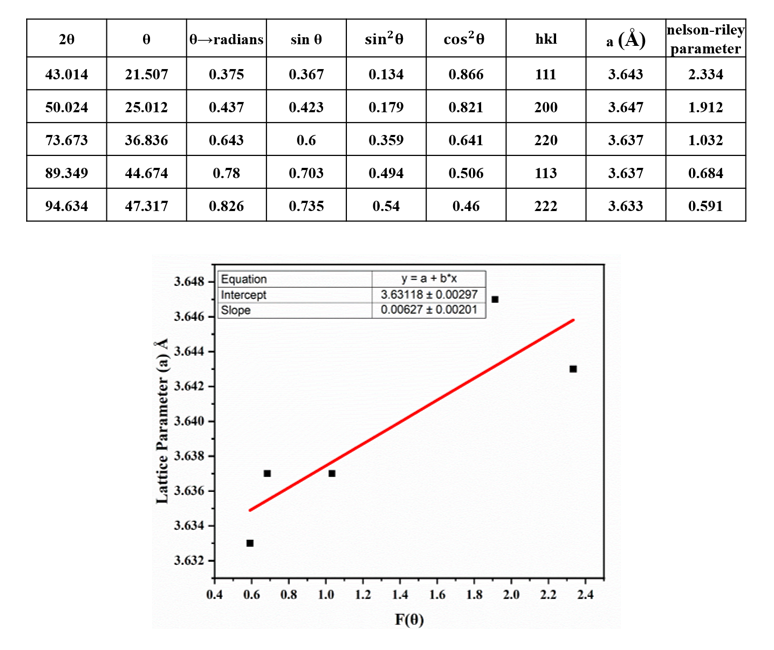

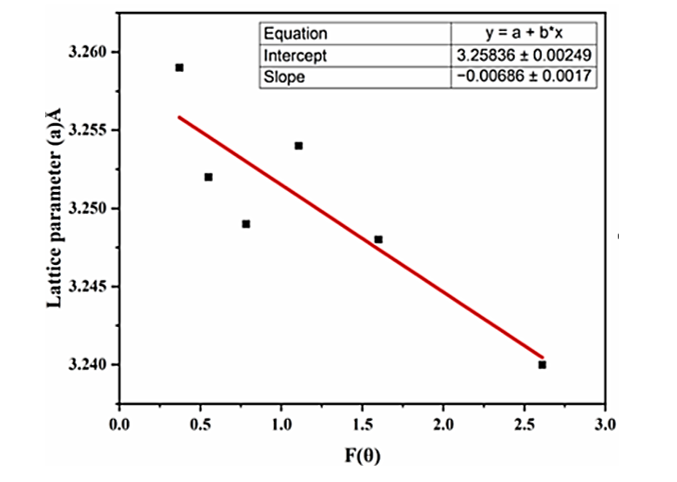

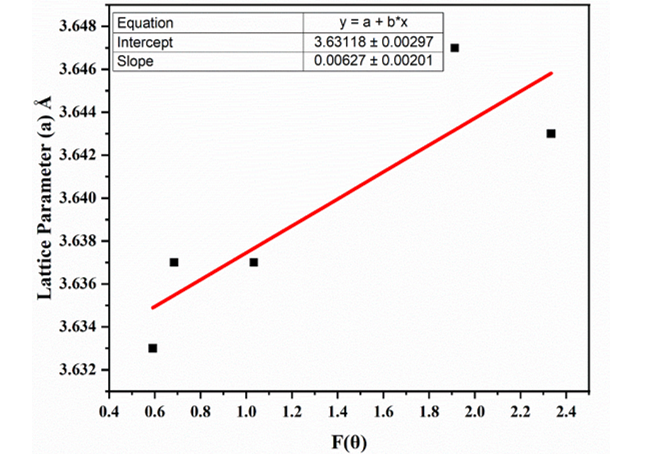

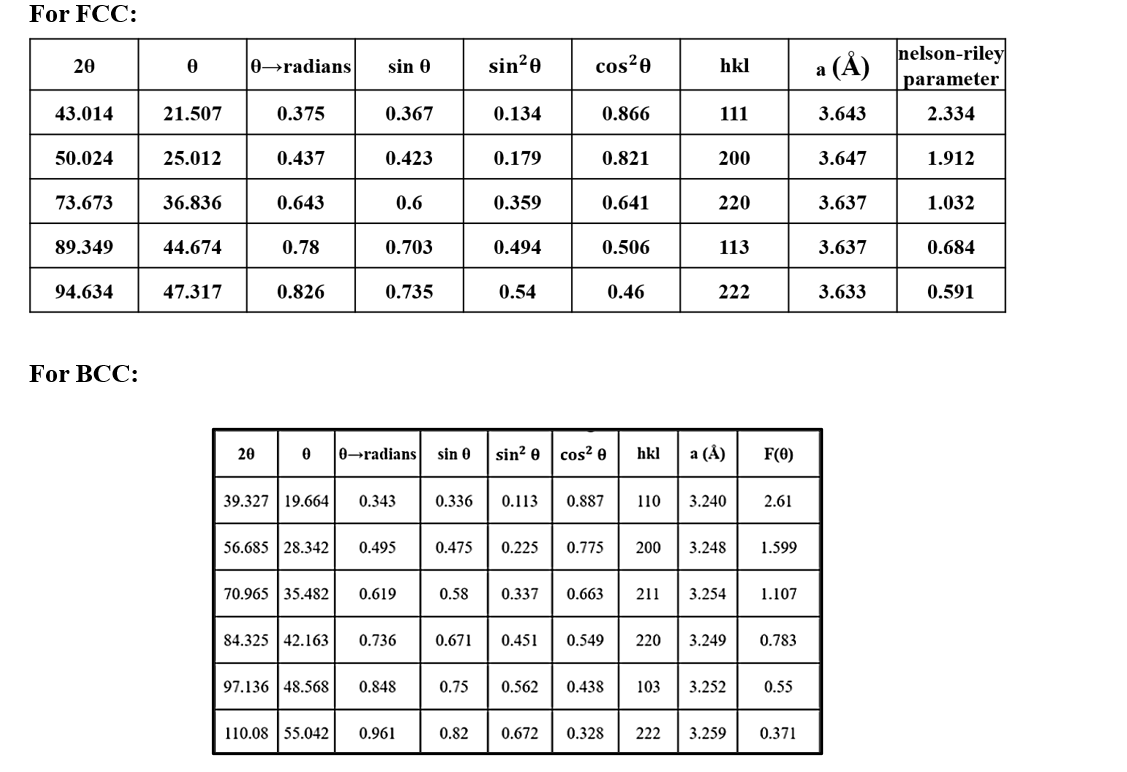

Step 8: Click on the START SCAN button and observe the generated graph and observation table.
