Apparatus required :

Conductivity meter.

Procedure :

1. Standardise the NaOH stock solution and note down its concentration.
2. Calculate the concentration of ethyl acetate in stock solution
3. Fill the reservoirs with NaOH and ethyl acetate stock solutions
4. Measure the volume of the reactor.
5. Switch on the pump and allow ethyl acetate to flow into the reactor at certain flowrate and measure the flowrate( V_A ) using rotameter.
6. Set the required temperature to be maintained in the reactor. Switch on the heater to heat the reactor contents to the required temperature .
7. Calculate the flowrate of NaOH( V_B ) required to keep the desired value of M (M = C_BO/C_AO) . M may be greater than or equal to one. Calculate the total flowrate (Q).
8. Adjust the flowrate of NaOH to the calculated value, without changing the EA flowrate.
9. Calculate the actual value of M obtained after adjusting the flowrates.
10. Calculate the space time using the total flow rate.
11. Start the stirrer in the reactor. Close the drain valve completely. Allow the reaction to proceed till steady state is attained, as indicated by constant reading in the conductivity meter.
12. Note down the conductivity (in mS/cm) of the reaction mixture in, after steady state is attained. Note: Some conductivity meters may display conductance (mS) not the conductivity(mS/cm) [Refer theory for more information].
13. Determine the concentration of unreacted NaOH in the reaction mixture by using the conductivity meter calibration equation.
14. Repeat steps (6) to (12) for different EA flowrates.
15. Conduct the experiment at different temperatures

Observations and calculations :

A = Ethyl acetate
B = NaOH
Strength of Ethyl acetate in stock = C_AS = ------------------------ gmol/L

Strength of NaOH in stock solution = C_BS = ------------------------ gmol/L

Diameter of the reaction vessel, d = -----------------------cm

Height of the vessel upto reactor outlet, h = -----------------------cm

V = volume of teh reactor== = -----------------------cm³
= L

Calculations :

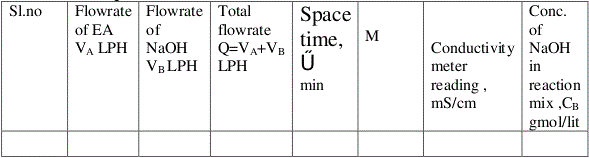

Ethyl acetate flow rate = V_A = ------------------------------LPH
V_B/V_A = M(C_AS/C_BS) Flow rate of NaOH required to keep the desired M ,
Flow rate of NaOH set, = LPH Total flow rate Q= V_A+V_B = Space time , = V/Q = min Actual value of M(obtained in the experiment) =
= Initial concentartion of ethyl acetate in the feed mixture,

C_Ao = --------------------gmol/L
Concentartion of NaOH in the feed mixture,
C_Bo = (V_B*C_BS)/Q C_Bo = --------------------gmol/L
As the conductivity meter calibration is available only at 28°C, the conductivity meter reading obtained at a given temperature of reaction is to be corrected for 28°C.
Temperature compensation for conductivity meter

Where ,
Y_T =conductivity meter reading at any temperature T in mS/cm,

Y₂₈ = conductivity meter reading at a temperature of 28°C in mS/cm,
Obtain Y₂₈ corresponding to measured conductivity meter reading ( Y_T) using the equation above.
Conductivity meter is calibrated for concentrations of NaOH in the reaction mixture at a temperature of 28°C. Obtain the Concentration of NaOH at 28°C using the calibration equation given below
Conductivity meter calibration equation for 28°C.

Where,

C_B = Concentration of NaOH in the reaction mixture at steady state
Y₂₈ = Conductivity meter reading for solution, corrected for 28°C
Concentration of unreacted NaOH in the reaction mixture at steady state,
C_B=         gmol/L (obtained from the conductivity meter calibration graph)

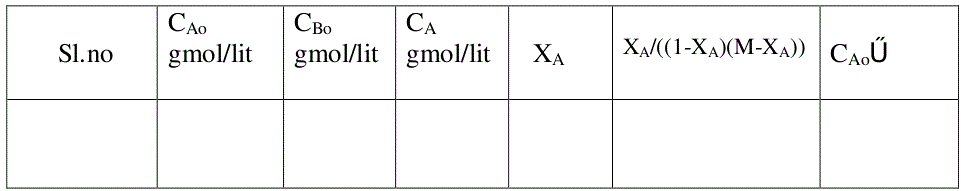

Concentration of ethyl acetate in the reaction mixture at steady state,

C_A = --------------------gmol/L
Conversion of ethyl acetate,

Performance equation for MFR with rate equation of the form
can be written as = ( ) (B) for MFR

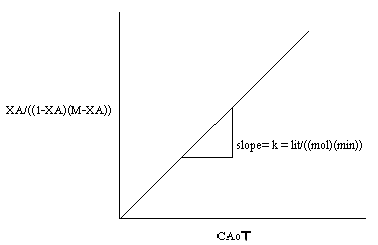

Plotting ( ) vs yields a straight line passing through origin. The slope=k. The equation holds good for M=1 or greater than 1. Plot a graph of Vs  C_AoT

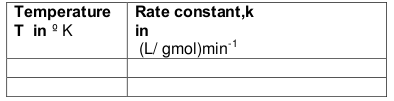

From the graph get, k = -------------------------------litre/((gmol)(min)) Similarly the experiment may be performed with different temperatures and the rate constants at these temperatures may be determined. Obtain the rate constant at three or more different temperatures.

From Arrhenius Equation,

Plot lnk vs 1/T
Determine the activation energy (E) and the frequency factor (ko) from the slope and
intercept of the above plot.
Intercept= lnk0
Slope=-E/R
R is the gas constant
Frequency factor , ko=min^-1(litre / gmol)
Activation energy= E=J/mol

Results :

The rate constant for the saponification of Ethy acetate with NaOH at a temp of ToC, k = -------------------------------litre/((mol)(min)) Discuss and conclude on the temperature dependency of rate constant. The activation energy (E) for the reaction=J/mol
The frequency factor (ko)=min^-1(litre / gmol)
