Procedure

• To draw any diagram in the simulator please follow the manual given in manual section.
• In theory section we have simplified eq1: AB+A(B+C)+B(B+C) into eq2: B+AC.
• Let’s design both the Boolean Expressions in the simulator and test as below.
• Step1. We need a three input ‘OR’ gate which is not available in the simulator. So we have to first make a 3 input ‘OR’ gate with the basic gates available.

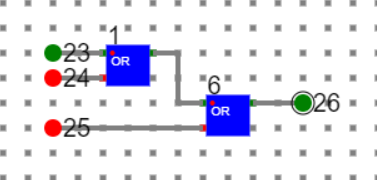

• Above circuit is a 3 input ‘OR’ design with 2 basic ‘OR’ gates.

• Let’s save it as a component with some name say ‘3IN-OR’

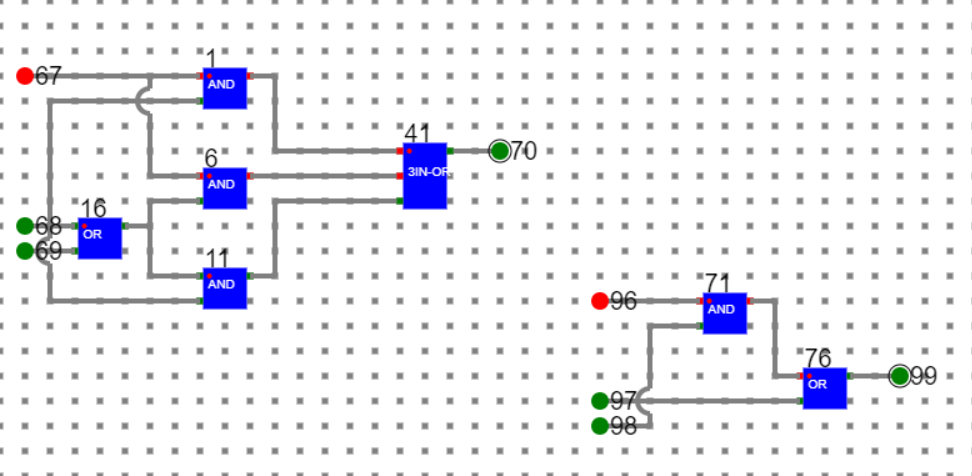

• Step2. Now design eq1 and eq2 as shown below.

  • Eq1 has been designed with the help of basic 2 input ‘AND’, 2 input ‘OR’ and the 3 input ‘OR’ gate developed in step 1.
  • Eq2 has been designed with the help of basic 2 input ‘AND’ and 2 input ‘OR’ gate.

where

67, 96: A

68, 97: B

69, 98: C

70, 99: Output

• Both circuits give the same output for same combination of inputs.

Manual

• Follow the below manual and perform the experiment
  • Manual --> Click Here
