Darcy’s Law:

Darcy showed experimentally that the rate of flow of water flowing through a soil medium of unit cross sectional area is directly proportional to the imposed hydraulic gradient.

q = Rate of flow of water
A = Cross sectional area of soil
i = Hydraulic gradient

Therefore, the rate of flow of water divided by cross sectional area is directly proportional to hydraulic gradient.

To take out the proportionality from the equation, a constant is inserted into the equation which is called ‘Darcy’s coefficient of permeability’ or ‘coefficient of permeability’ or ‘ permeability’.

q = kiA

Therefore permeability can be defined as the property of soil which indicates the ease through which the water will flow / percolate through the continuously linked pore spaces of the soil.

Permeability can also be defined as the ratio between rate of flow of water to that of the product of cross sectional area and hydraulic gradient.

The major factors on which permeability depends are the grain size of the soil particles, the properties of the pore fluid, the void ratio of soil, the shapes and arrangement of pores and the degree of saturation.

In laboratory, permeability of soil is found by any of the following two experiments:

Constant head permeability

In this experiment, a constant head of water is maintained in the overhead tank so that the pressure of water remains constant at all times. This experiment is usually carried out for coarse grained soils where the permeability of the soils are higher.

Variable head permeability

In this experiment, a stand pipe is connected to the permeameter which supplies the water. This experiment is usually carried out for fine grained soils or cohesive soils where the permeability of water is very low.

Type of soil	Permeability (cm/s)
Gravel	1
Coarse sand	1 to 0.1
Medium sand	10-1 to 10-2
Fine sand	10-2 to 10-3
Silty sand	10-3 to 10-4
Silt	10-5
Clay	10-7 to 10-9

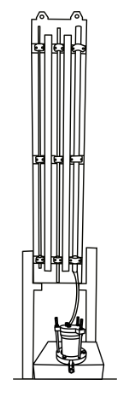

Falling Head Permeability

Falling head permeability test is a common laboratory testing method to find out the permeability of fine grained soils like silt and clay with little or no granular content.

In this method the time taken by the soil sample to percolate a fixed length of water in the stand pipe is calculated.

Formula to calculate permeability in constant head permeability test

k = Coefficient of permeability

Q = Total quantity of water collected in time t

l = Length of the sample

t = Duration of water collected
