Registration & Security Policies

Configure Security Policies

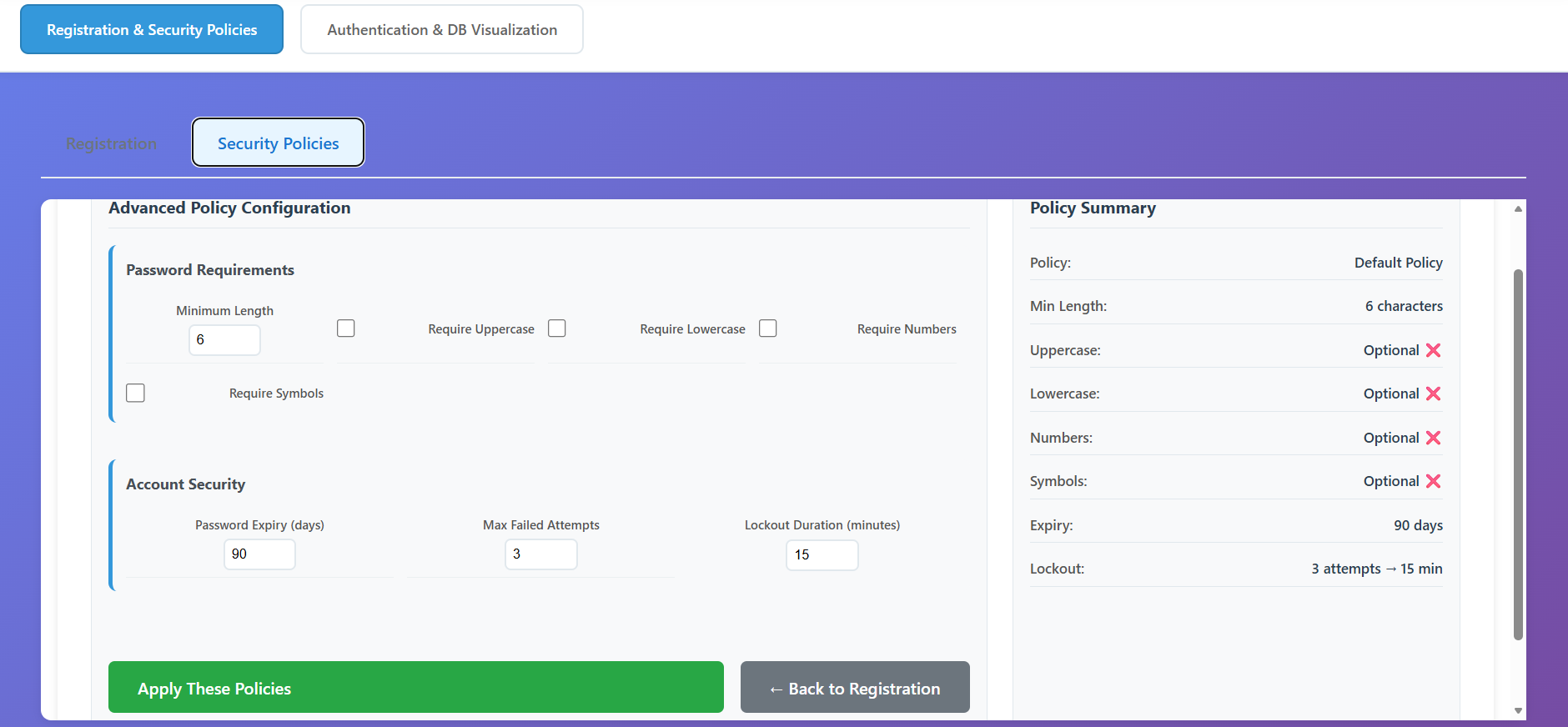

1. Navigate to the Registration & Security Policies tab.



2. Click View Advanced Policies to see the detailed configuration.



3. Set minimum password length, required characters (uppercase, numbers, etc.), and account lockout rules (e.g., 3 attempts) then on Click Apply These Policies to update the system rules.

Register a New User

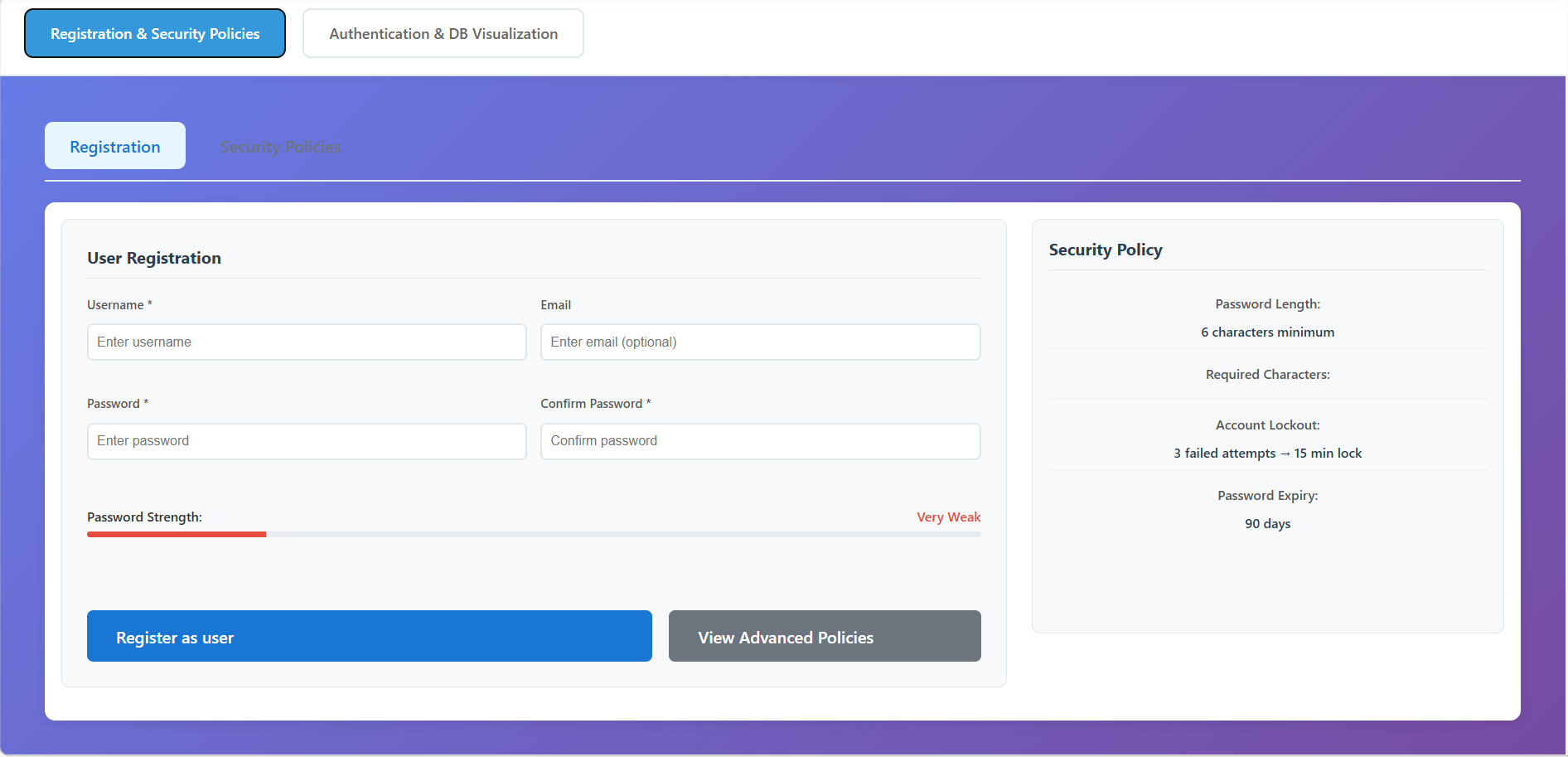

• Return to the Registration sub-tab.
• Username: Enter a unique name for your account.
• Email: Provide an optional email address.

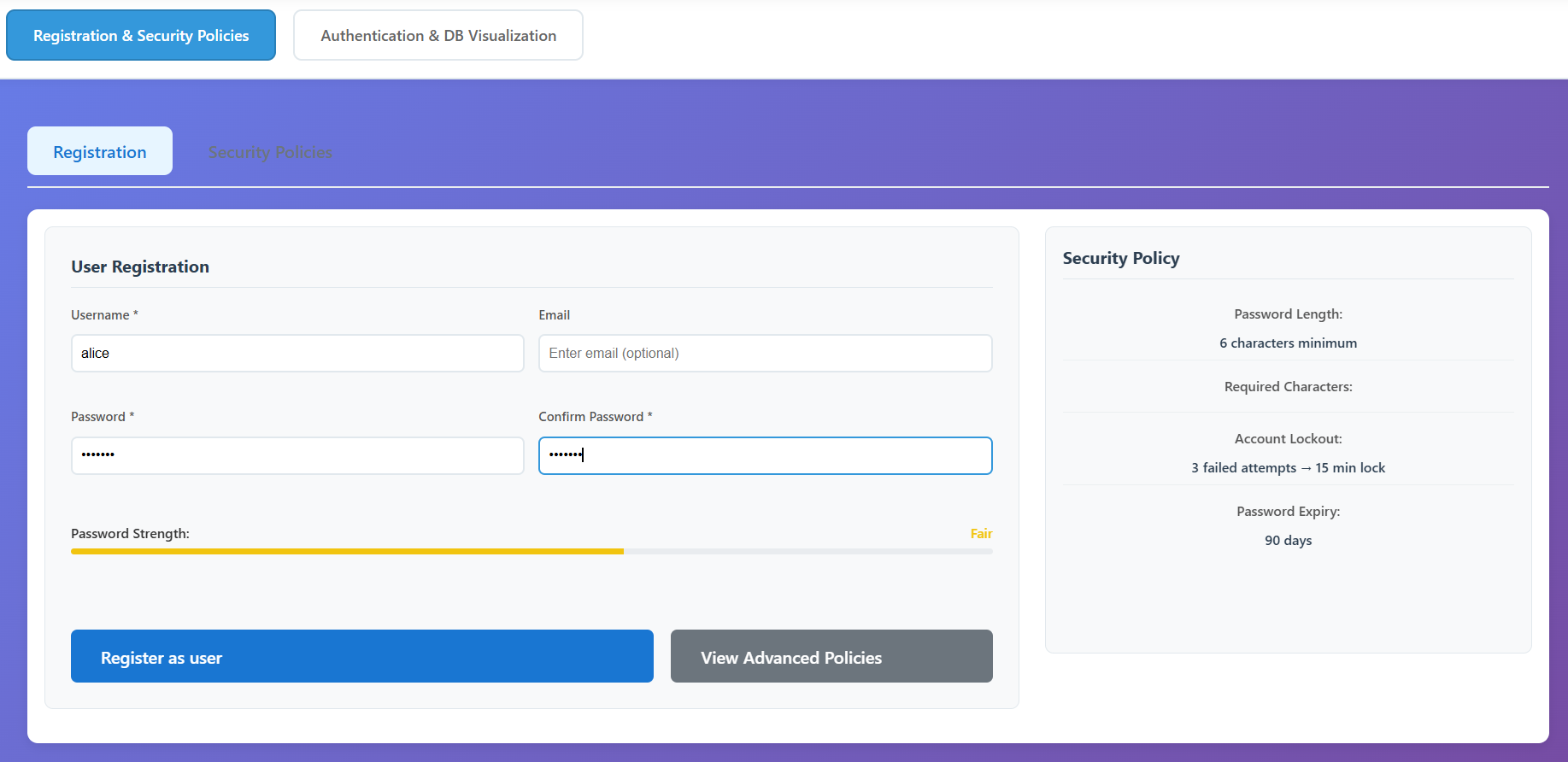

• Password: Type a password while monitoring the Password Strength meter. It must match the current security policies.
• Verification: Re-type the password in the Confirm Password field.
• Click Register as user. You will see a success message if the inputs are valid.

Authentication & DB Visualization

Start the Authentication Simulation and Observe the Verification Steps

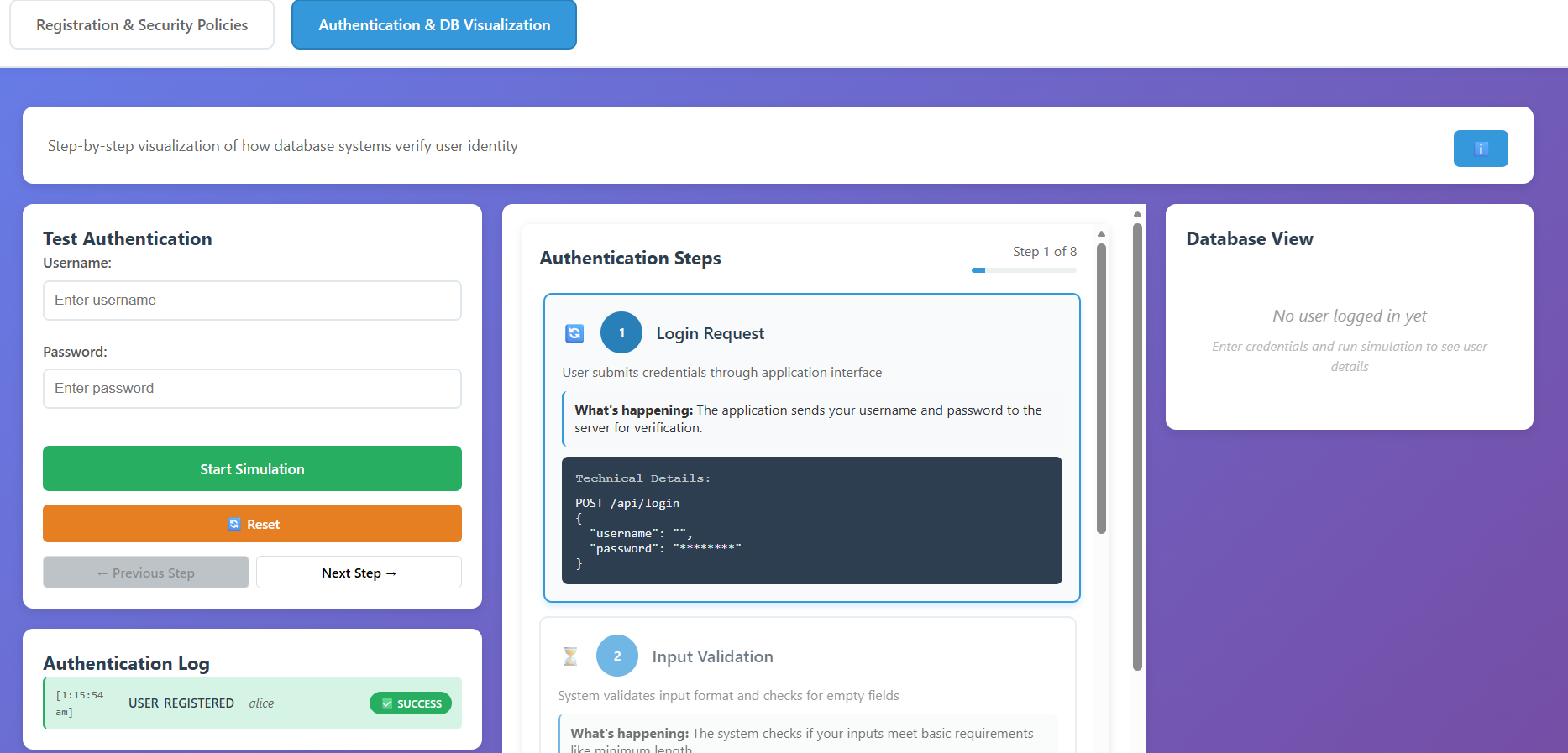

• Switch to the Authentication & DB Visualization tab.

1. Login Request: User credentials are submitted to the server.
2. Input Validation: The system checks for empty fields or invalid formats.
3. User Lookup: A database query (SELECT) is run to find the user.
4. Status Check: Verifies if the account is active or locked.
5. Password Hashing: The entered plaintext password is hashed (SHA-256).
6. Password Verification: The new hash is compared against the stored hash.
7. Session Creation: On success, a secure session token is generated.
8. Access Granted: The user is redirected to the dashboard.


• Successful Login: Enter the correct credentials for your registered user and observe the access being granted.


Test Failure Scenarios

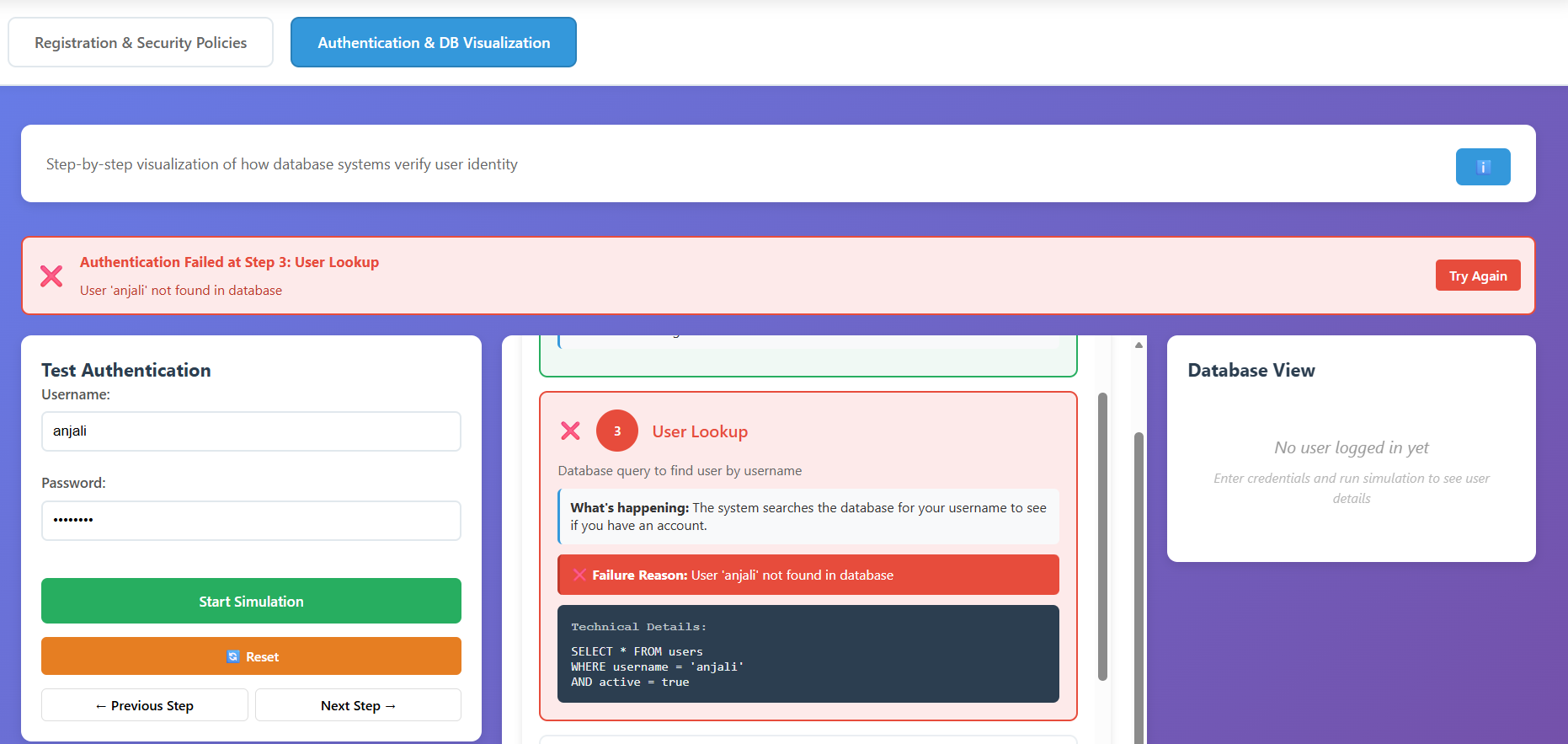

• Non-Existent User: Enter a username that hasn't been registered. Observe the failure at Step 3 (User Lookup).

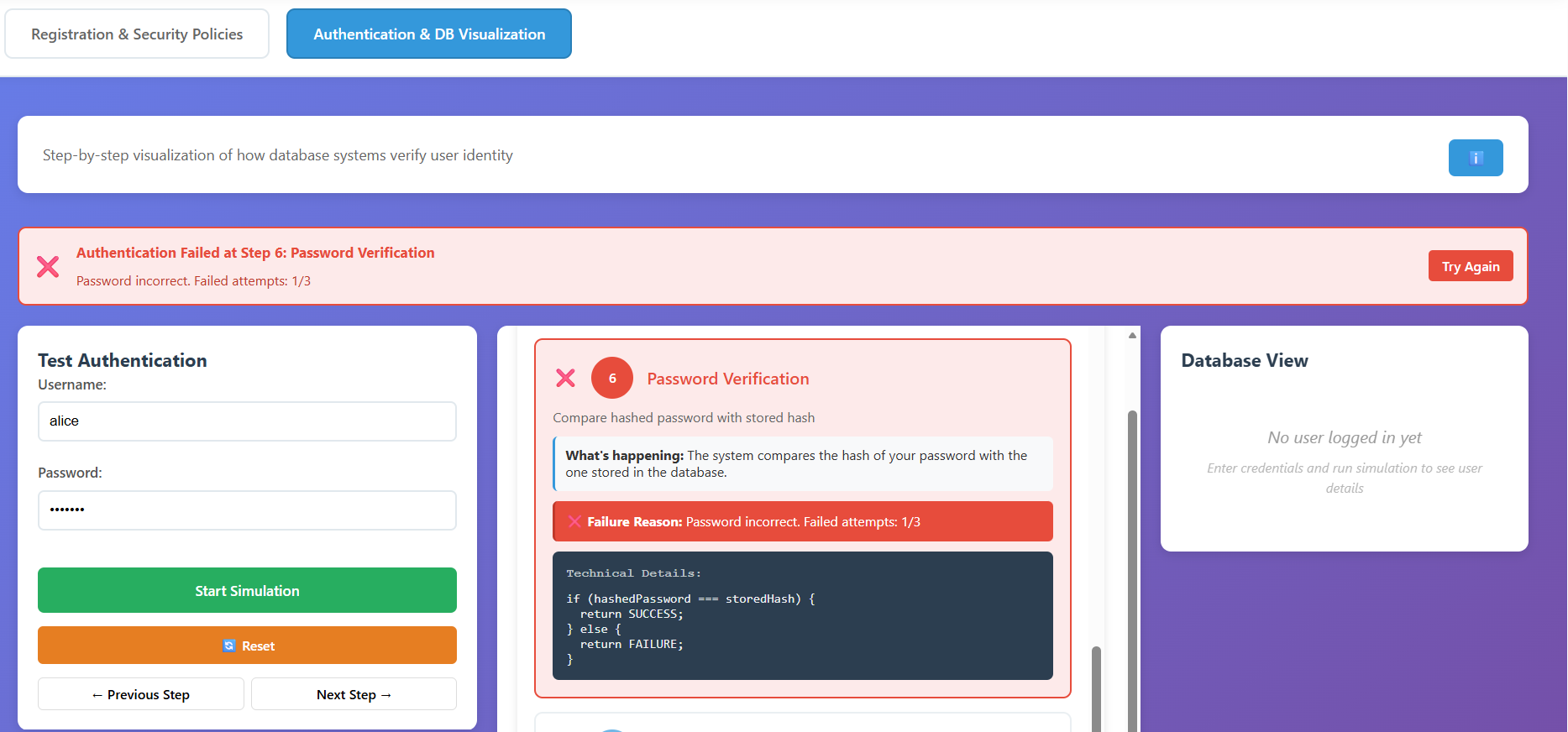

• Incorrect Password: Use a valid username but the wrong password. Observe the failure at Step 6 (Password Verification) and note the Failed Attempts counter increasing in the logs.

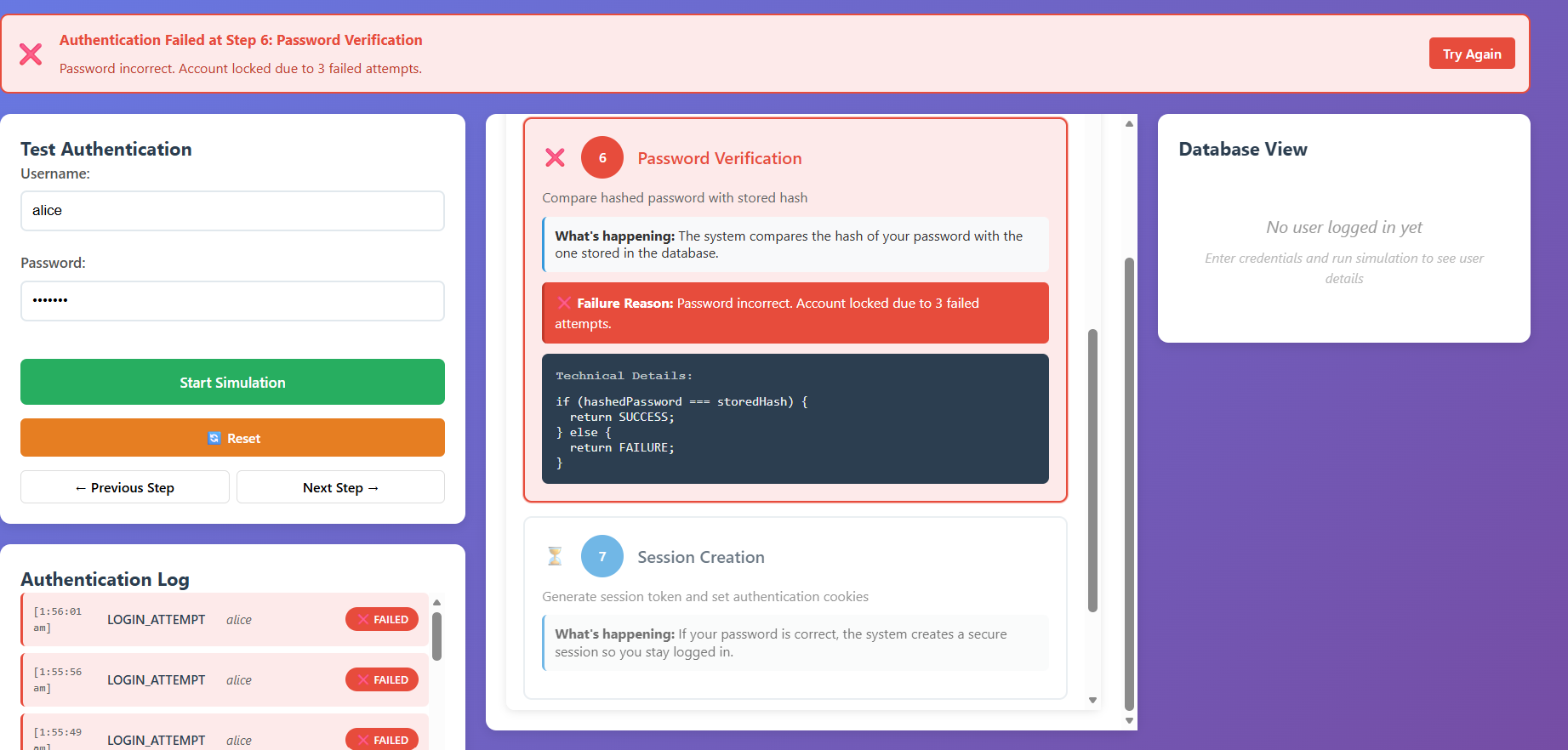

• Account locked: Repeat incorrect logins until the maximum attempts are reached (e.g., 3). Verify that the account status changes to Locked.
