Step 1: Preparation of sample

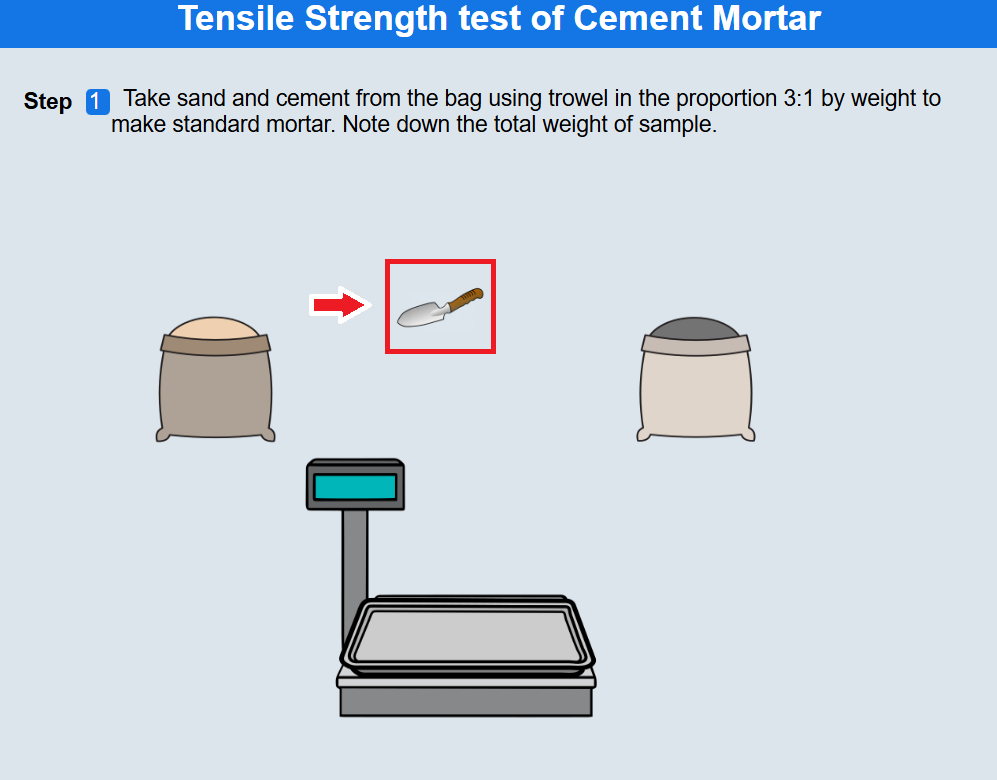

• Click on the trowel to take the sand and cement in the ratio 3:1 by weight to make standard mortar.

• Click on Next to proceed.

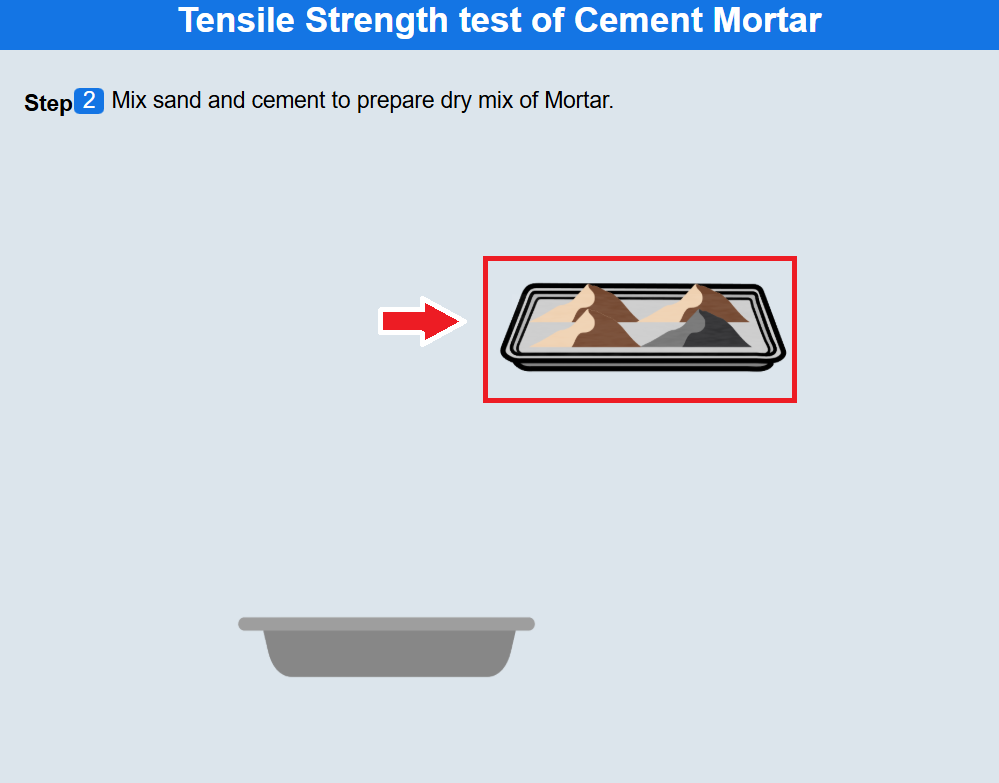

Step 2: Preparation of sand and cement mixture.

• Click on the tray to pour it in the vessel and mix it.

• Click on Next to proceed.

Step 3: Preparation of mortar mix

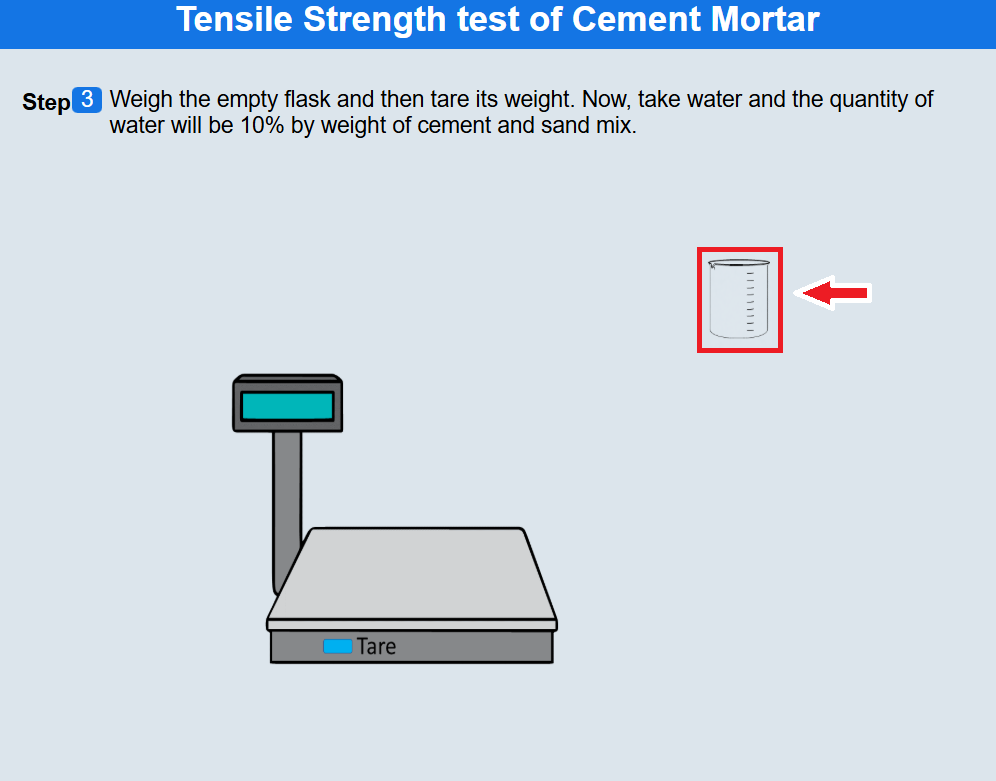

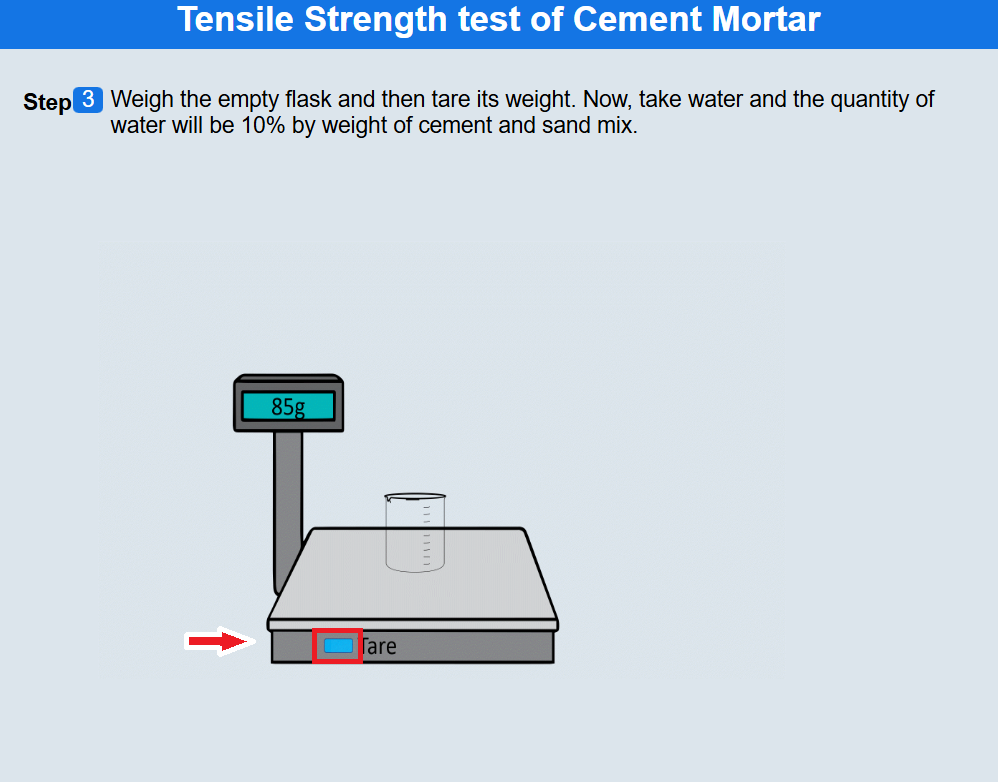

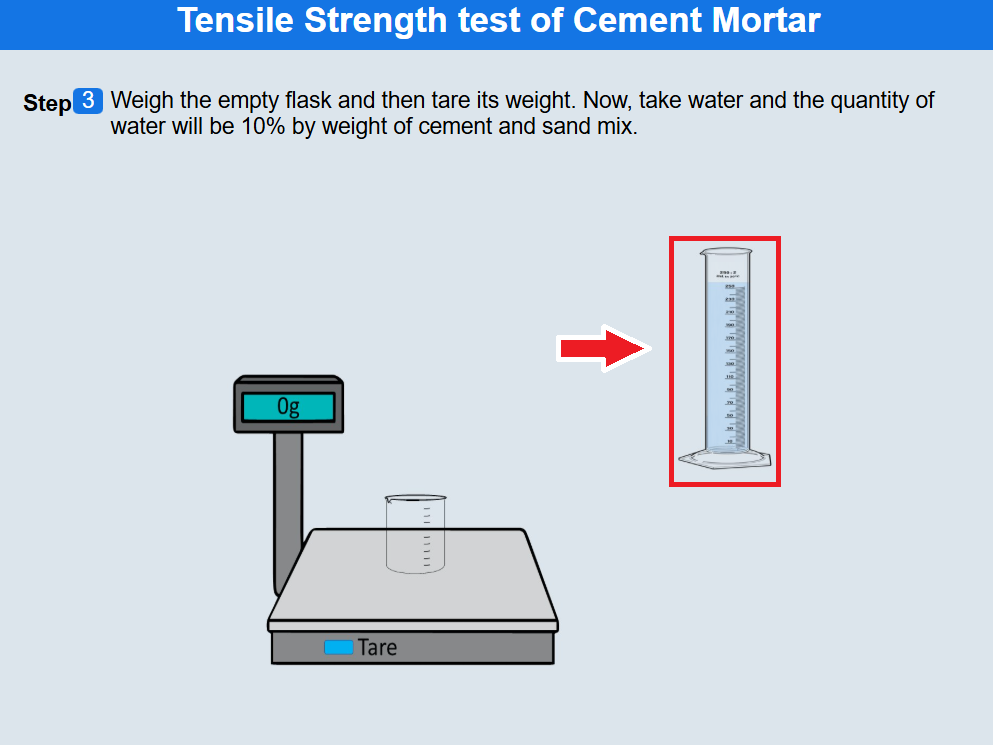

• Weigh the empty flask by clicking on the beaker.

• Click on the tare button to set the weight to zero.

• Click on the measuring cylinder to measure the quantity of water that is 10% by weight of cement and sand mix.

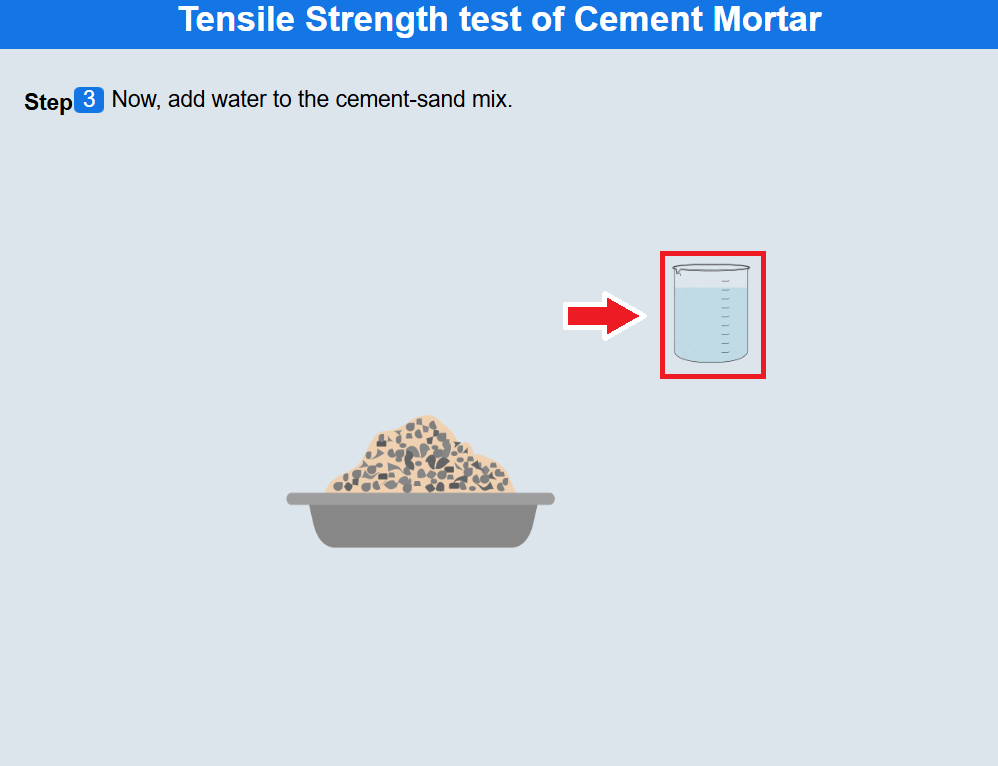

• Click on the beaker to add water to the cement-sand mix.

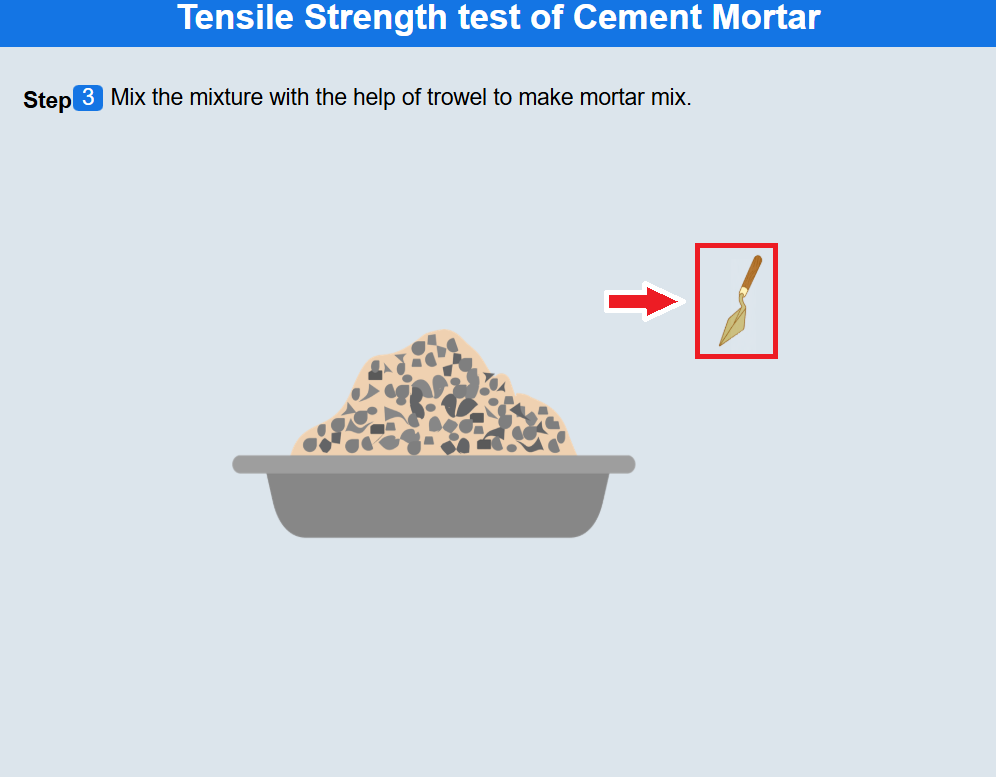

• Click on the trowel to prepare the mortar mix.

• Click on Next to proceed.

Step 4: Preparation of mould

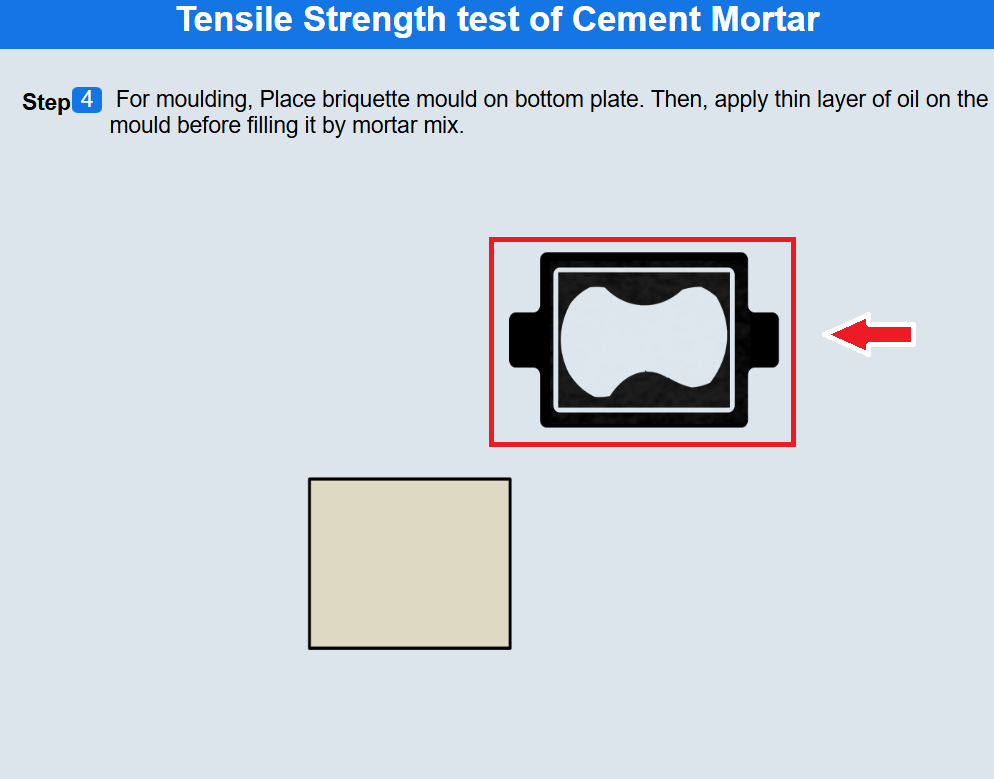

• Click on the briquette mould to place it on bottom plate.

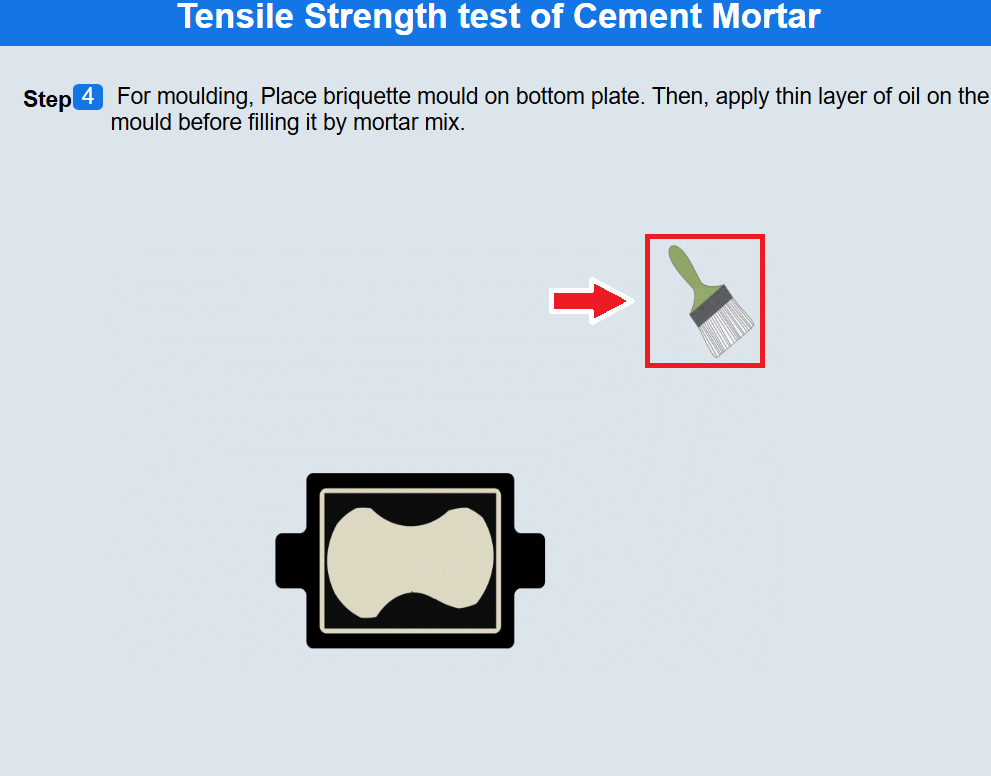

• Click on the brush to apply thin layer of oil.

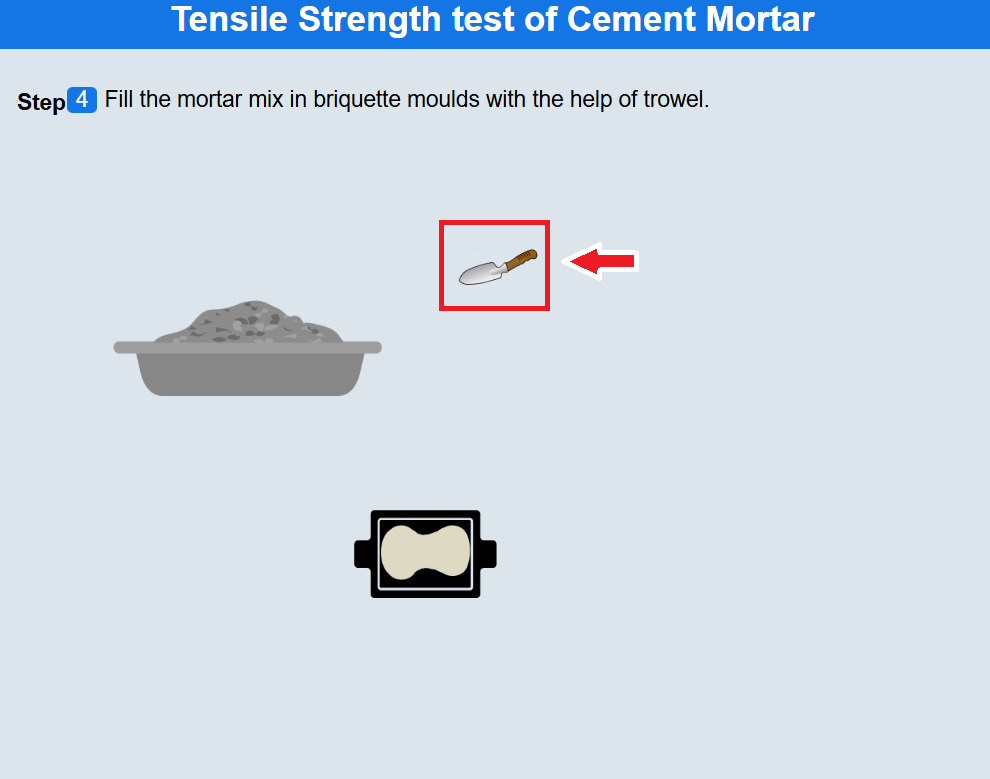

• Click on the trowel and fill the mortar mix in briquette moulds.

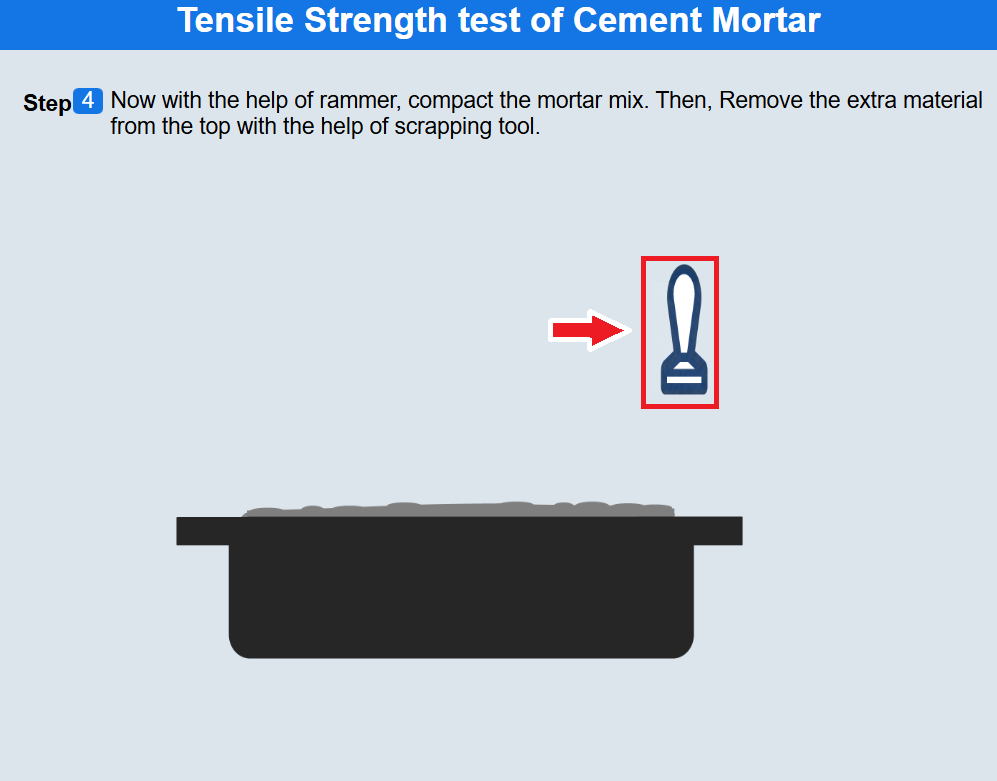

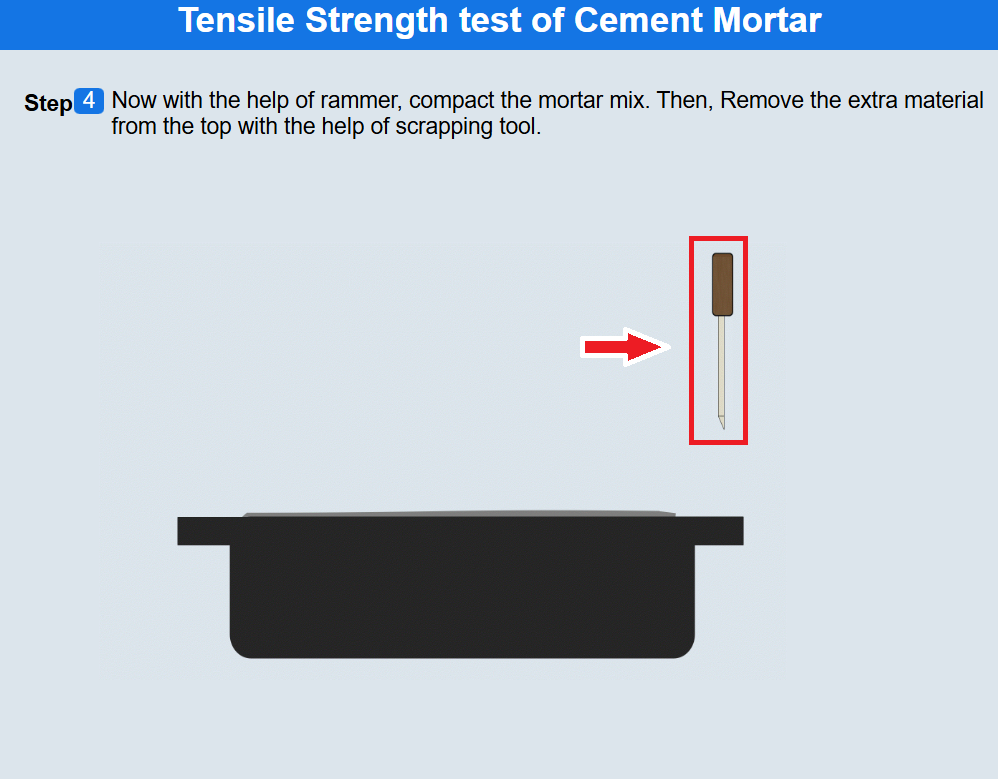

• Click on the rammer to compact the mortar mix.

• Click on the scrapping tool and remove the extra material from the top of the mould.

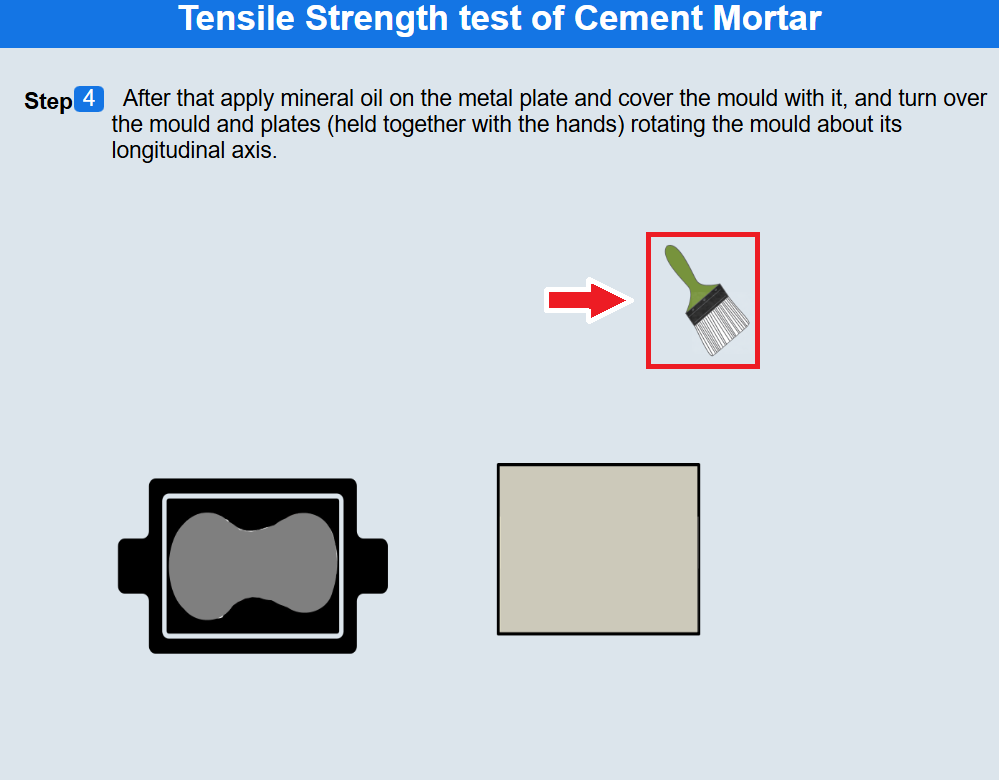

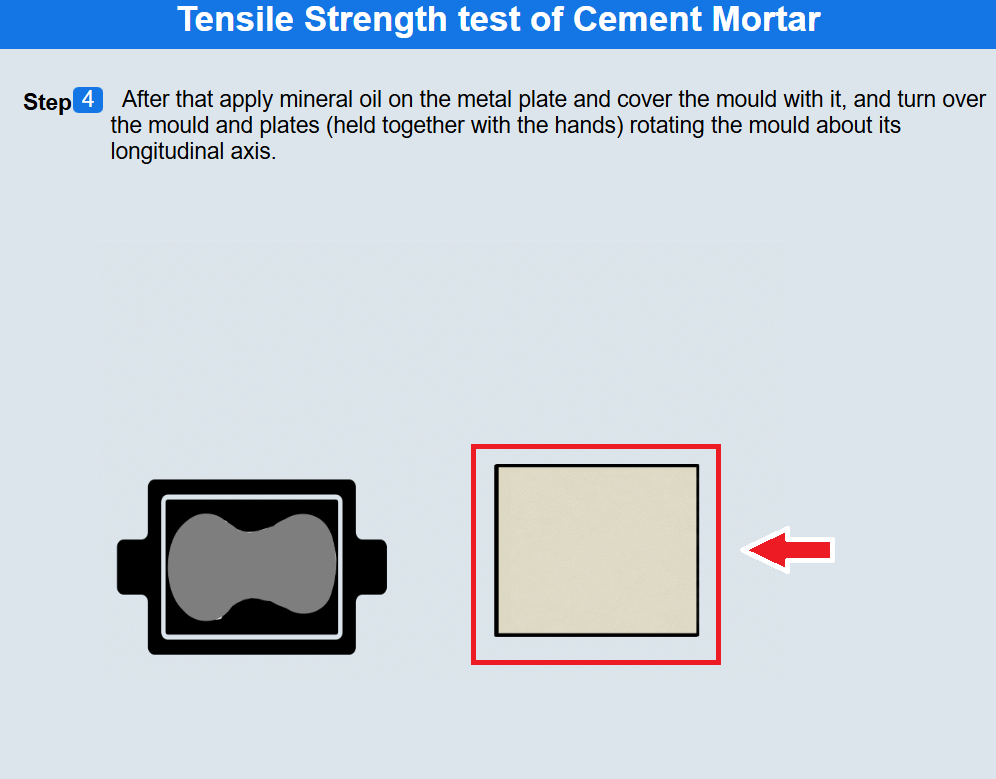

• Click on the brush to apply mineral oil on the metal plate.

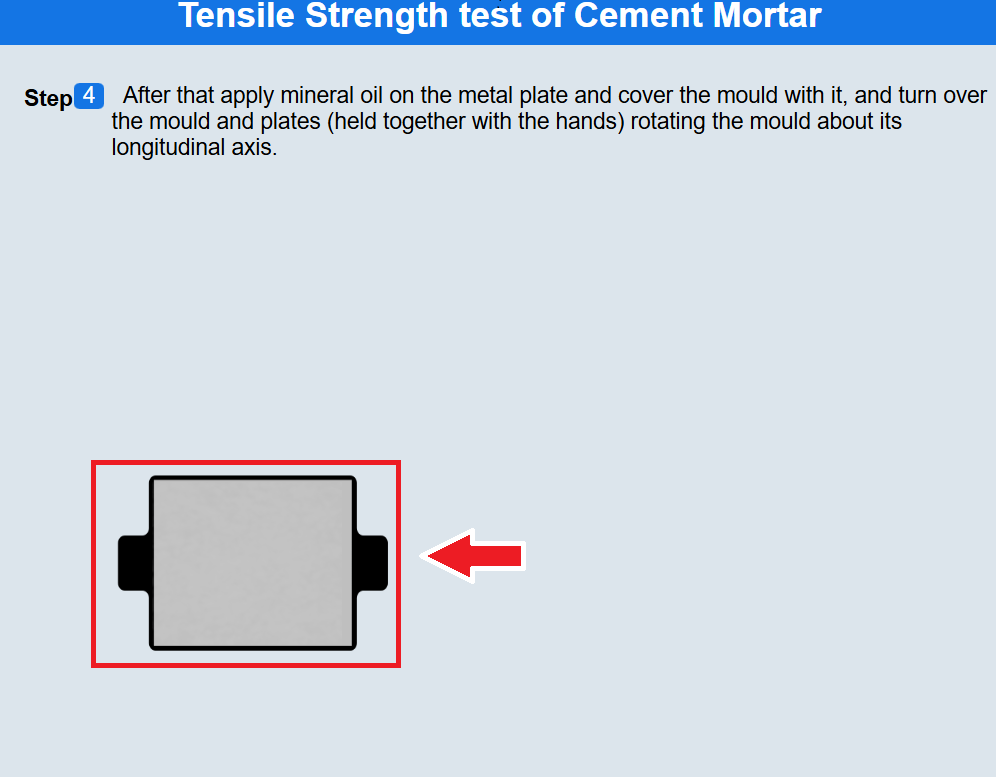

• Click on the metal plate to cover the mould with it.

• Click on the mould to rotate the mould about its longitudnal axis.

• Click on Next to proceed.

Step 5: Preparation of briquette for testing

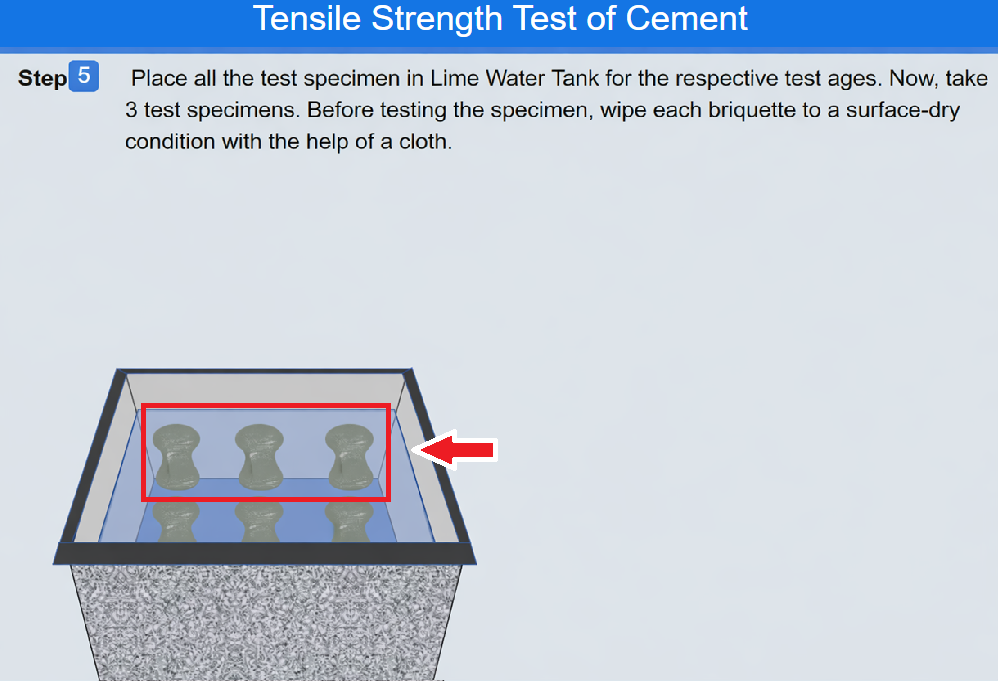

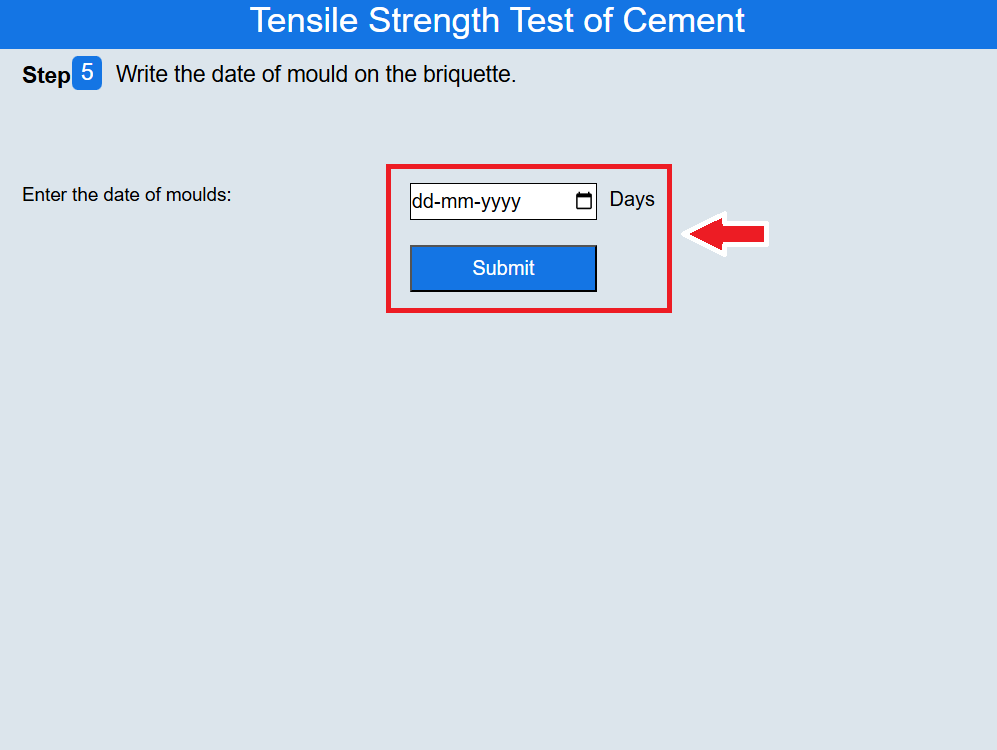

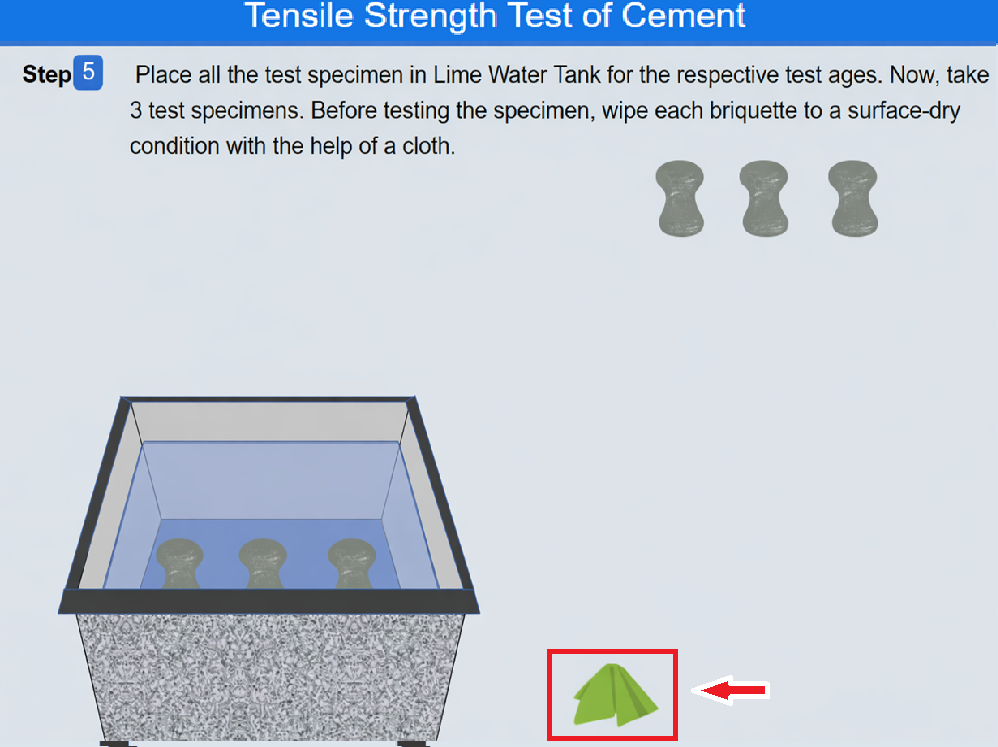

• Enter the date of mould on the briquette and click on submit. Place all the test specimen in the Lime Water Tank for the respective ages.

• Take out three specimens from the Lime Water Tank one by one by clicking on them.

• Click on the cloth to wipe the briquettes to a surface dry condition.

• Click on Next to proceed.

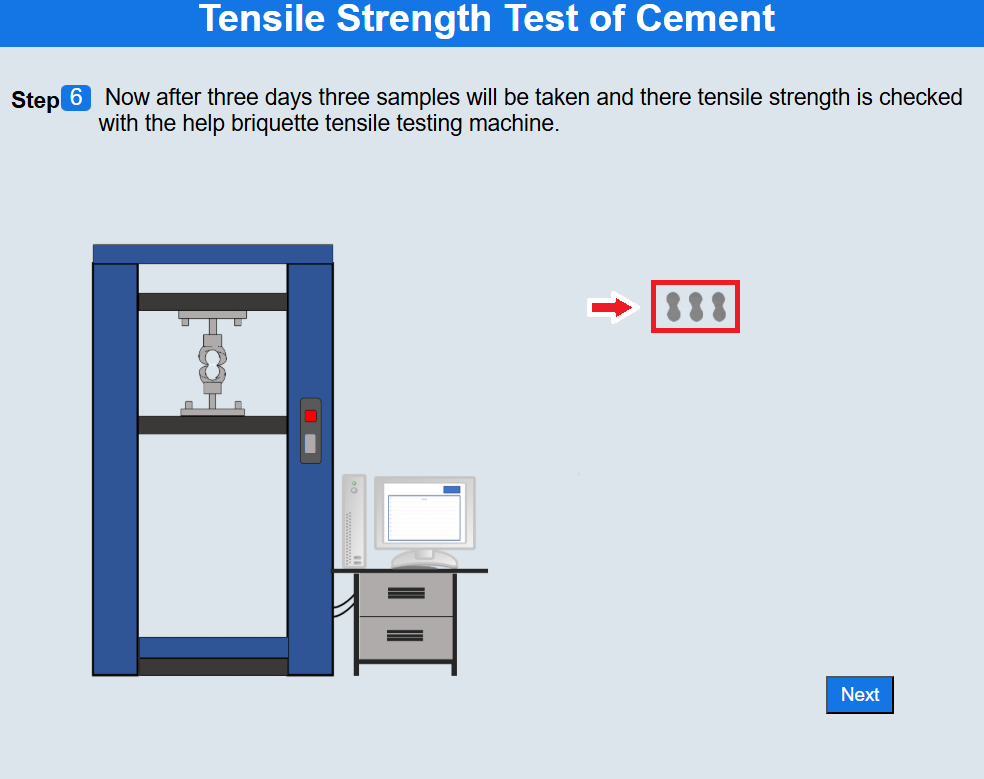

Step 6: Tensile strength testing

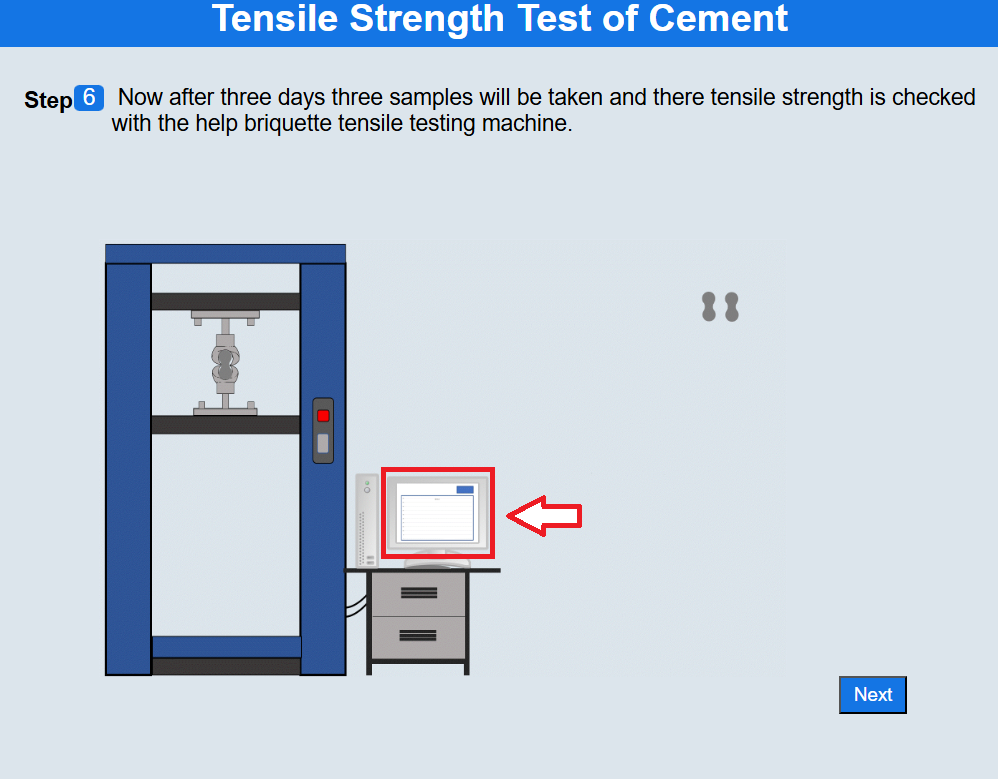

• Now , click on the sample to place them on the briquette tensile testing machine.

• Click on the monitor to input the amount of strength to be used by the machine.

• Similarly repeat the procedure with test specimen 2 and 3.
• Click on Show Result for the results.
