These steps will be followed for the experiment

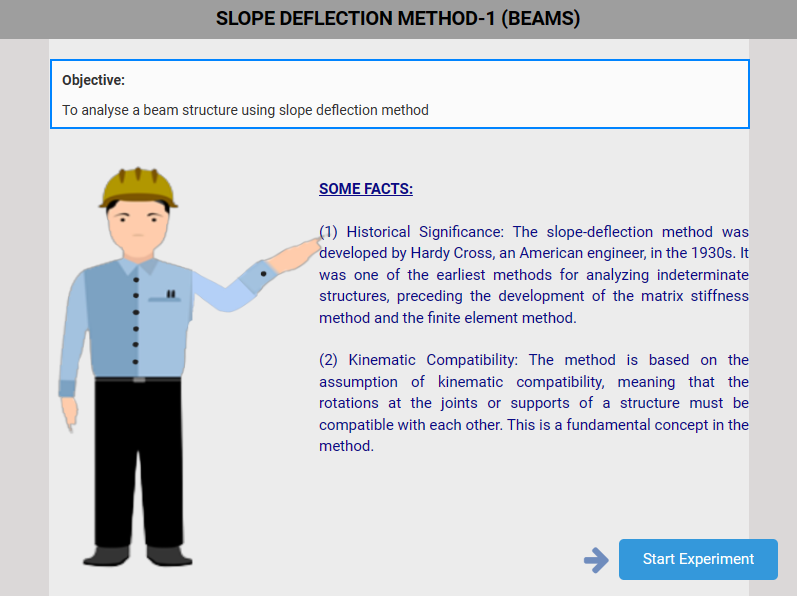

1. Click on start experiment button to start the experiment.

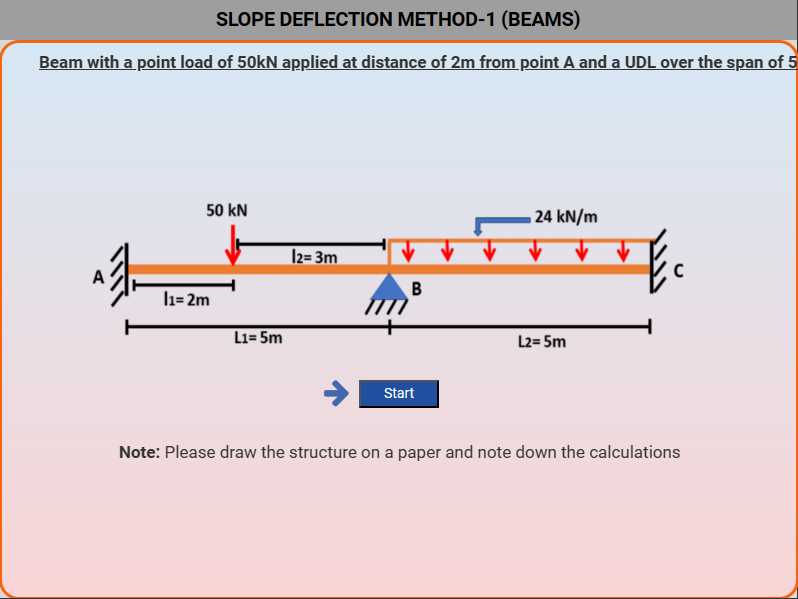

(a) Click on 'start' button to start analysis.

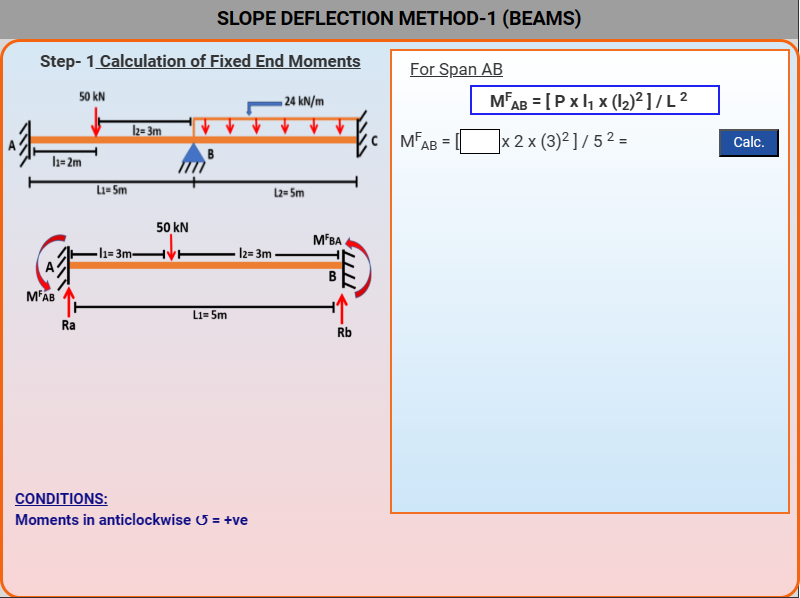

Step-1: Calculation of fixed end moments.

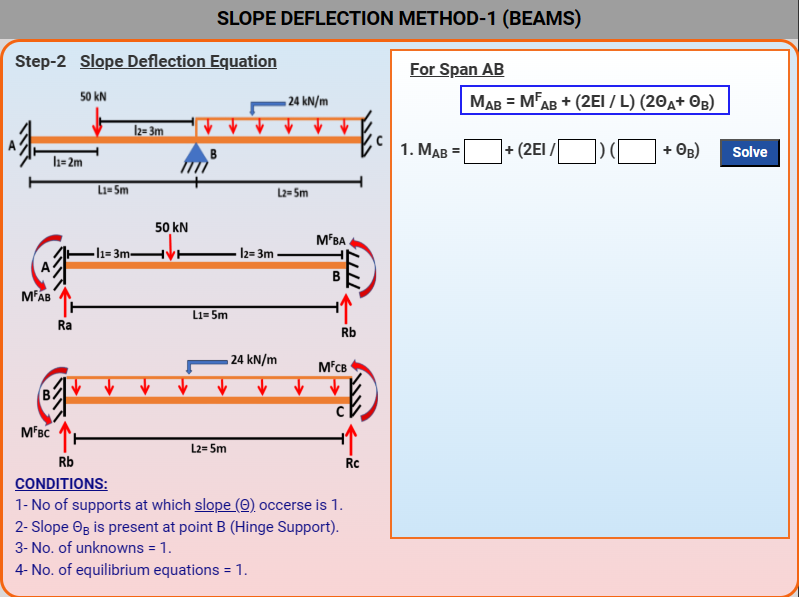

Step-2: Calculation of slope deflections equations.

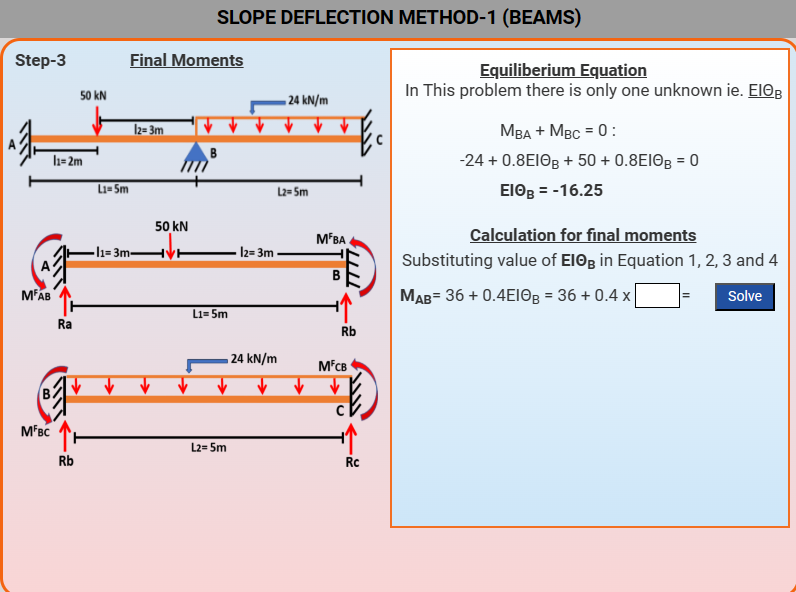

Step-3: Calculation of final moments.

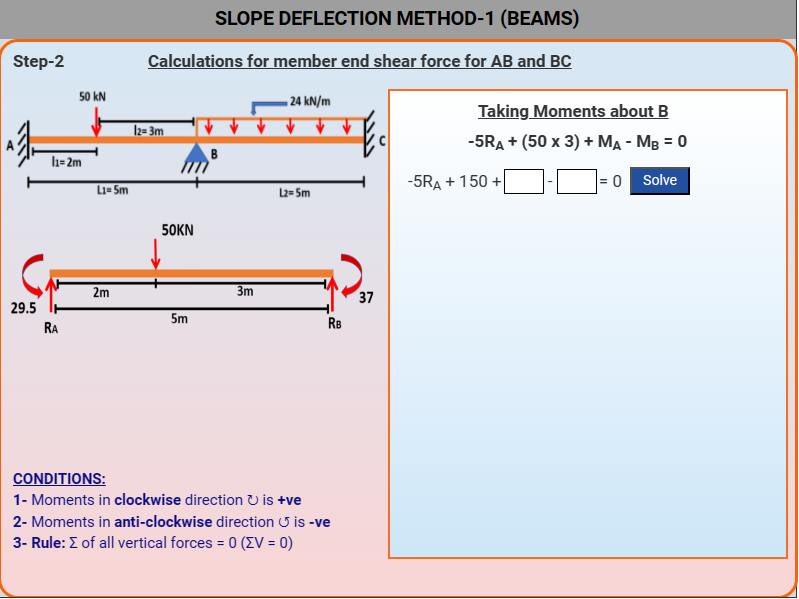

Step-4: Calculation for reactions.

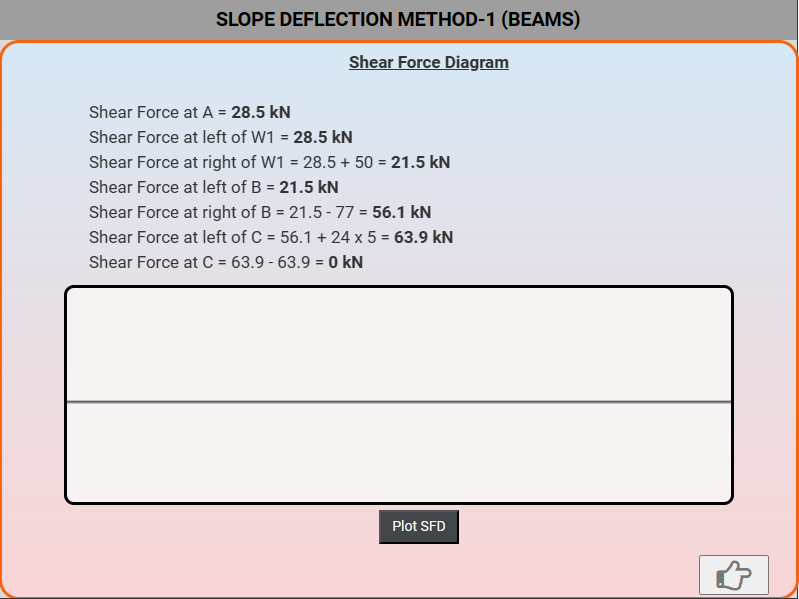

Step-5: Shear force diagram.

Step-6: Bending moment diagram.
