Signal/MUSIC synthesis

Theory

Audio signals generated by many musical instruments can be approximately expressed as combination of multiple sinusoids of appropriate frequencies and amplitudes. Thus, musical notes can be synthesized by combining a bunch of sinusoids. In this experiment we will digitally synthesize signals and listen to them. An example of a musical note is the sound generated by pressing a key of the piano.

Pure tone signal

A single frequency continuous-time sinusoid of frequency f0f_0 is given by

x(t)=asin(2πf0t) \text{x}(t) = a \sin(2 \pi f_0 t)

Since a computer can only generate sampled signals, let us fix a sampling rate of FsF_s samples per second. A digital recording device samples an audio signal at a certain sampling rate (given by the device specifications). In a similar manner, a digital playback device converts the sampled audio signal into a continuous-time signal following the specified sampling rate. The choice of sampling rate depends on the largest frequency content of the signal and is given by the Nyquist sampling criterion. Specifically, to sample a signal with highest frequency of f0f_0, the sampling rate should be chosen as Fs>=2f0F_s >= 2 f_0. This will allow for exact reconstruction of the signal without any loss of information. The sampled signal is given by x[n]=asin(2πf0nTs) \text{x}[n] = a \sin(2 \pi f_0 n T_s)

where Ts=1FsT_s = \frac{1}{F_s} is the sampling interval. A signal of only one frequency is called a pure tone signal. We will synthesise a single tone signal and listen to its sound for various choices of FsF_s and f0f_0.

Aliasing

Aliasing is a peculiar phenomenon, happens when the sampling rate does not obey Nyquist sampling criteria. Due to lack of sufficient samples, the high frequencies show up as lower frequencies. For example, let Fs=8000F_s = 8000 Hz and let a pure tone of frequency f0=6000f_0 = 6000 Hz is to be synthesised. On applying the above formula, the signal is

x[n]=asin(2πf0nTs)=asin(2π(Fsf0)nTs) \text{x}[n] = a \sin(2 \pi f_0 n T_s) = a \sin(2 \pi (F_s-f_0) n T_s)

Thus, a signal of frequency f0=6000f_0 = 6000 Hz is not distinguishable from a signal of frequency fsf0=2000f_s-f_0 = 2000 Hz. To avoid aliasing, given a sampling frequency of FsF_s, frequencies less than Fs2\frac{F_s}{2} should only be synthesized.

Envelope

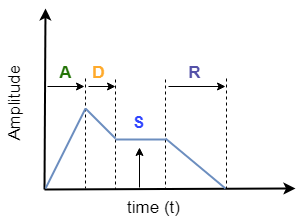

Most audio signals from musical instrument will have a characteristic amplitude envelope corresponding to gradual rise and fall of the volume at beginning and end of a note. Thus, while artificially synthesizing music signals, an envelope is applied. This makes the audio signal sound natural. One such example is the attack-decay-sustain-release (ADSR) envelope. An example figure is shown below:

drawing

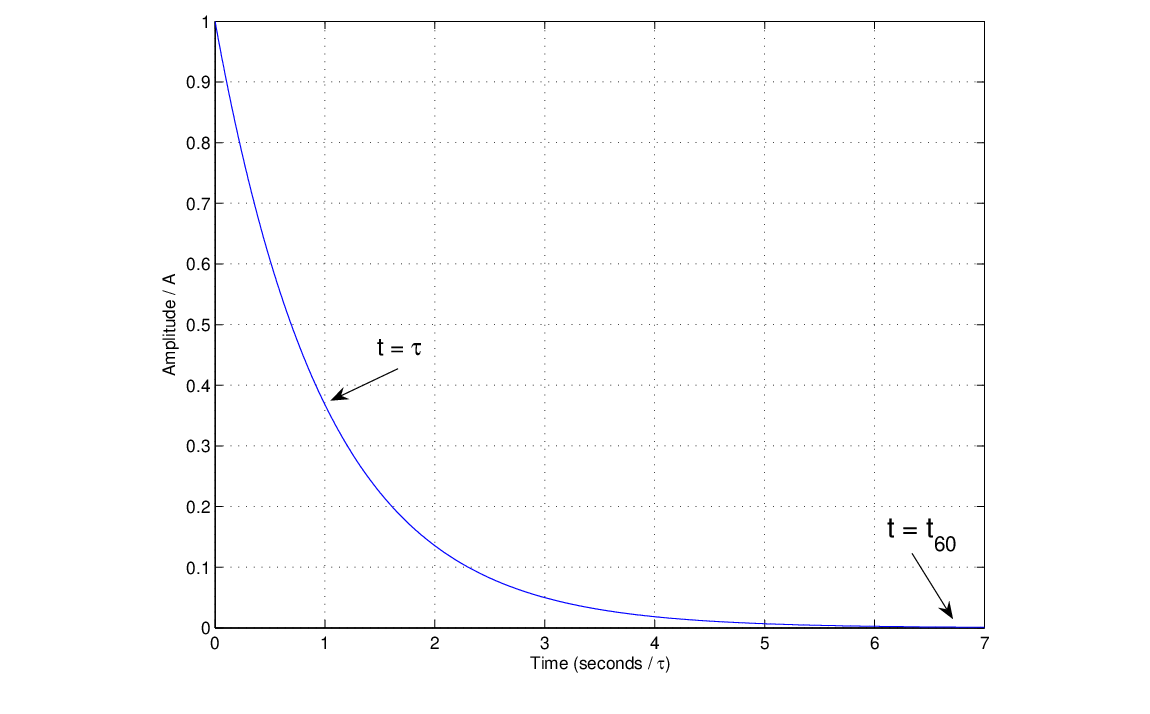

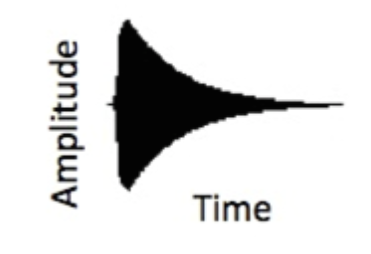

Another example is the exponential decay envelop shown in figure below:

drawing

Harmonics

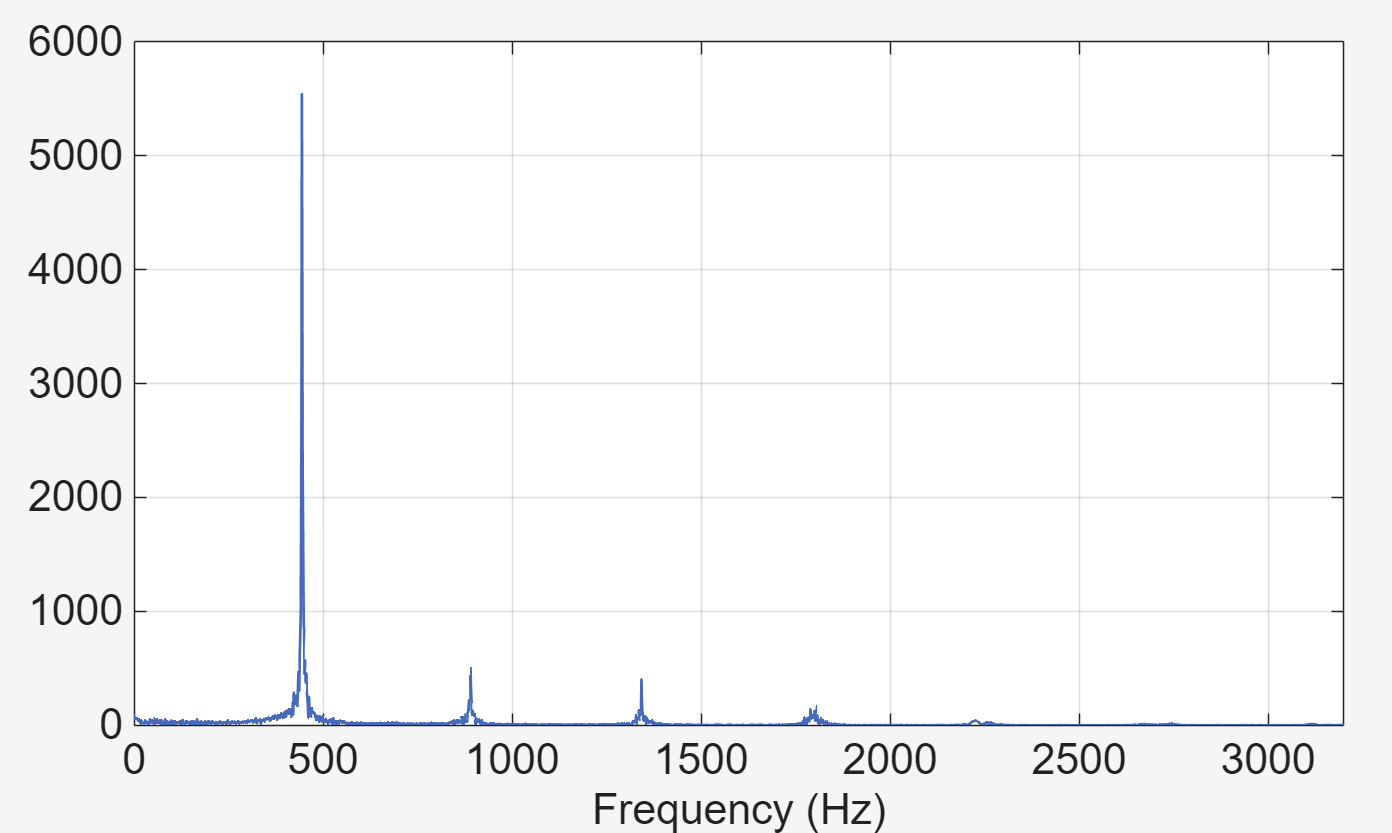

Signals with frequencies 2f02f_0, 3f03f_0, etc. are called harmonics of the frequency f0f_0, i.e., their frequency is an integer multiple of some basic frequency f0f_0. In a typical musical note, multiple harmonics are present in varying proportions. For example, the signal played by a key (A minor) of a piano is plotted below:

The time series representation of a piano signal is given by

y(t)=n=1Nbnsin(2πkf0t)etτ \text{y}(t) = \sum_{n=1}^{N} b_n \sin(2 \pi kf_0 t) e^{-\frac{t}{\tau}}

On performing Fourier analysis, the presence of fundamental frequency fo=440f_o = 440 Hz and their harmonics kf0k f_0 can be seen. A piano note can be synthetically generated by combining all these harmonics (with appropriate weights) and applying an amplitude envelope.

Musical notes

A tune consists of a sequence of musical notes in succession. Each note consists of the fundamental frequency and its harmonics in a specified proportion (depending on the musical instrument). Each note can be of different duration within the tune.

Musical octaves

In musical terminology, an octave corresponds to doubling of the fundamental frequency f0f_0.

Try this sequency of f0f_0 to generate a tune corresponding to an octave of musical notes.
