Components :

To build any register or counters, we need :

1. Flip-Flops.
2. Logic Gates.
3. Wires to connect. In case of counters the number of flip-flops depends on the number of different states in the counter.

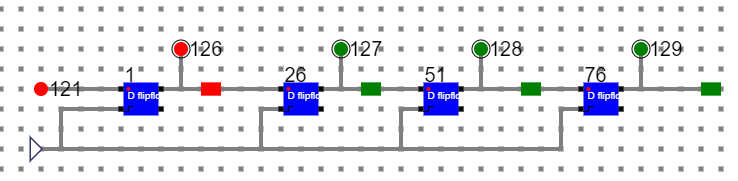

Circuit 4 bit shift register(SISO):

Circuit of D Flip Flop:

• Follow the below manual and perform the experiment
  • Manual --> Click Here
