Design of a Multiplexer using Verilog

This page provides an overview of Verilog, its significance, and practical examples of digital design using Verilog. We will explore three fundamental designs in this experiment:

  1. T-Flip Flop
  2. Counter
  3. T-Flip Flop Using D-Flip Flop

Verilog is a hardware description language (HDL) developed to model electronic systems. It enables designers to describe the structure and behavior of digital circuits, facilitating simulation, synthesis, and verification. The modular nature of Verilog allows for efficient design, testing, and reuse of code.


1. T-Flip Flop

The Verilog code for a T-Flip Flop is shown below, accompanied by an explanation of its components:

T-Flip Flop Verilog Code

Key Concepts

  • Module:
    A module is the fundamental building block in Verilog. It can represent a single element or a collection of lower-level design blocks. Modules encapsulate functionality and expose interfaces through input and output ports, allowing for abstraction and reuse.

  • Module Name:
    The module name is user-defined and is used to instantiate the module elsewhere in the design. Instantiation is demonstrated in the third example.

  • Module Arguments:
    Similar to function arguments in C, module arguments specify the input and output ports used for communication with other modules or the external environment.

  • Input/Output Ports:
    These ports facilitate data transfer into and out of the module. All arguments listed in the module declaration must be defined as either input or output within the module.

  • Data Types:
    In this example, the reg data type is used. Other data types, such as wire, will be introduced in subsequent examples. Refer to the chart below for an overview of Verilog data types:

    Verilog Data Types

  • Always Block:
    The always block contains statements that execute repeatedly, triggered by changes in specified signals (e.g., clock or reset).

  • Posedge Clock:
    The posedge (positive edge) of the clock triggers the execution of statements within the always block, corresponding to a transition from low to high voltage.

  • Negedge Reset:
    The negedge (negative edge) of the reset signal asynchronously sets the output to zero, regardless of the clock.

  • Operators and Lexical Conventions:
    Operators such as ~ (bitwise NOT) and ! (logical NOT) are used in Verilog. The chart below summarizes various operators and conventions:

    Verilog Operators and Lexical Conventions

  • Loops:
    Verilog supports control structures such as for, if-else, and while, similar to C. These structures use begin and end to define statement blocks.

  • Blocking and Non-Blocking Assignments:

    • Blocking (=): Statements execute sequentially.
    • Non-Blocking (<=): Statements execute concurrently.
      For example:
      a = b;
                b = a;

      Both a and b will have the value of b.
      Using non-blocking assignment:
      a <= b;
                b <= a;

      The values are swapped simultaneously.

2. Counter

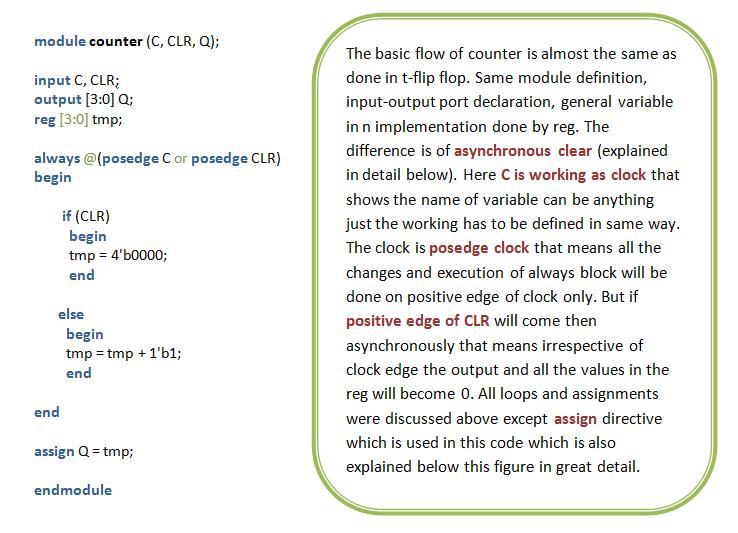

The Verilog code for a counter is provided below, with explanations for each part:

Counter Verilog Code

Additional Notes

  • Assign Statement:
    The assign keyword is used for continuous assignment. For example, assign Q = tmp; ensures that Q is updated immediately whenever tmp changes, regardless of execution sequence.

3. T-Flip Flop Using D-Flip Flop

The Verilog code for implementing a T-Flip Flop using a D-Flip Flop is shown below:

T-Flip Flop using D-Flip Flop Verilog Code

Key Concepts

  • Module Instantiation:
    Modules are not defined within other modules; instead, they are instantiated (called) as needed. The module is referenced by its original name, but each instance must have a unique identifier. For example, the module D_FF is instantiated as dff0.

  • Verilog Primitives:
    Verilog provides built-in primitives such as not. In not (d, q);, d is the output and q is the input.

  • Compiler Directives and System Tasks:
    While not used in the above examples, Verilog supports compiler directives and system tasks for advanced functionality. Refer to the flowcharts below for more information:

    Verilog System Tasks

    Verilog Compiler Directives


MULTIPLEXER

A multiplexer (MUX) is a fundamental digital circuit that selects one of several input signals and forwards the selected input to a single output line. It acts as a multiple-input, single-output switch. Conversely, a demultiplexer routes a single input to one of many outputs.


1. 2-to-1 Multiplexer

A 2-to-1 multiplexer has two data inputs (A and B), one selector input (S), and one output (Z). The selector determines which input is connected to the output:

  • If S = 0, output Z = A
  • If S = 1, output Z = B

The Boolean equation for a 2-to-1 multiplexer is:

Z = (A & ~S) | (B & S)


2-to-1 Multiplexer Circuit

Truth Table

S A B Z
0 0 0 0
0 0 1 0
0 1 0 1
0 1 1 1
1 0 0 0
1 0 1 1
1 1 0 0
1 1 1 1

Key Concepts

  • Selector Input:
    The selector (S) chooses which data input is passed to the output.
  • Boolean Expression:
    The output is determined by a combination of the selector and data inputs.
  • Scalability:
    For n inputs, log2n selector lines are required.

2. 4-to-1 Multiplexer

A 4-to-1 multiplexer extends the concept, allowing one of four inputs (C0 to C3) to be selected using two selector inputs (S1, S0).

4-to-1 Multiplexer Circuit

Truth Table

S1 S0 C3 C2 C1 C0 Y
0 0 x x x 0 0
0 0 x x x 1 1
0 1 x x 0 x 0
0 1 x x 1 x 1
1 0 x 0 x x 0
1 0 x 1 x x 1
1 1 0 x x x 0
1 1 1 x x x 1

Key Concepts

  • Selector Inputs:
    Two selector lines (S1, S0) select one of four data inputs.
  • Generalization:
    For an n-to-1 multiplexer, ceil(log2n) selector lines are needed.
  • Common Sizes:
    Multiplexers are commonly available in 2-to-1, 4-to-1, 8-to-1, and 16-to-1 configurations.

Multiplexers are widely used in digital systems for data routing, resource sharing, and implementing logic functions. Their Verilog implementation demonstrates the use of conditional assignments and modular design, which are essential concepts in digital circuit design.
