Motor forward and reverse direction control using PLC

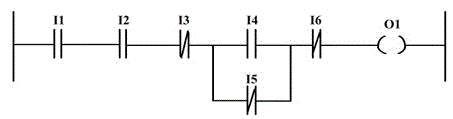

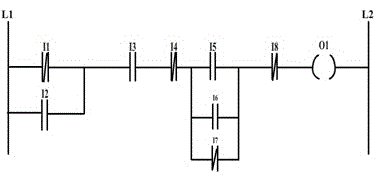

Consider the following PLC Ladder rung

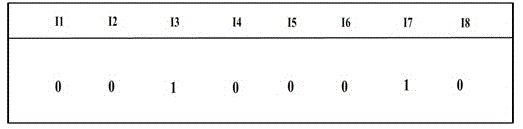

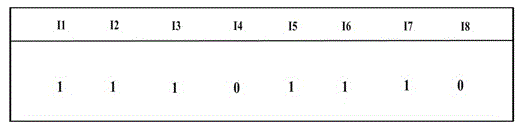

For the following input status file bit condition shown below
The output O1

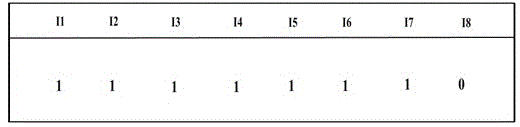

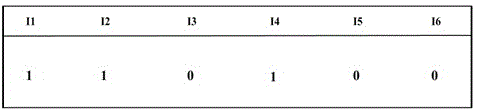

For the following input status file bit condition shown below
The output O1

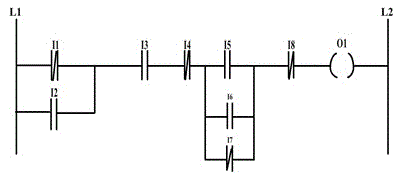

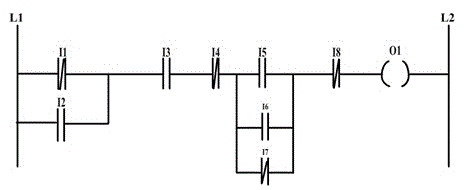

Consider the following PLC Ladder rung

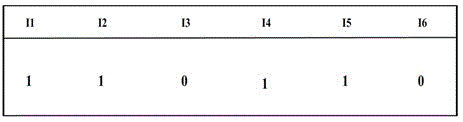

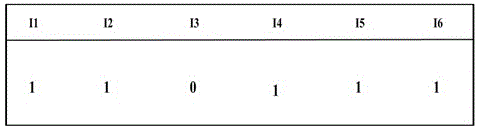

For the following input status file bit condition shown below
The output O1

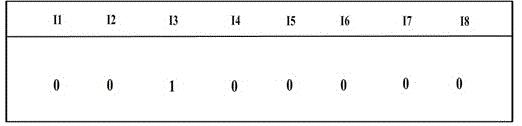

For the following input status file bit condition shown below
The output O1

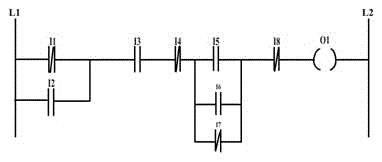

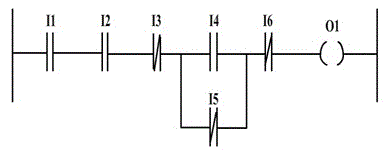

Consider the following PLC Ladder rung

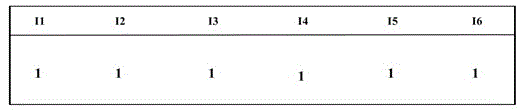

For the following input status file bit condition shown below
The output O1
For the following input status file bit condition shown below
The output O1

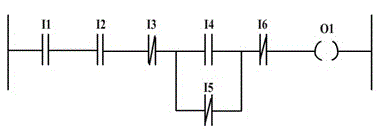

Consider the following PLC Ladder rung
For the following input status file bit condition shown below
The output O1
For the following input status file bit condition shown below
The output O1
Consider the following PLC Ladder rung
For the following input status file bit condition shown below
The output O1
For the following input status file bit condition shown below
The output O1
Consider the following PLC Ladder rung
For the following input status file bit condition shown below
The output O1
For the following input status file bit condition shown below
The output O1
Consider the following PLC Ladder rung
For the following input status file bit condition shown below
The output O1
For the following input status file bit condition shown below
The output O1
Consider the following PLC Ladder rung
For the following input status file bit condition shown below
The output O1
For the following input status file bit condition shown below
The output O1
In timer element, word zero is for _______ .
AThe preset value of timer 9 , in default timer file 4, is addressed as _________.
In a default timer file, timer 3's done bit is addressed as ________ .
