Theory

Definition

Virtual Reality (VR) is the fusion of two contrasting words, 'virtual' and 'reality,' encapsulating the essence of the experience it offers. It entails immersing oneself in a simulated world that feels convincingly real, facilitated by technology that tricks our senses into believing we inhabit an alternate reality. In essence, VR enables the sensation of genuine presence within a fabricated yet lifelike environment.

Components of VR The detailed breakdown of the components that make up a typical Virtual Reality (VR) system:

Fig. 1

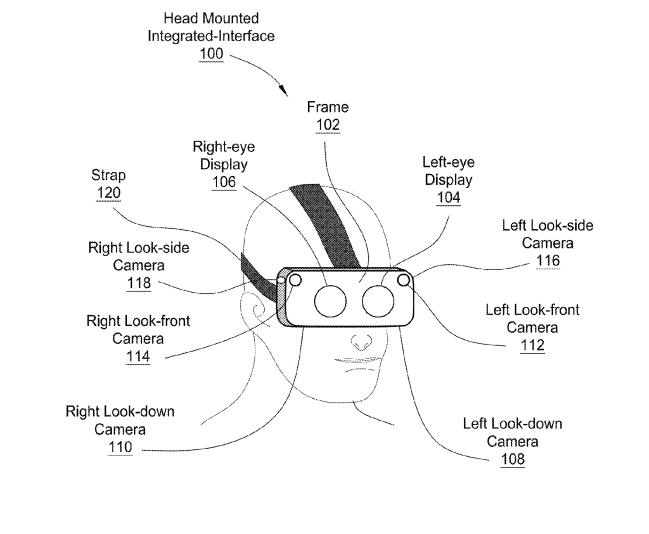

1. Head-Mounted Display (HMD):

• The HMD is the primary hardware for VR, worn on the head like goggles or a helmet.
• It contains small screens or lenses to display stereoscopic 3D images, creating the visual experience.
• Some HMDs also have built-in sensors for head tracking, allowing the system to adjust the displayed images based on the user's movements.

2. Tracking System:

• Sensors or cameras track the user's movements and location in physical space.
• Inside-out tracking uses sensors on the HMD to monitor the user's movements without external devices.
• Outside-in tracking relies on external cameras or sensors placed in the environment to track the user's position and movements.

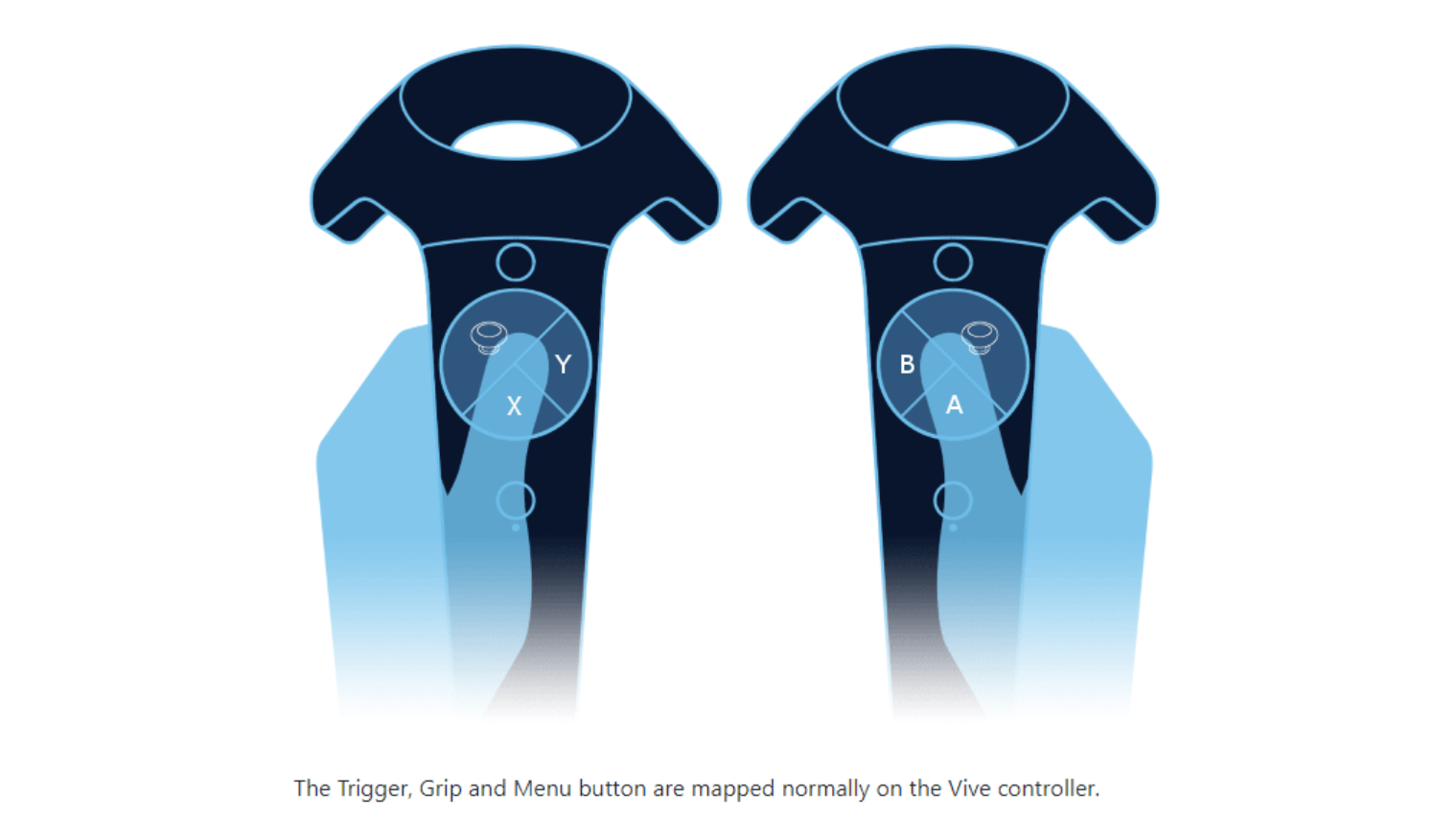

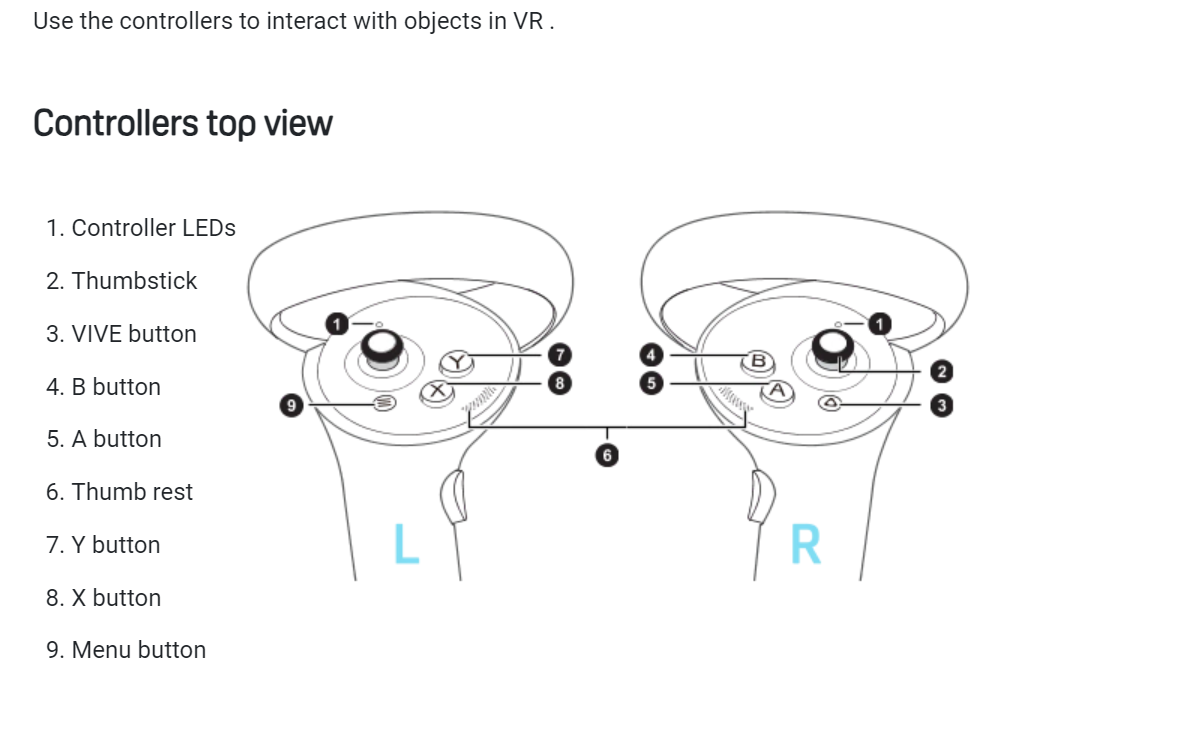

3. Controllers and Input Devices:

Fig. 2

• Handheld controllers or gloves allow users to interact with the virtual environment.
• These devices can simulate hand movements, gestures, and manipulation of objects within the VR space.

4. Audio System:

• Quality audio output enhances immersion by providing spatial, 3D audio cues.
• Surround sound headphones or speakers create a sense of presence by delivering realistic sounds from different directions.

5. Graphics Processing Unit (GPU):

• Powerful computers or devices equipped with high-end GPUs render high-quality, real-time graphics for a smooth and immersive experience.
• GPUs handle the complex calculations required to generate the detailed visuals in VR.

6. Software and Applications:

• VR experiences, games, simulations, and applications specifically designed for VR.
• These programs run on compatible platforms and offer a wide range of virtual experiences.

7. Haptic Feedback Devices:

Fig. 3

- Haptic technology provides tactile feedback, allowing users to feel sensations within the virtual environment. - Devices such as gloves or vests use vibrations, pressure, or other methods to simulate the sense of touch.

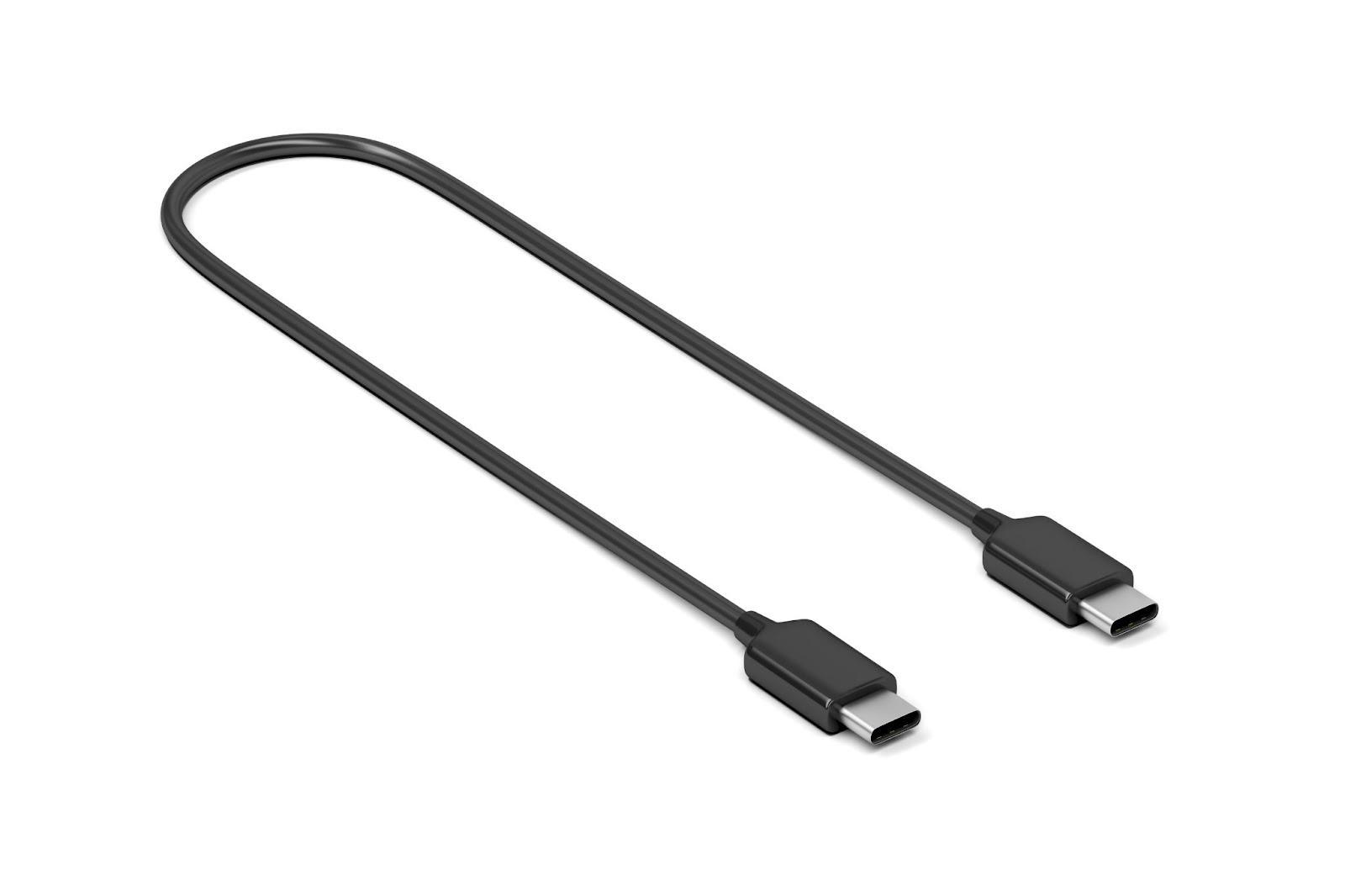

8. Peripherals & Cables: 1. USB TypeC

Fig. 4

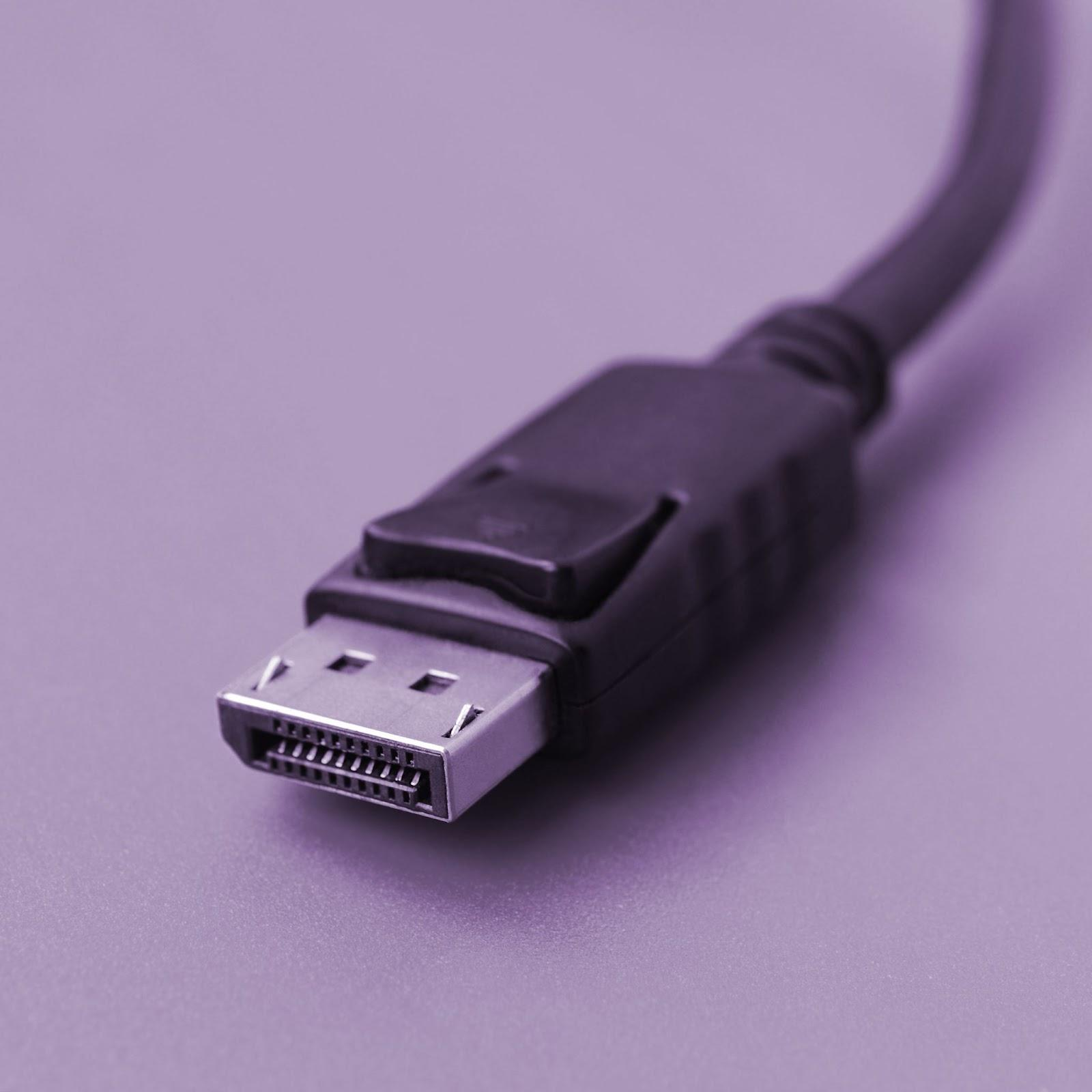

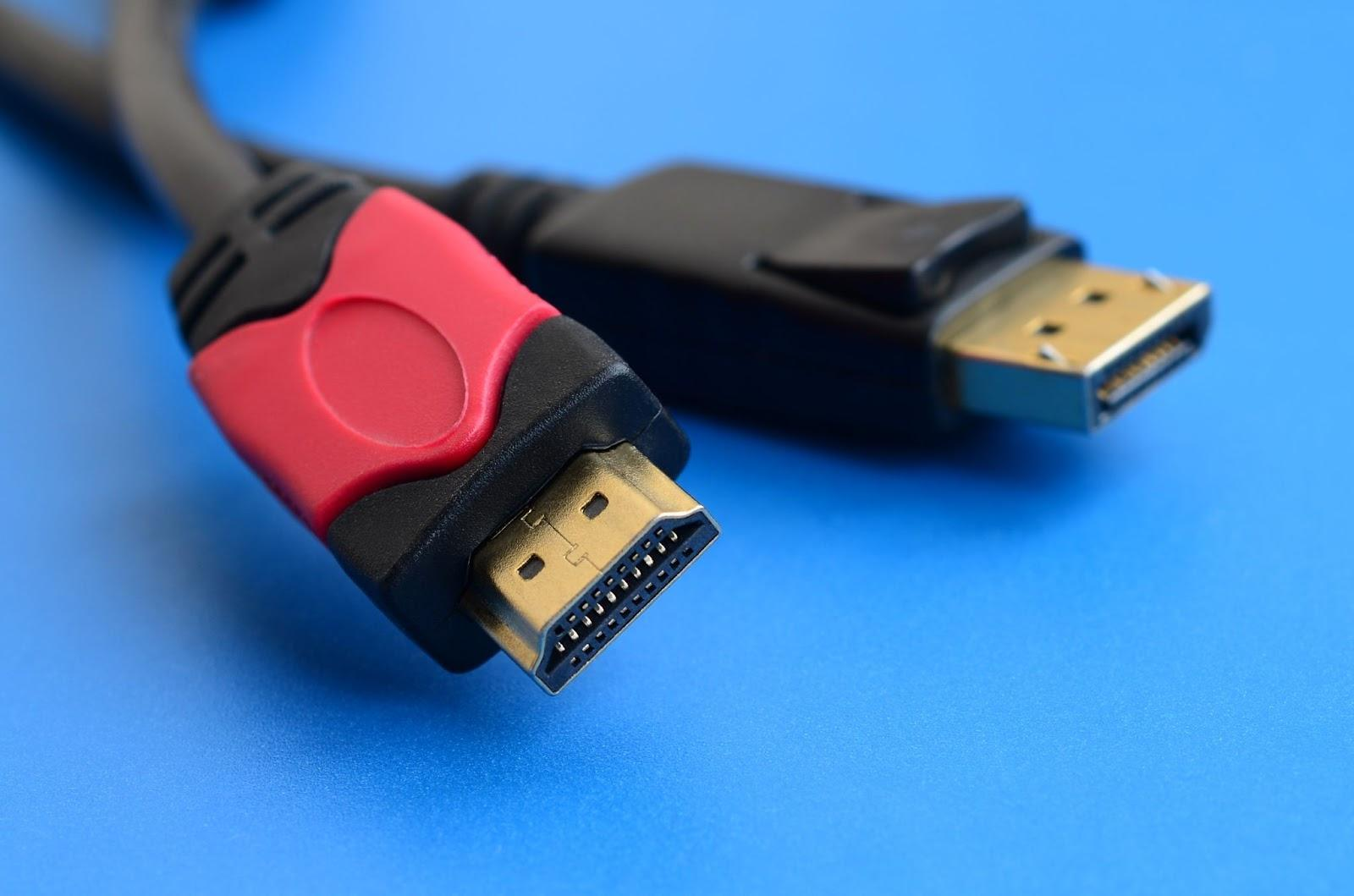

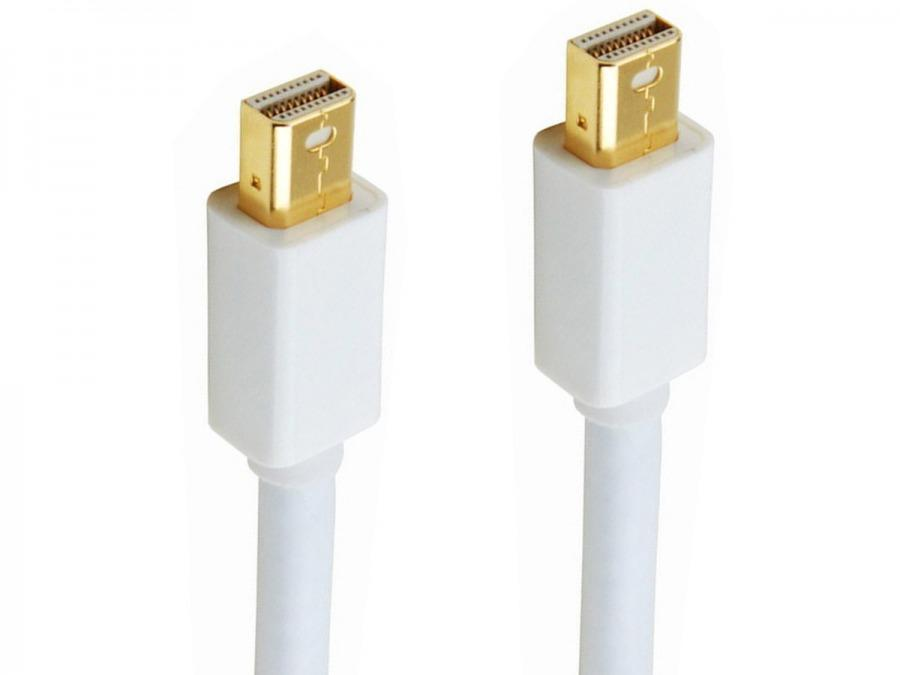

2. HDMI/Mini Display Port/Display Port Cable

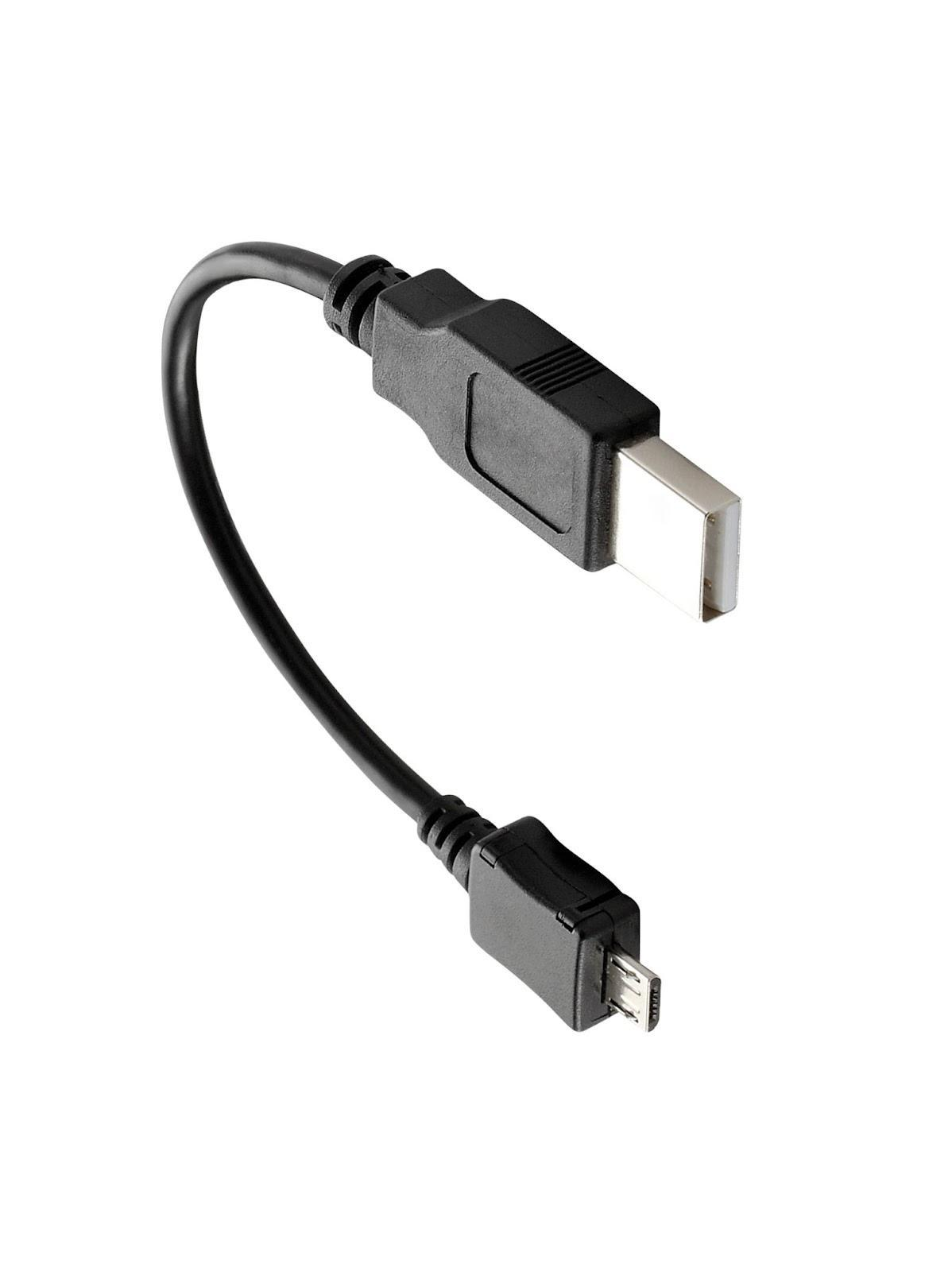

3. MicroUSB

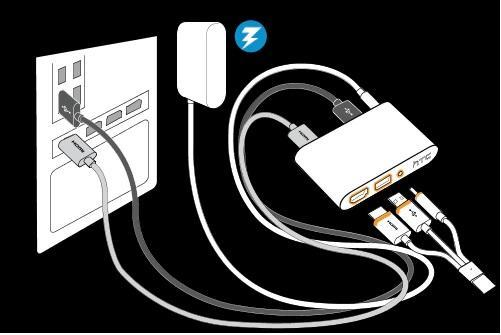

4. WiFi Input and Output Connector (I/O Hub)
