Raspberry Pi LED Blink Program
Procedure

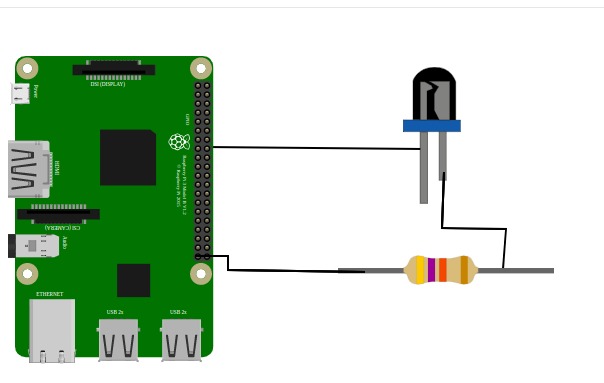

Hardware Setup
- Identify the two pins of the LED:
- The longer pin is the positive terminal (anode).
- The shorter pin is the negative terminal (cathode).
- Connect the negative terminal (shorter pin) to the Ground (GND) pin of the Raspberry Pi.
- Connect the positive terminal (longer pin) to a separate line on the breadboard.
- Attach one end of a resistor to the same line as the positive LED terminal.
- Link the other end of the resistor to any GND pin on the Raspberry Pi.
Software Setup
1. Controlling the LED with Python 3 on Raspberry Pi OS
Once the hardware is set up, the LED can be controlled using Python 3. The following process enables LED control:
- Import the RPi.GPIO module, which provides access to the GPIO pins.
- Import the time module to introduce time delays in execution.
- Define a global constant for the LED's GPIO number to improve code readability and reduce errors.
- Configure the Raspberry Pi to use GPIO numbers instead of physical pin numbers.
- Set up the GPIO pin as an output using GPIO.setup().
2. Making the LED Blink
- Maintain the same GPIO configuration.
- Implement an infinite loop that toggles the LED on and off at set intervals.
- The LED remains ON for 1 second and OFF for 2 seconds.
- The loop runs indefinitely until manually interrupted using either the stop button in the Thonny IDE or CTRL+C in the terminal.
Python Code Implementation
import RPi.GPIO as GPIO
import time
# Define the GPIO pin number for the LED
LED_PIN = 17
# Set the GPIO mode to BCM (Broadcom pin-numbering scheme)
GPIO.setmode(GPIO.BCM)
# Set up the LED pin as an output
GPIO.setup(LED_PIN, GPIO.OUT)
try:
while True:
# Turn the LED on (HIGH state)
GPIO.output(LED_PIN, GPIO.HIGH)
time.sleep(1) # Wait for 1 second
# Turn the LED off (LOW state)
GPIO.output(LED_PIN, GPIO.LOW)
time.sleep(2) # Wait for 2 seconds
except KeyboardInterrupt:
# Clean up GPIO settings when exiting the program
GPIO.cleanup()
