Groundwater level identification using Ground Penetrating Radar

Procedure

  1. Click on the simulation button and this page will be displayed. Hover over the description button to get a brief explanation about the experiment.

    Alt text

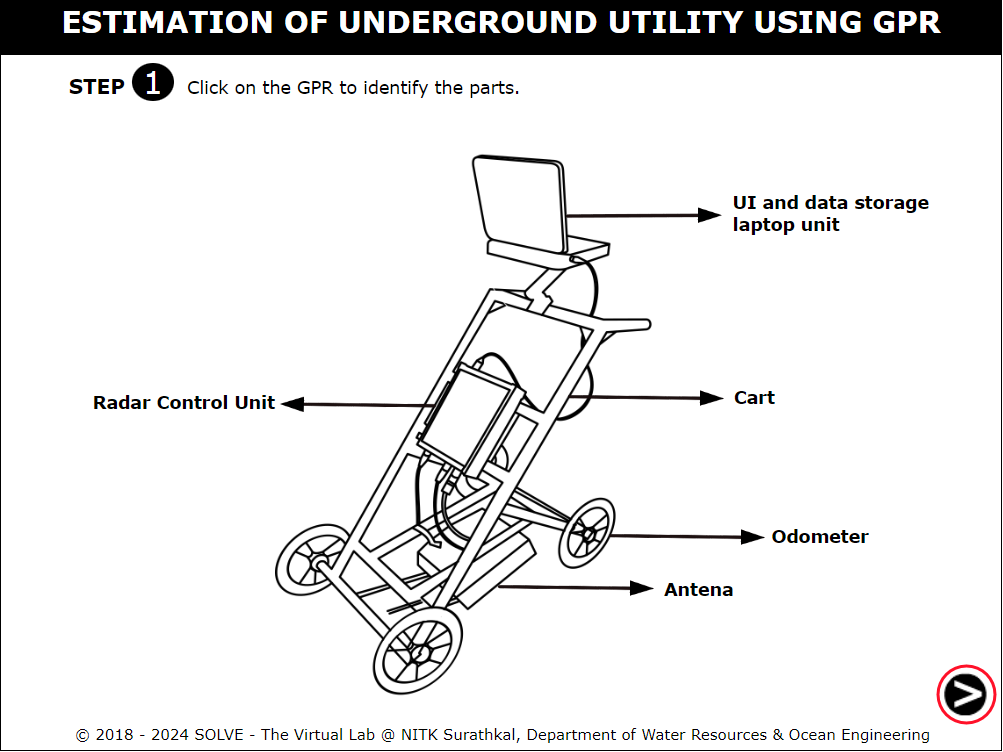

  2. Click on the GPR to identify the parts.

    Alt text

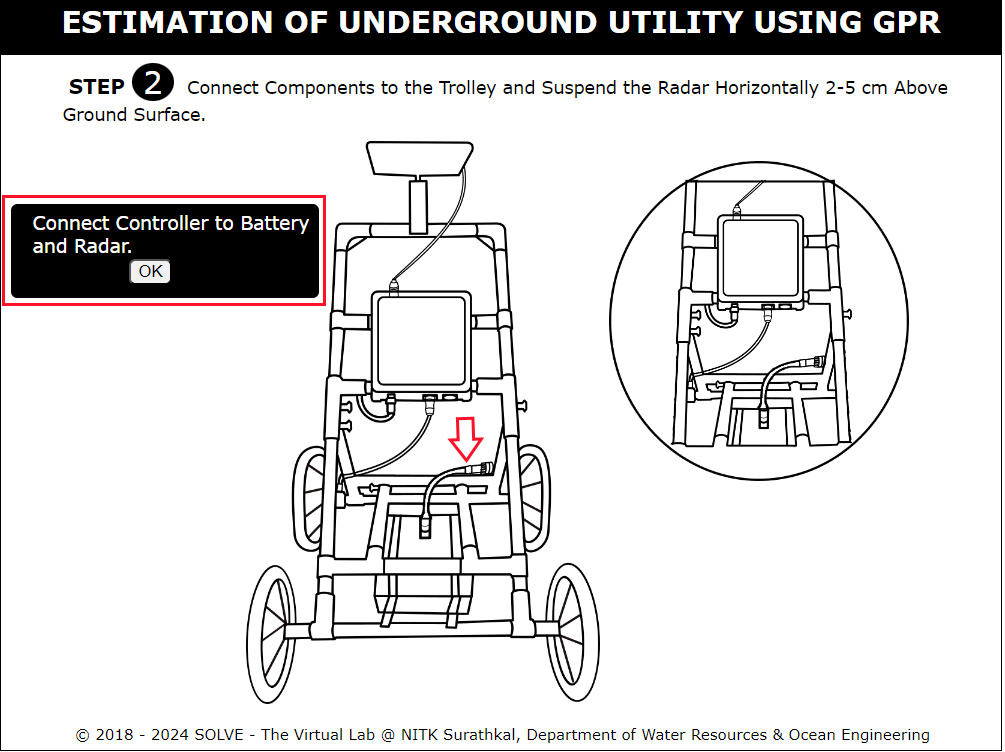

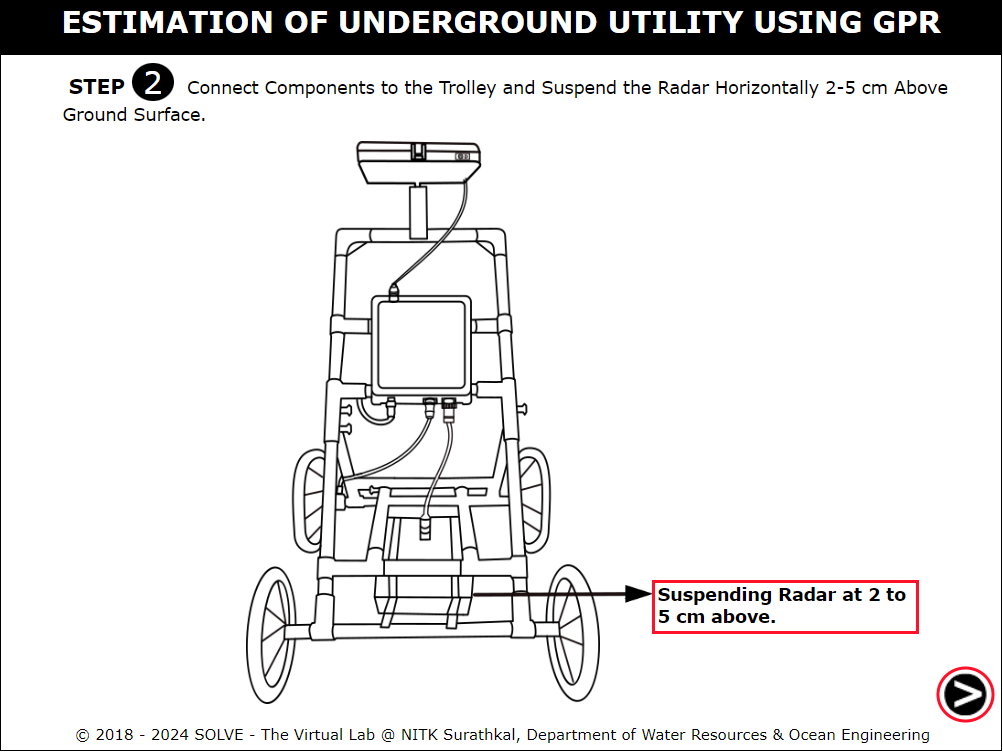

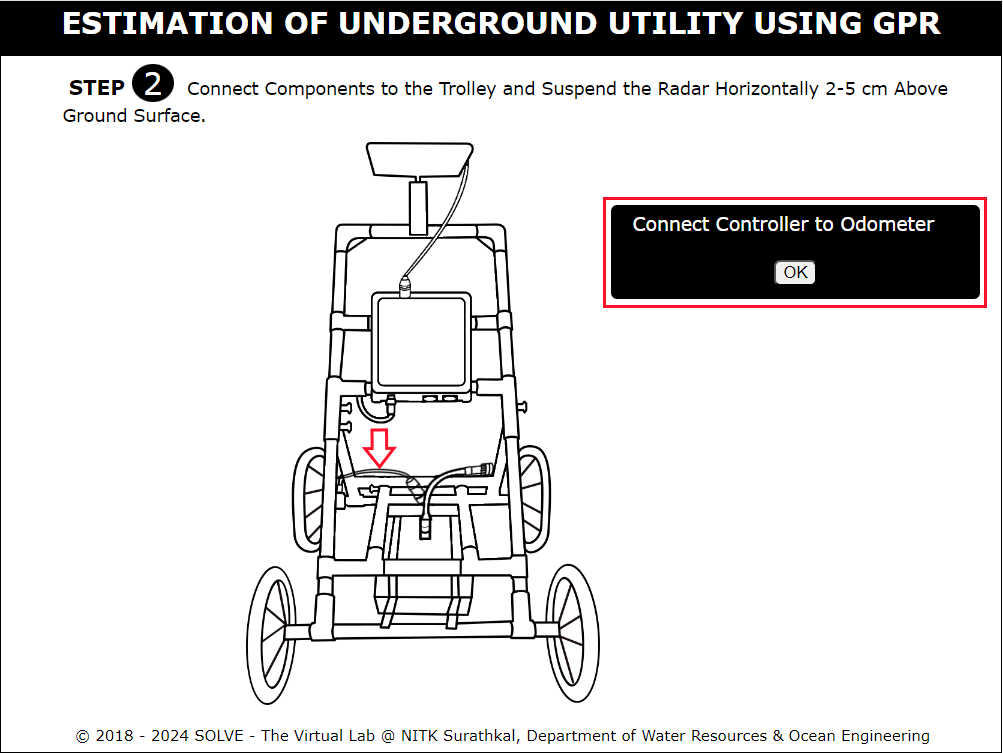

  3. Connect component to the Trolley and Suspend the Radar Horizontally 2-5cm above ground surface.

    Alt text

    Alt text

    Alt text

    Alt text

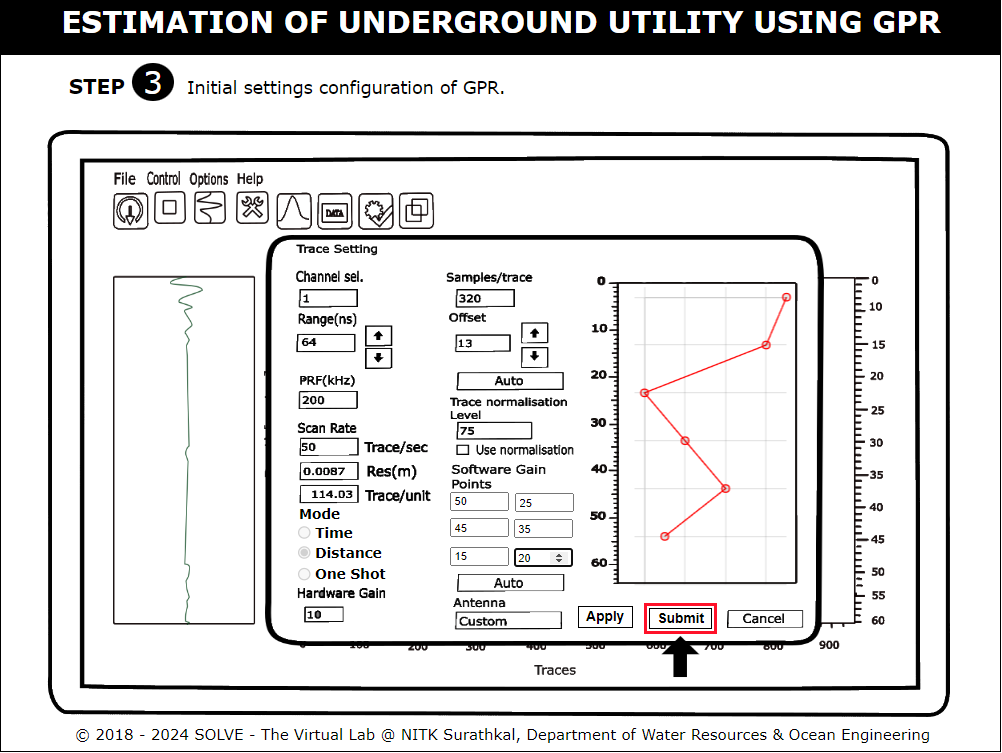

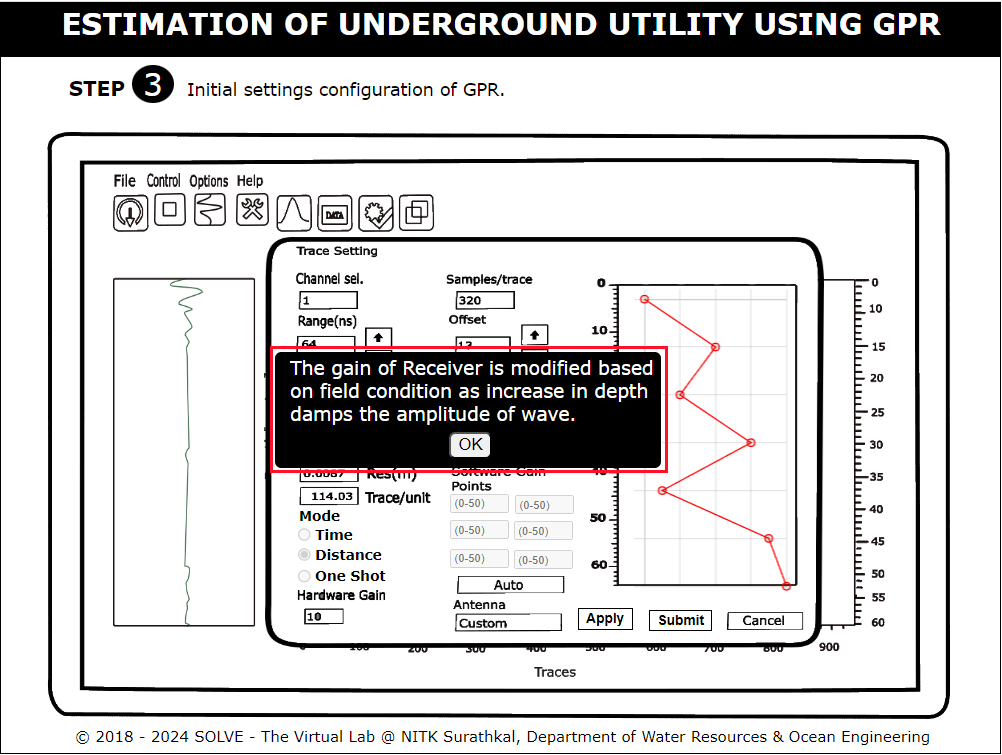

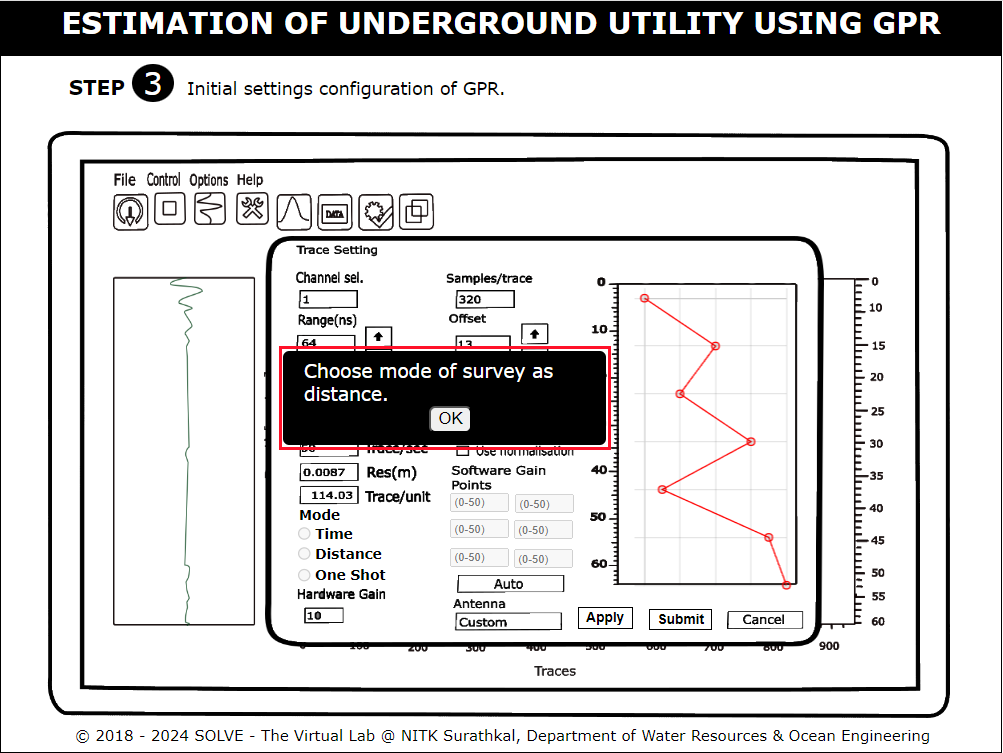

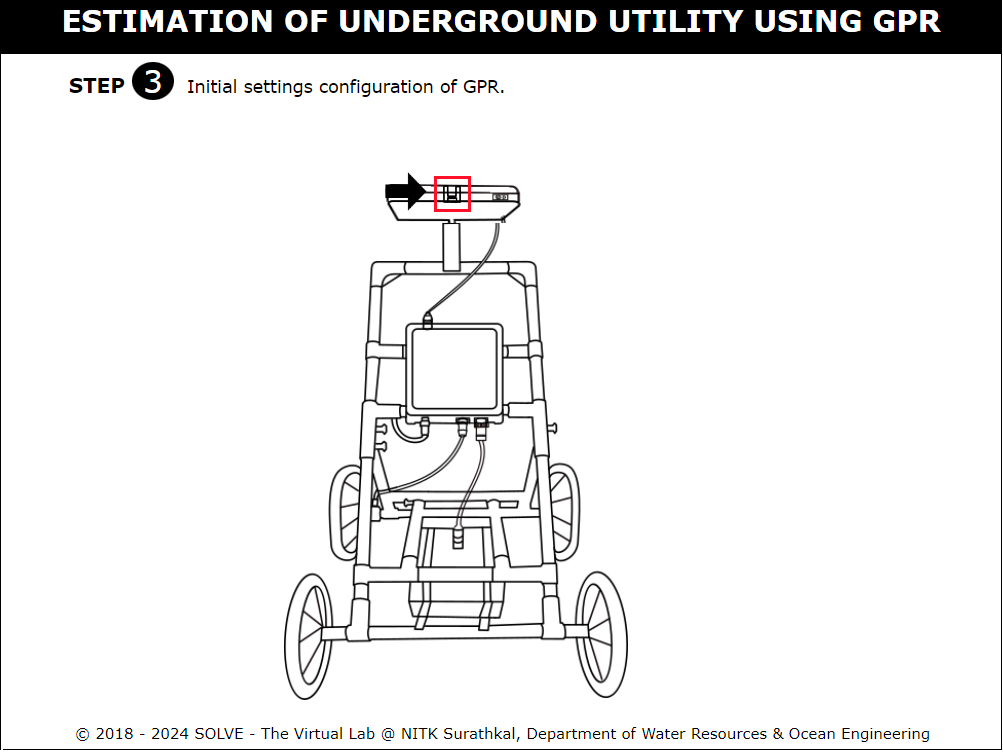

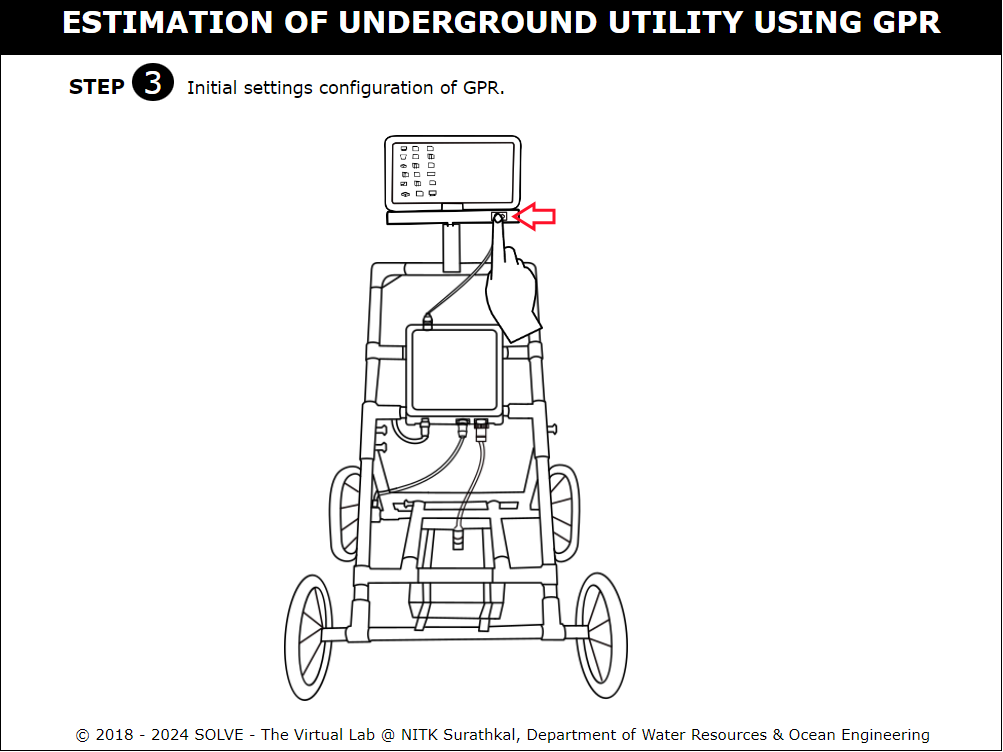

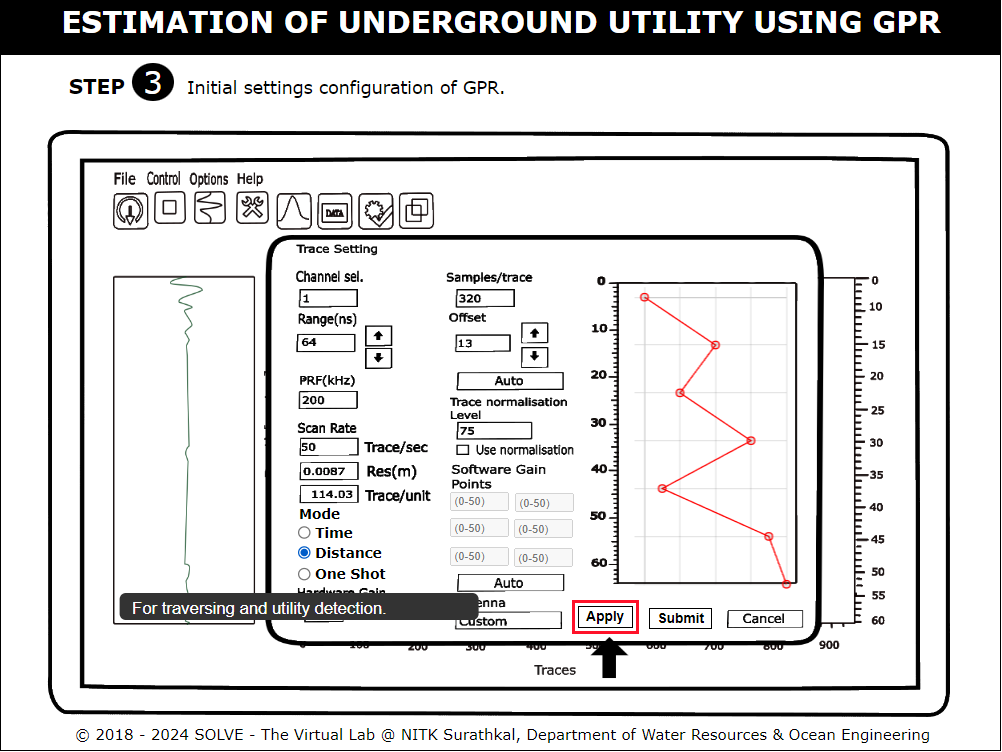

  4. Click on the power button to start the tablet and do all the initial settings for data capturing.

    Alt text

    Alt text

    Alt text

    Alt text

    Alt text

    Alt text

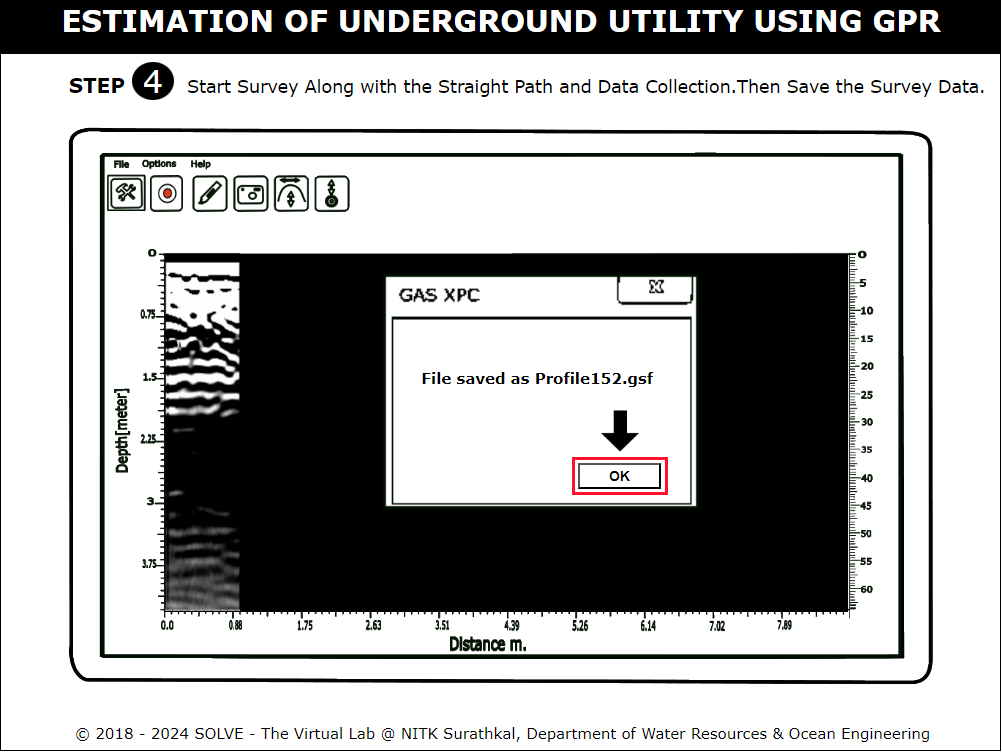

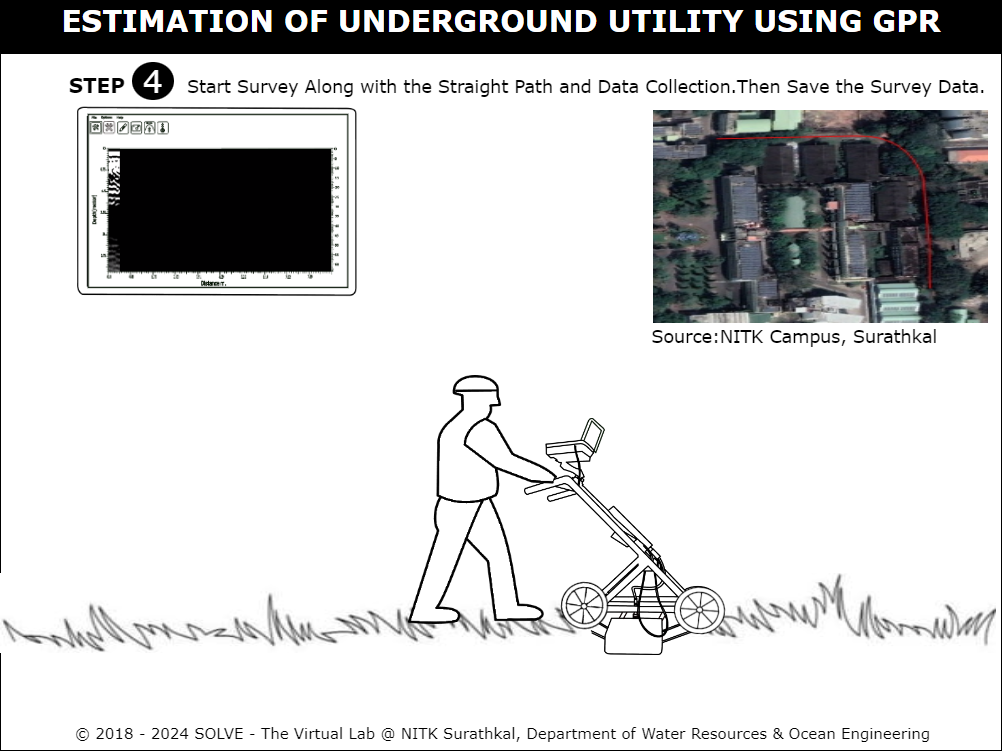

  1. Click on the play button on the screen and start moving the GPR device to log the data.

    Alt text

    Alt text

  2. Click on the new job icon to start a new set of data collection and click on ok.

    Alt text

    Alt text

    Alt text

    Alt text

  3. Click on the play button on the screen and start moving the GPR device to log the data.

    Alt text

    Alt text

    Alt text
