Frequency Selective Fading

Procedure

Follow the instructions given below to perform the experiments:-

  • Step1:- A page appears with a dialogue box asking for your name.

    Large Scale Fading

  • Step 2:- Enter your name then Click Ok.

    Large Scale Fading

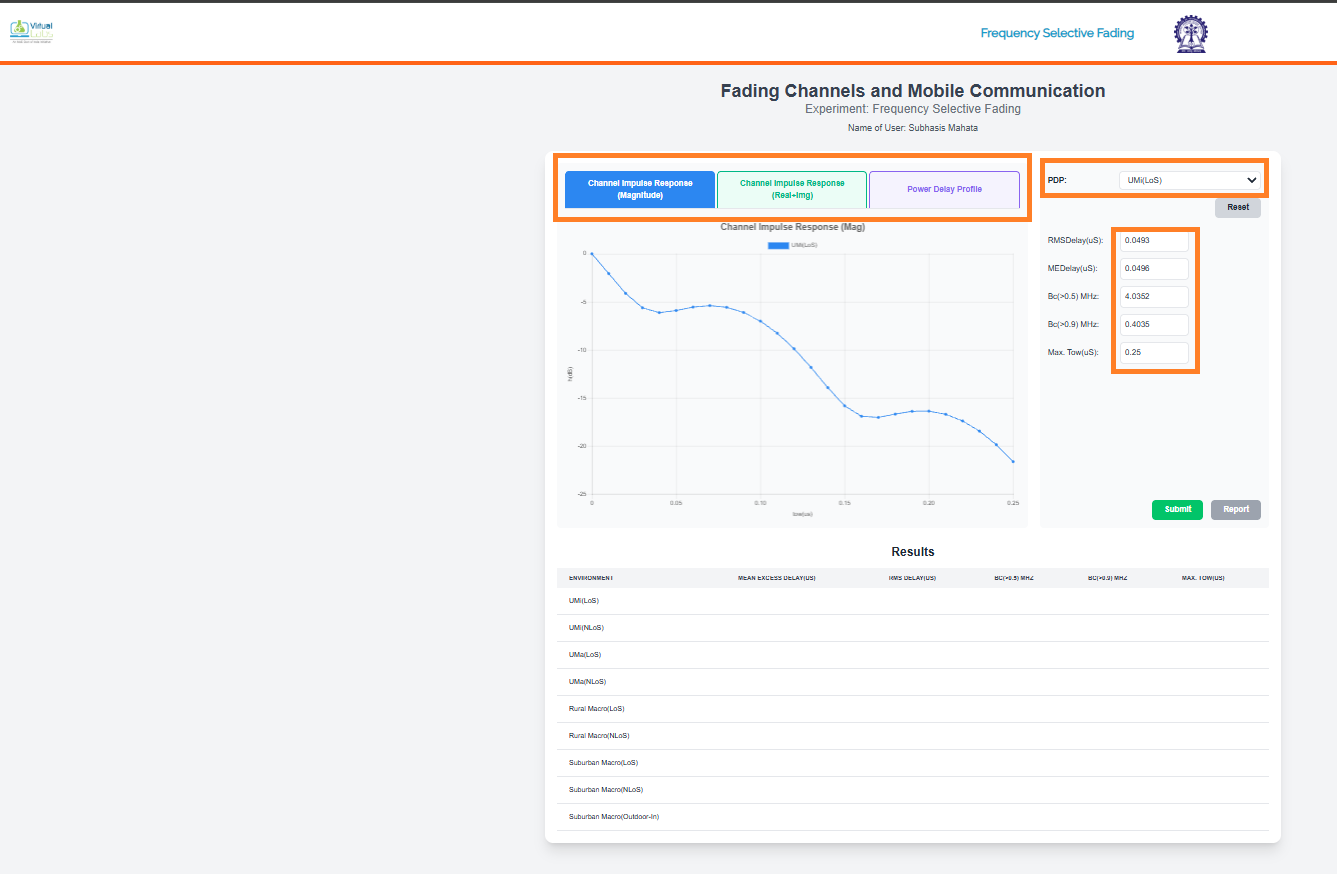

  • Step3:- Select PDP and clicked each tab to see the graphs.

    Large Scale Fading

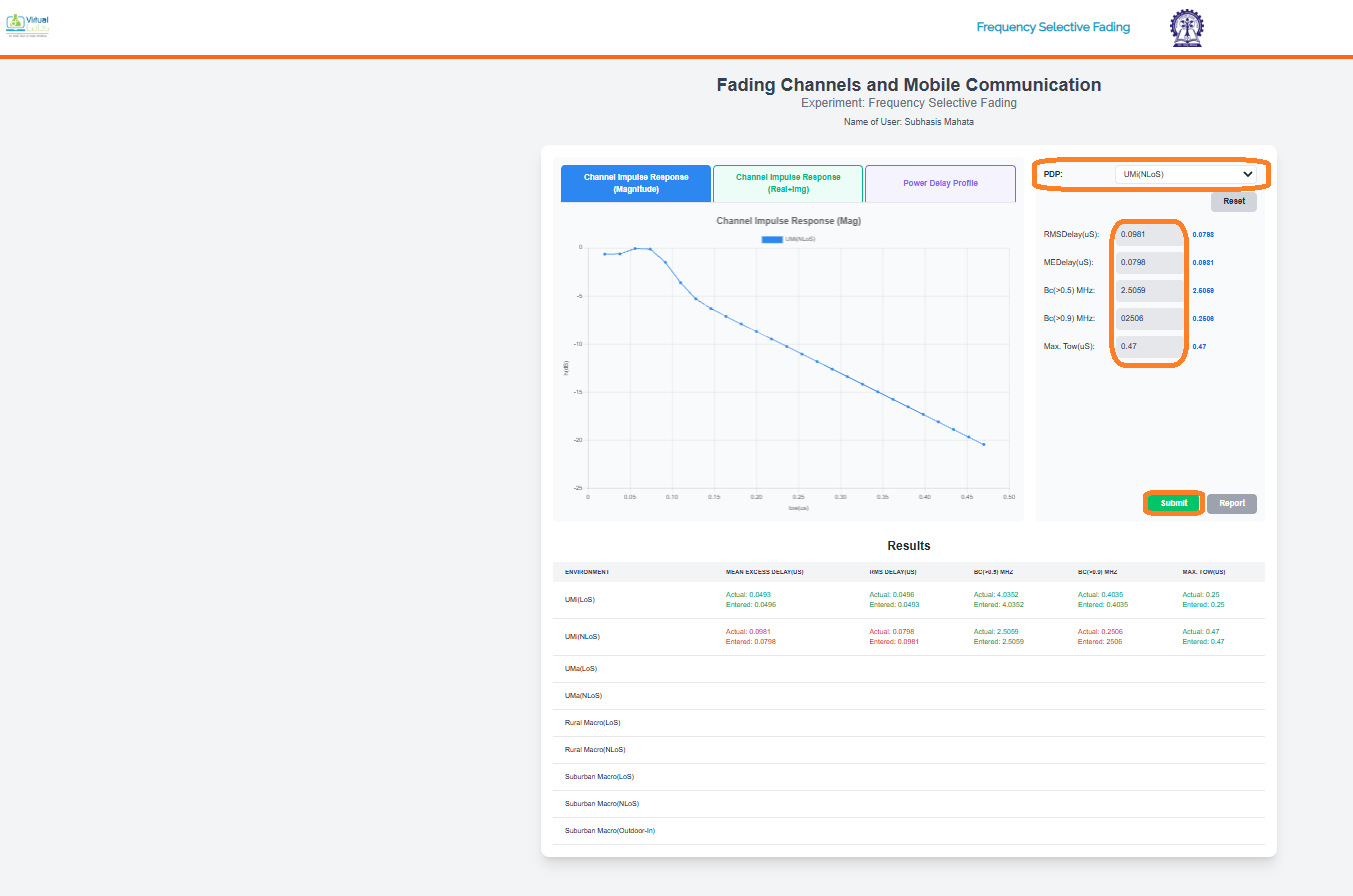

  • Step4:- Calculate and enter the values of the parameters ,then click on the "SUBMIT' button.

    Large Scale Fading

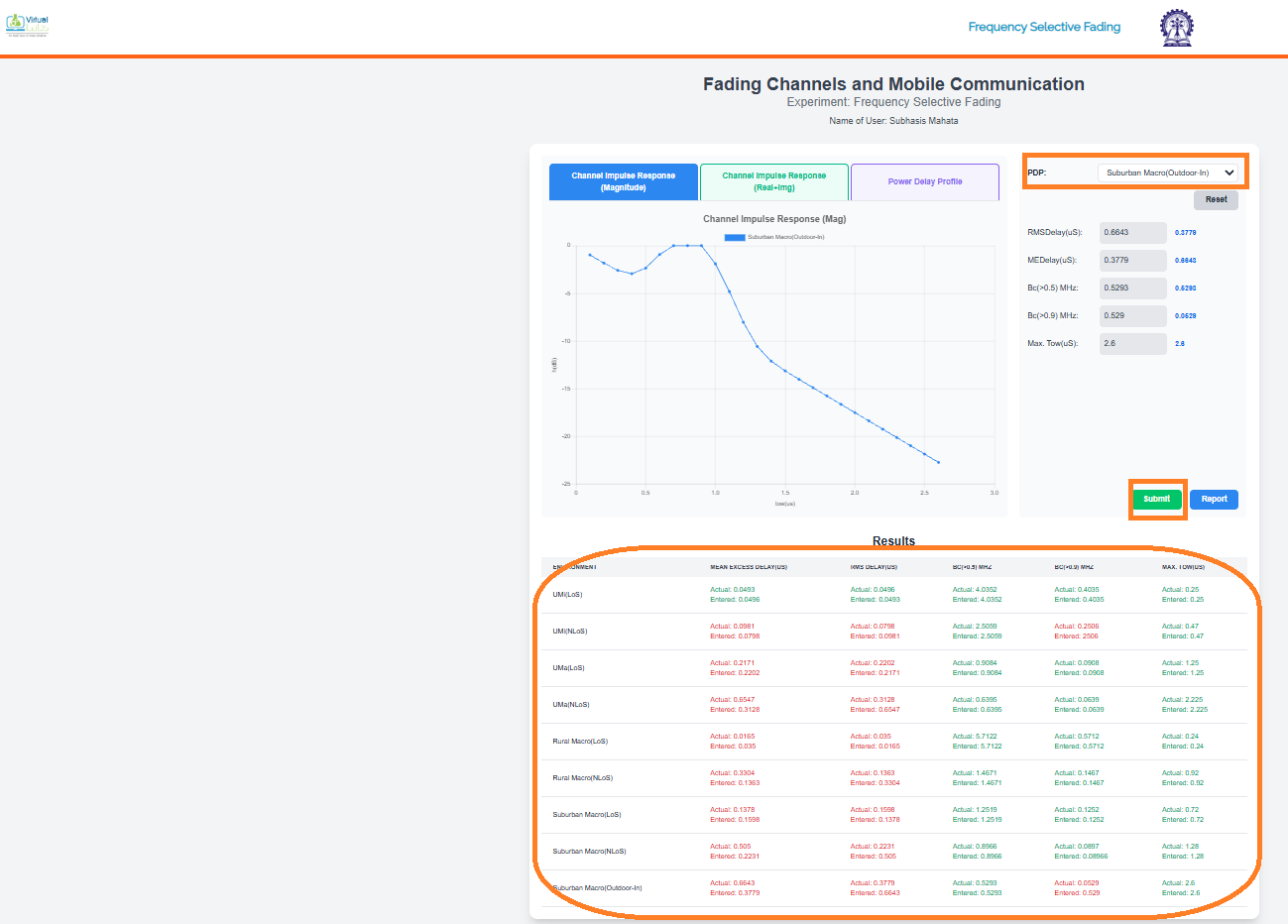

  • step5:- Change the PDP and repeat the above process and enter all the values for different PDP/ environments.

    Large Scale Fading

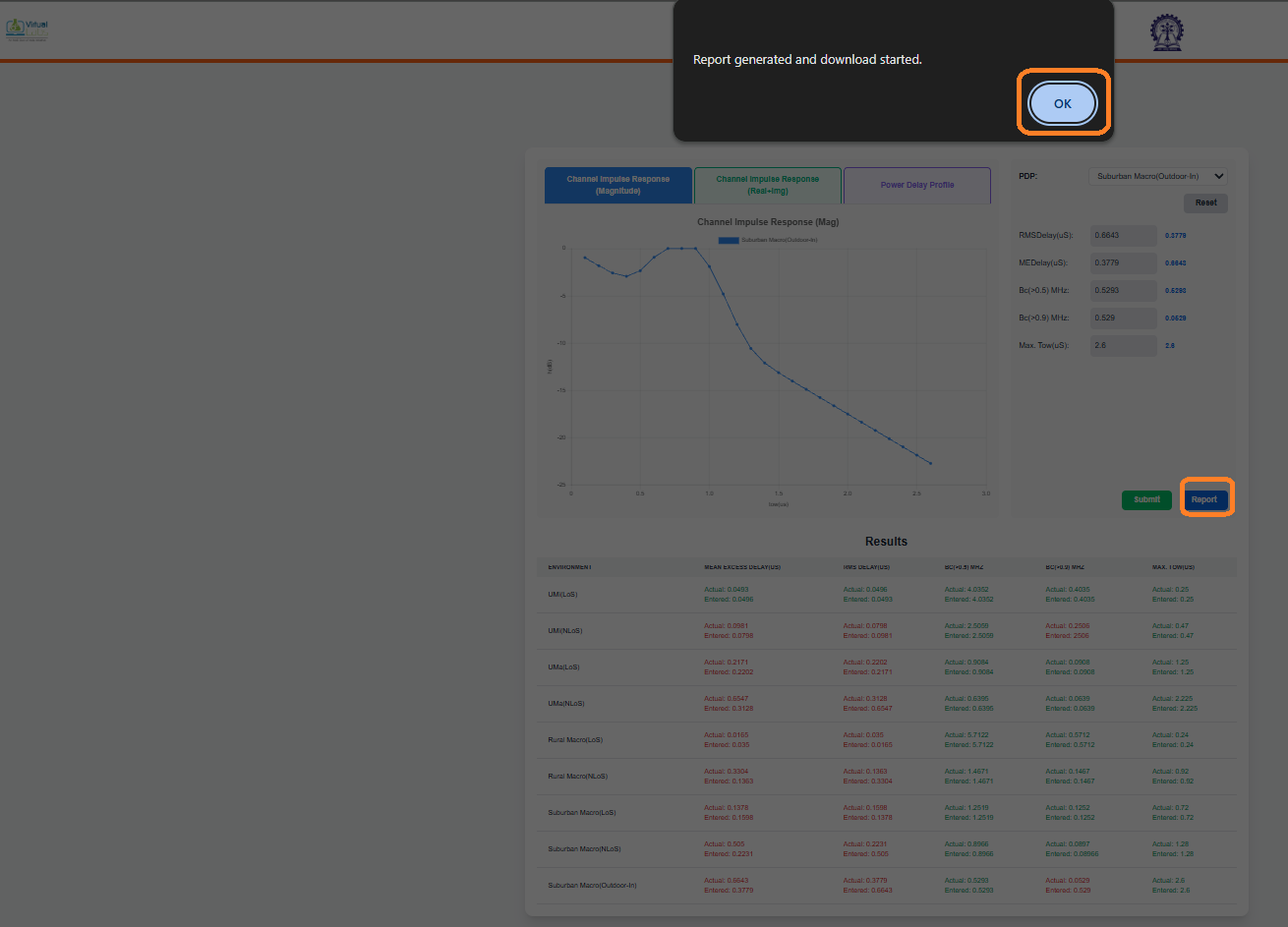

  • step6:- To generate the Pdf report click on the "REPORT' button.

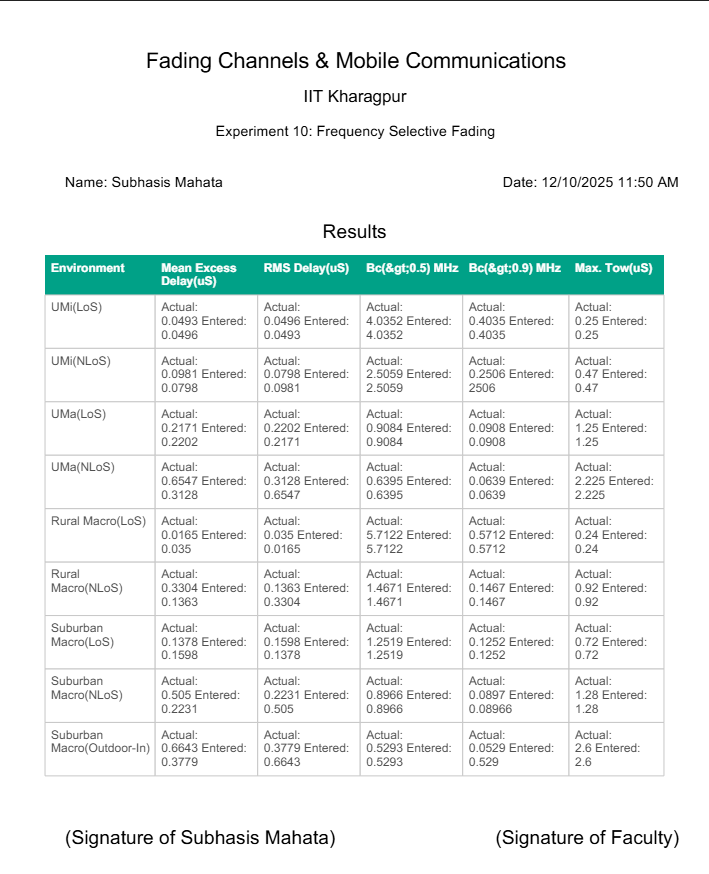

  • Step7:-Click on the "Ok" and you will get your Report.

    Large Scale Fading

  • Step8:- To Redo the experiment click on "RESET" button.
