Flat Fading

Procedure

Follow the instructions given below to perform the experiments:-

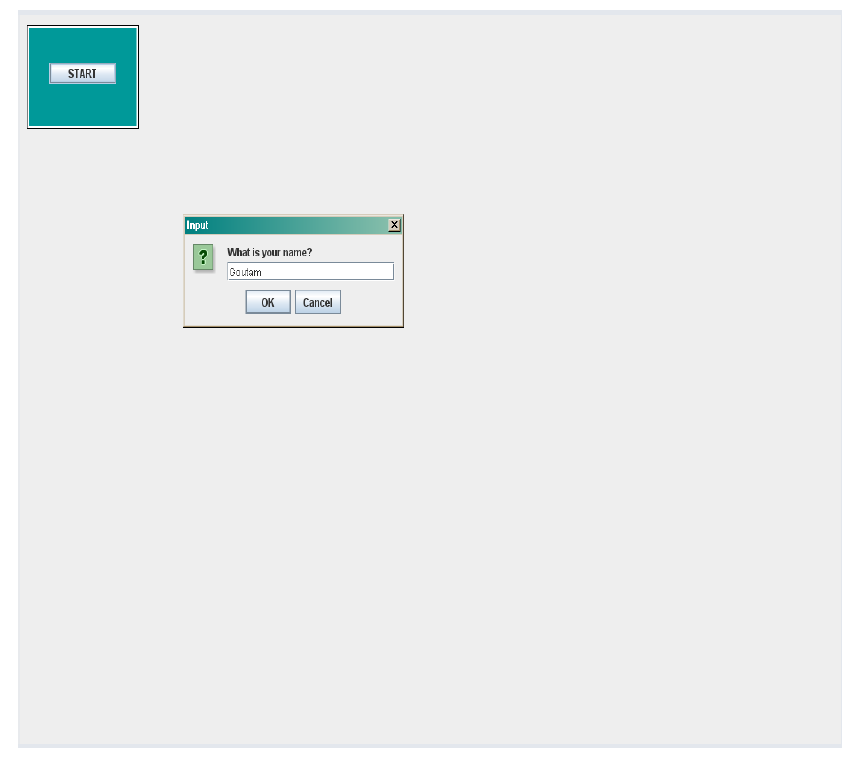

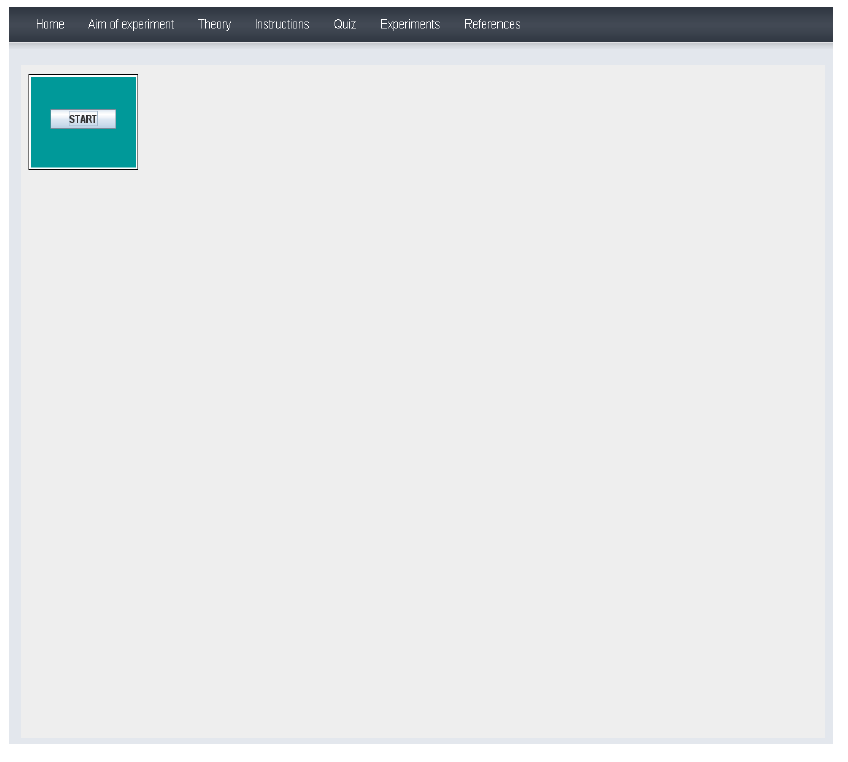

  • Step1:- Click on the button START. A page appears with a dialogue box asking for your name.

    Large Scale Fading

  • Step 2:- Enter your name then Click Ok.

    Large Scale Fading
    Large Scale Fading

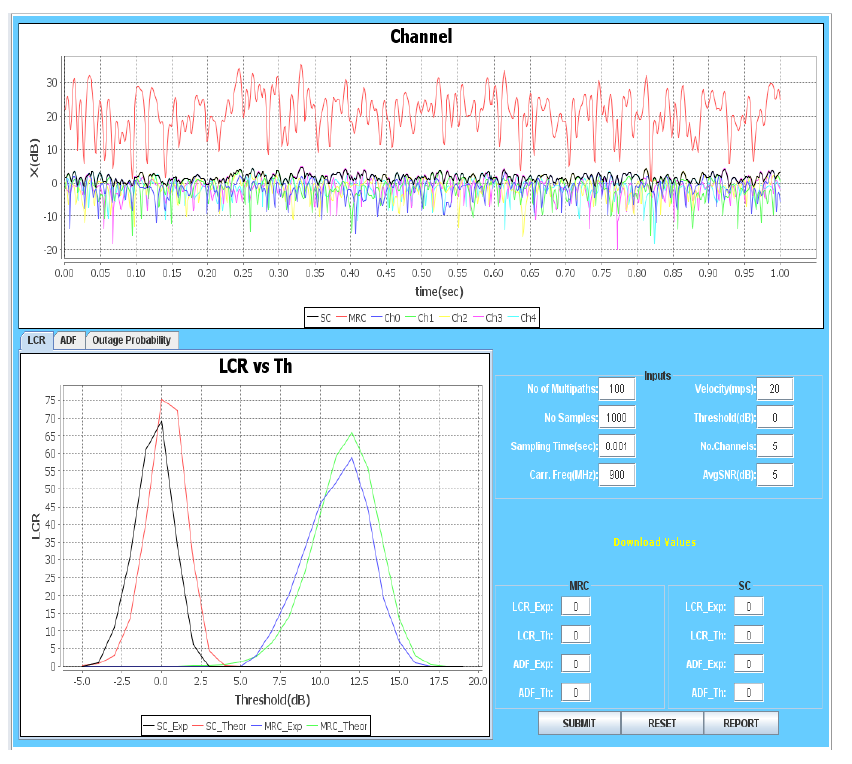

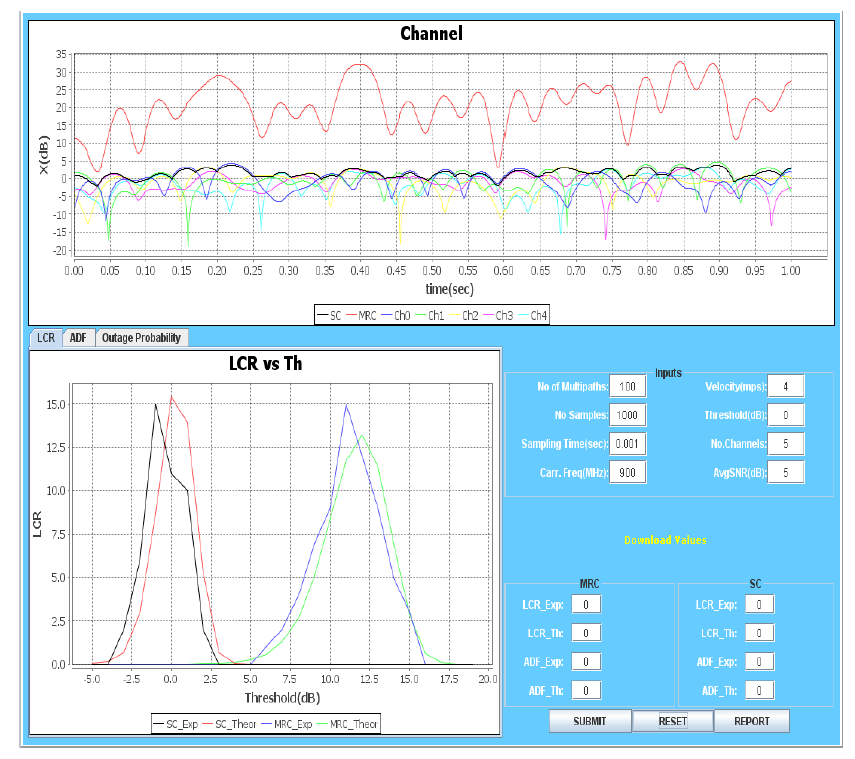

  • Step3:- Enter the input parameters value. Then click on "RESET" Button.Observed the waveform.

    Large Scale Fading

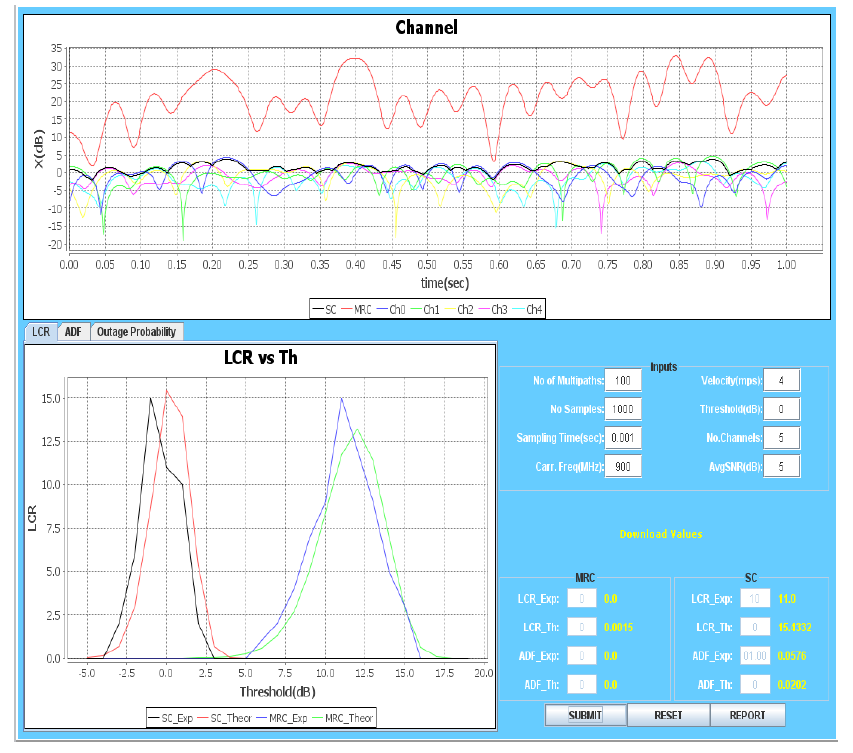

  • Step4:- Enter value of LCR Exp and ADF Exp in both MRC and SC from the waveform.Then Click on "SUBMIT" Button.

    Large Scale Fading

  • Step5:- Click on the "Report" button.

    Large Scale Fading

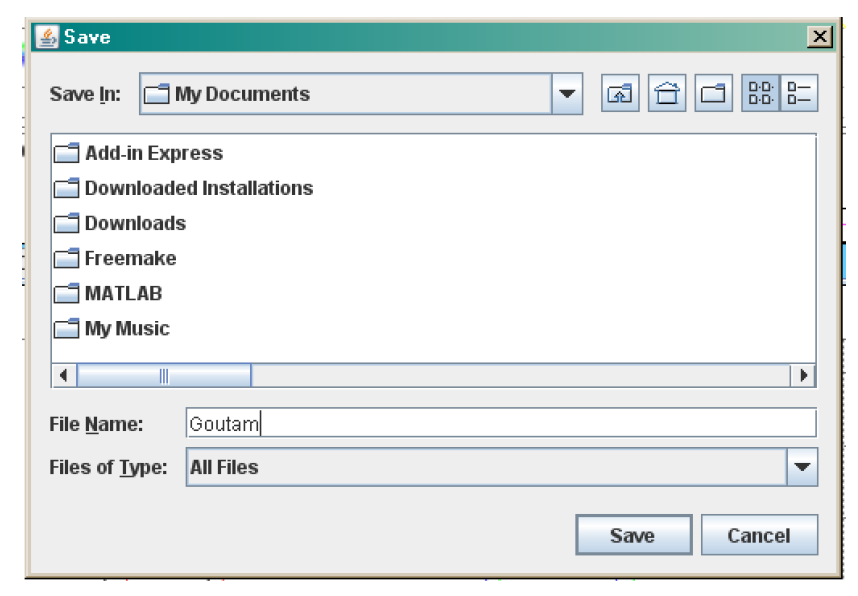

  • Step6:- PDF report of the experiment is generated.

    Large Scale Fading

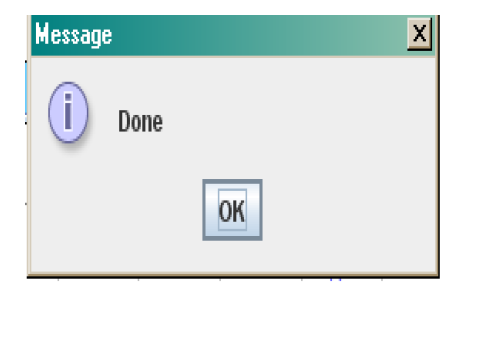

  • Step7:-After generation of the Report you will get following message.

    Large Scale Fading

  • Step8:- Click on the "Ok" and you will get your Report.

    Large Scale Fading

  • Step9:- To Redo the experiment click on "RESET" button.
