Edge triggered FF
Procedure
Circuit diagram

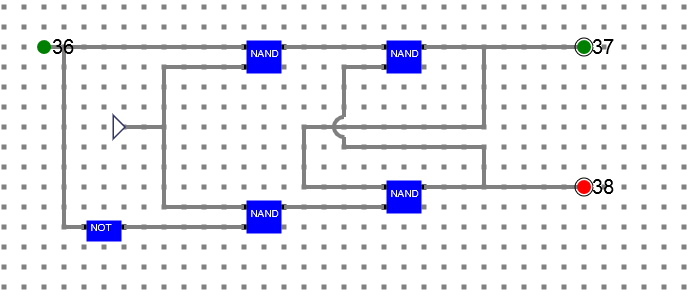

Fig1: D Flip-Flop

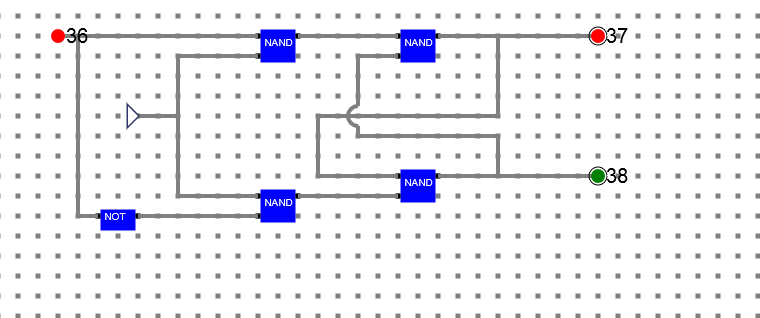

Fig1: D Flip-Flop
The circuit requires 4 NAND gates as shown and a clock.
Connectivity is also as shown in the diagram.
Refer the simulator manual on how to design the circuit
- Manual --> Click Here
