Characteristics of controlled switching power devices

1. Select the false statement:

a: SCR has three terminals: anode, cathode and gate. Explanation

Explanation

b: SCR is a four-layer semiconductor device. Explanation

Explanation

c: SCR allows current in either directions. Explanation

Explanation

d: SCR has three junctions. Explanation

Explanation

2. Select the false statement:

a: IGBT has three terminals: Collector, Emitter and Gate. Explanation

Explanation

b: IGBT is a four-layer semiconductor device. Explanation

Explanation

c: IGBT allows current in either directions. Explanation

Explanation

d: IGBT has three junctions. Explanation

Explanation

3. The properties of IGBT are a combination of which of the following two devices?

a: MOSFET and SCR Explanation

Explanation

b: MOSFET and BJT Explanation

Explanation

c: SCR and TRIAC Explanation

Explanation

d: BJT and TRIAC Explanation

Explanation

4. SCR has a:

a: PNPN structure Explanation

Explanation

b: PNP structure Explanation

Explanation

c: NPNP structure Explanation

Explanation

d: NPN structure Explanation

Explanation

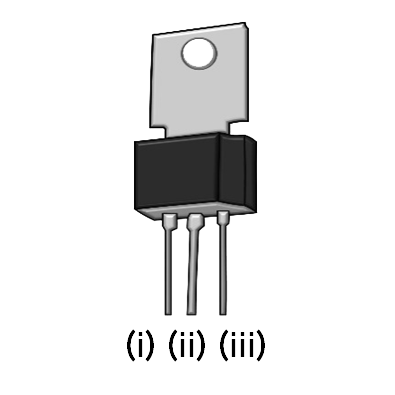

5. Identify the three terminals of SCR- anode (A), cathode (K) and gate (G) in the SCR figure given below from left-to-right.

a: (i)- cathode, (ii)- anode, (iii)- gate Explanation

Explanation

b: (i)- anode, (ii)- cathode, (iii)- gate Explanation

Explanation

c: (i)- gate, (ii)- anode, (iii)- cathode Explanation

Explanation

d: (i)- gate, (ii)- cathode, (iii)- anode Explanation

Explanation

6. In order to trigger or turn- ON a SCR, the potential difference between anode-to-cathode must be:

a: Positive Explanation

Explanation

b: Negative Explanation

Explanation

c: Zero Explanation

Explanation

d: Equal to gate-to-cathode voltage Explanation

Explanation

7. Which of the following statements differentiate the SCR from a diode?

a: It blocks current when reverse biased. Explanation

Explanation

b: It conducts when forward biased at a given gate signal. Explanation

Explanation

c: It conducts when forward biased without any gate signal. Explanation

Explanation

d: It conducts when reverse biased at a given gate signal. Explanation

Explanation

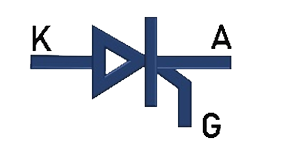

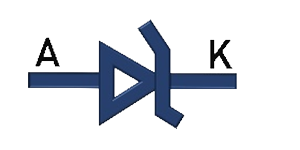

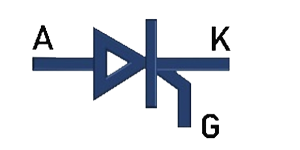

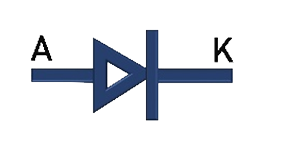

8. The correct symbolic representation of an SCR is?

Explanation

9. Choose the correct statement.

a: SCR is a fully controlled device. Explanation

Explanation

b: SCR is a semi-controlled device. Explanation

Explanation

c: SCR is a uncontrolled device. Explanation

Explanation

d: All the above statements are false. Explanation

Explanation

10. SCR is capable of blocking:

a: neither positive nor negative anode-to-cathode voltages. Explanation

Explanation

b: only positive anode-to-cathode voltages. Explanation

Explanation

c: only negative anode-to-cathode voltages. Explanation

Explanation

d: both positive and negative anode-to-cathode voltages. Explanation

Explanation

11. Which of the following statements is correct?

a: MOSFET is a voltage controlled device Explanation

Explanation

b: Switching speed of IGBT is faster than MOSFET Explanation

Explanation

c: MOSFET is a current controlled device Explanation

Explanation

d: MOSFET is suitable for line frequency AC-DC rectifiers Explanation

Explanation

12. Which of the following is the correct for MOSFET from application point of view?

a: High power, high frequency Explanation

Explanation

b: Low power, high frequency Explanation

Explanation

c: Low power, low frequency Explanation

Explanation

d: High power, low frequency Explanation

Explanation
