Heat Transfer Coefficient of a Composite Wall

Procedure

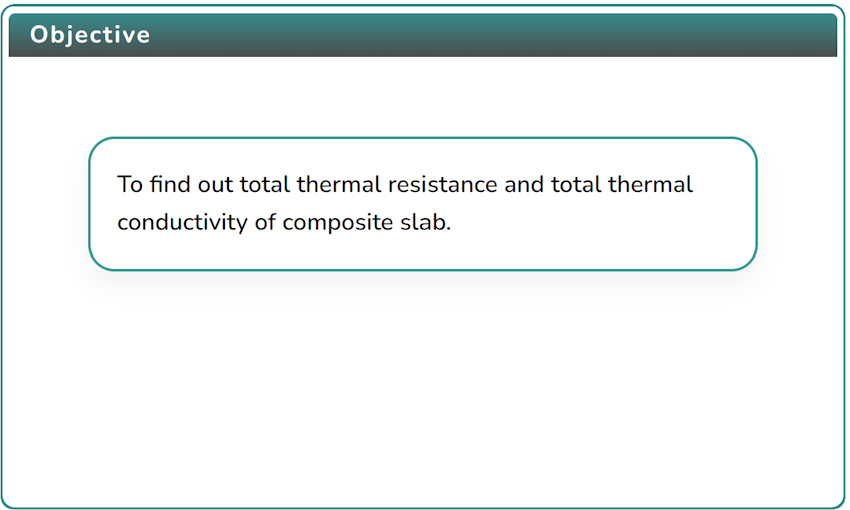

  1. Click on the Objective icon Alt text to view the Objective of the simulation.

    Alt text

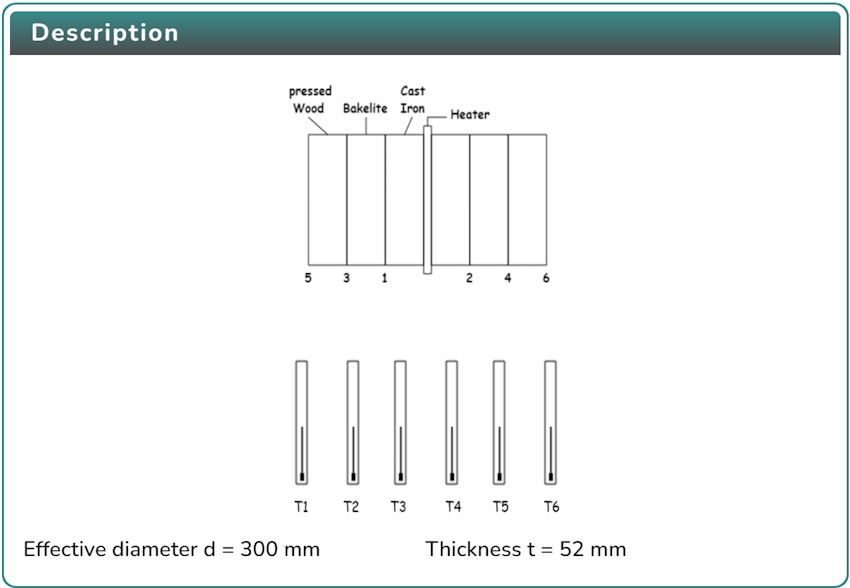

  2. Click on the Description icon Alt text to view the description of the simulation.

    Alt text

  3. Click on the Experiment icon Alt text to view the experimental setup.

    Alt text

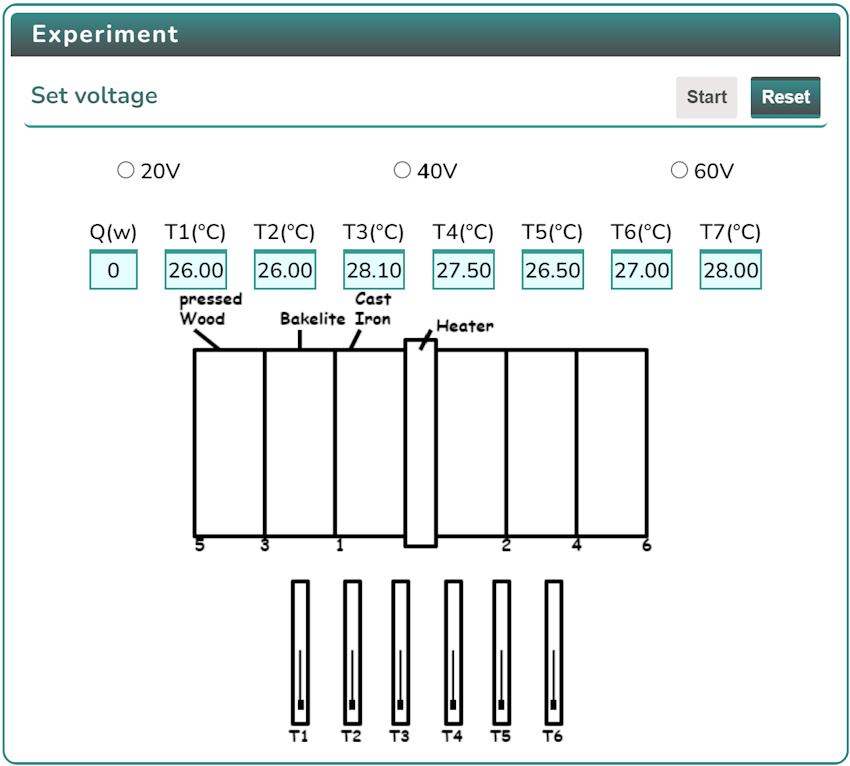

  4. Select any one voltage value and click on the Start button Alt text to perform the experiment.A voltage source is selected by the user to produce heat Q (=VI) at the centre plane, and this heat will transfer in both directions (up and down) along the normal of the plane of slabs.Click Reset button Alt text to reset the experiment.

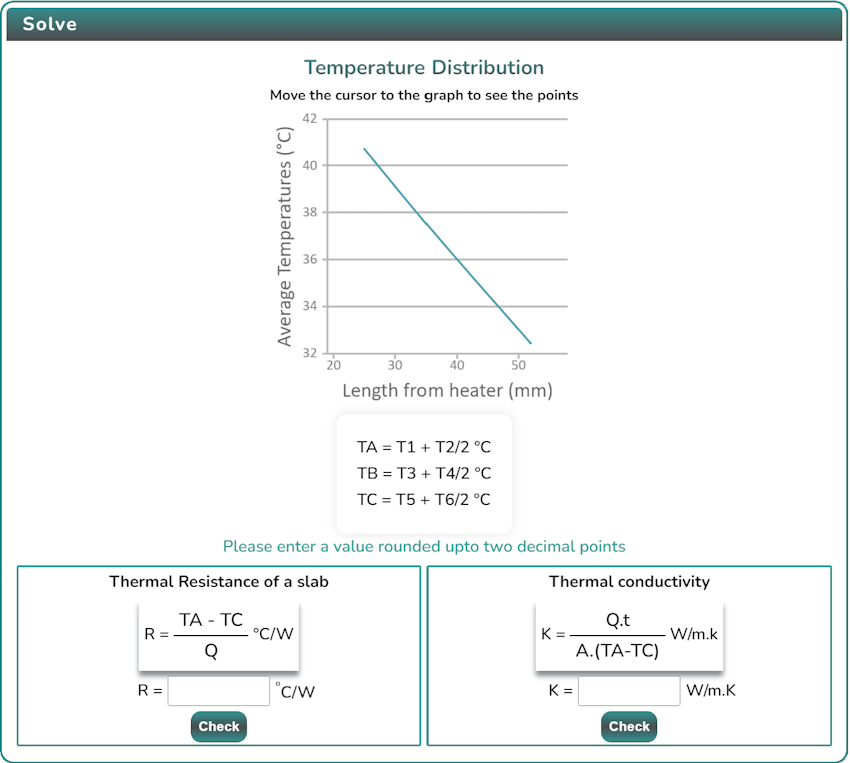

  5. After performing the experiment, click on the Solve icon Alt text,

    Alt text

  6. Calculate the result and click the Check button Alt text to Evaluate the result.
