Column Formwork PERI
Procedure

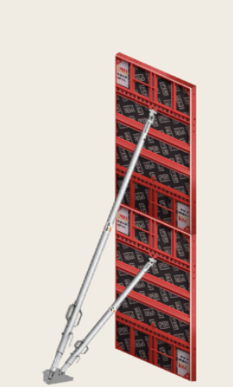

Step 1: Construct one side of a column: Installing the form panel, placing the brace kicker & erecting the push props as shown in the picture below.

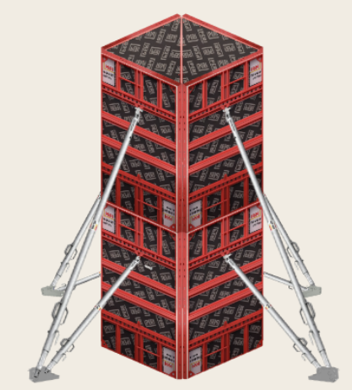

Step 2: Similarly connect remaining sides of the column: Left, Back & Right side as shown in the picture below.
Step 3: Attach external corner to connect all the sides of the column: Left, Back, Right & Front Corner.

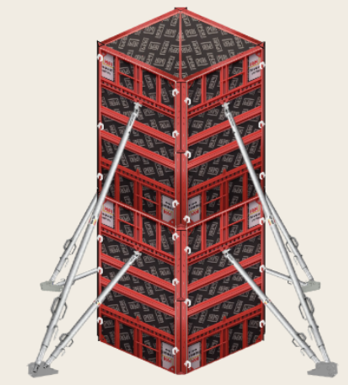

Step 4: Add Wedge pin to connect panel and corner rigidly: Left wedge pins, right wedge pins & front wedge pins as shown in the picture below.
