Background and Theory

The Batch reactor is the generic term for a type of vessel widely used in the process industries. In a batch reactor the reactants and the catalyst are placed in the reactor and the reaction is allowed to proceed for a given time whereupon the mixture of unreacted material together with the products is withdrawn. Provision for mixing may be required. In an ideal batch reactor, the concentration and temperature are assumed to be spatially uniform. In practice, the condition can be approximately realized by vigorous agitation or stirring. All the elements of the fluid spend the same amount of time in the reactor, and hence have the same residence time. From the viewpoint of thermodynamics, a batch reactor represents a closed system. The steady states of the batch reactor correspond to states of reaction equilibria.

Batch reactors are simple and needs little supporting equipment, and is therefore ideal for small scale experimental studies on reaction kinetics. Industrially it is used when relatively small amounts of material are to treated and when the product demand varies. Batch reactors are often used in the pharmaceutical industry, where small volumes of high-value products are made.

Researchers typically use a batch reactor to study reaction kinetics under ideal conditions. A batch reactor can be used to find the reaction rate constant, activation energy and order of the reaction. The data reflect the intrinsic kinetics for the reaction being investigated.

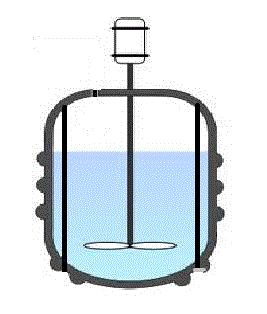

A typical batch reactor consists of a tank with an agitator and integral heating/cooling system. Liquids and solids are usually charged via connections in the top cover of the reactor. Vapors and gases also discharge through connections in the top. Liquids are usually discharged out of the bottom.

The advantages of a batch reactor lies in its versatility. A single vessel can carry out a sequence of different operations without the need to break containment. This is particularly useful when processing, toxic or highly potent compounds.

Material balance :

rate of input - rate of output- rate of disappearance = rate of accumulation

A batch reactor has neither inflow nor outflow of reactants or products while the reaction is being carried out. .The resulting general mole balance on species j is

If the reaction mixture is perfectly mixed so that there is no variation in the relate of reaction throughout the reactor volume, r_j

can be taken out of the integral and the mole balance can be written as

Consider an elementary reaction ...aA + bB --> cC + dD

Rate of disappearance of A=-r_A=dN_A/dt

Where N_A is the number of moles in the reactor at any time Consatnt volume conditions can be assumed for most of the liquid phase reactions or for gas phase reactions with no change in number of moles Then N_A=V*C_A where C_A is the concentration of A in the reactor. Then -r_A=dC_A/dt.
Then for the reaction given above

Where, k= rate constant, a is the order of reaction w.r.t A and b is the order w.r.t B. If the order of the reaction w.r.t each reactant are equal to the stoichiometric coefficients of these reactants, then the reaction is elementary. Else it is non elementary.

Order and the rate constants of the reaction can be obtained by experiments. Mainly two types of analysis may be used for rate law determination.

(a) Integral method of analysis
(b) Differential method of analysis.

Integral method of analysis
Consider a reaction A+B --> C+D

Assume a rate equation.

Like

where k is the rate constant.
In terms of conversion and using the

Where M=C_Bo/C_Ao and X_A is the conversion of A.
M is the initial ratio of concentrations of B (C _Bo)to A(C_Ao) in the reactor.
After breakdown into partial fractions, integration and rearrangement, the final result is

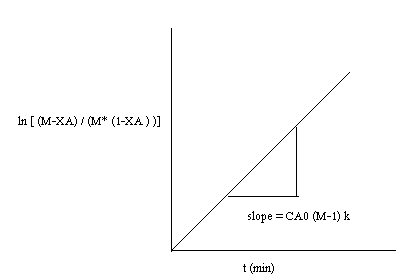

Plot

Where ,t= time , M = C_Bo/C_Ao,

  XA is conversation of A at given time

The above equation is valid for M>1.

If the data points fits well into a straight line then the assumption of second order kinetics is true. The rate constant may be calculated from the slope of the line .

If M=1 then,

The rate equation may be approximated as

Then the integrated form of the rate equation is

Then plot

If the rate equation assumed is right, then the plot fits well into a straight line with slope=k.
b) Differetial method of analysis.

• Hypothesize a rate equation. Let this be . where n is the assumed order.
• Obtain concentration(C_A) vs. time data from the batch experiments. Draw C_A vs. time. Draw tangents at various points . Find the slopes. These slopes are dC_A/dt are the rates of reaction(-r_A) at these concentrations.
• Taking logs on both sides of the rate equation will give ln(-r_A)=lnk+n.

ln(-C_A)
• Plot of ln(-r_A) vs ln(-C_A) will give a straight line with slope n (order) if the assumed form of rate equation is correct. k may be obtained from the intercept.

The reaction rate, r, is generally dependent on the reactant concentration and the rate constant (k). The rate constant can be determined by using a known empirical reaction rates that is adjusted for temperature using the Arrhenius temperature dependence. Generally, as the temperature increases so does the rate at which the reaction occurs.
Temperature dependency of rate is given by Arrhenius equation.

Where k is the rate constant. k₀ is the frequency factor. E is the activation energy, R is the gas constant ,T is the absolute temperature.
