This page provides a comprehensive overview of ALU design and implementation in Verilog, focusing on arithmetic and logical operations with different data types and precision levels.

Understanding ALU

An Arithmetic Logic Unit (ALU) is a fundamental component in digital systems that performs arithmetic and logical operations. The ALU is a critical part of the processor that handles all mathematical and logical computations.

Basic ALU Operations

The ALU performs the following fundamental operations:

1. Arithmetic Operations

   • Addition ($A + B$)
   • Subtraction ($A - B$)
   • Multiplication ($A \times B$)
   • Division ($A \div B$)

2. Logical Operations

   • AND ($A \cdot B$)
   • OR ($A + B$)
   • XOR ($A \oplus B$)
   • NOT ($\overline{A}$)

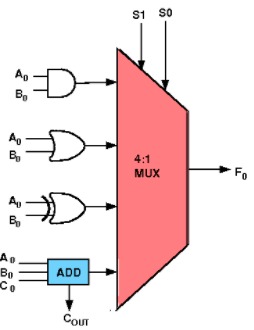

ALU Function Table

$S_1$	$S_0$	Operation	Output	Carry
$0$	$0$	Sum	$(A + B)\%2$	$C_{out}$
$0$	$1$	AND	$A \cdot B$	-
$1$	$0$	OR	$A + B$	-
$1$	$1$	XOR	$A \oplus B$	-

Data Types and Precision

IEEE 754 Floating-Point Formats

1. Half Precision (16-bit)

   • 1 sign bit
   • 5 exponent bits
   • 10 mantissa bits
   • Range: $\pm 2^{-14}$ to $\pm 65504$
   • Precision: ~3.3 decimal digits

2. Single Precision (32-bit)

   • 1 sign bit
   • 8 exponent bits
   • 23 mantissa bits
   • Range: $\pm 2^{-126}$ to $\pm 2^{128}$
   • Precision: ~7.2 decimal digits

3. Double Precision (64-bit)

   • 1 sign bit
   • 11 exponent bits
   • 52 mantissa bits
   • Range: $\pm 2^{-1022}$ to $\pm 2^{1024}$
   • Precision: ~15.9 decimal digits

Fixed-Point Representation

1. Q-Format

   • Q$m.n$ format where:
     • $m$: number of integer bits
     • $n$: number of fractional bits
   • Total bits = $m + n + 1$ (including sign bit)
   • Range: $[-2^m, 2^m - 2^{-n}]$
   • Resolution: $2^{-n}$

2. Common Q-Formats

   • Q15.16: 32-bit fixed-point
   • Q7.8: 16-bit fixed-point
   • Q3.4: 8-bit fixed-point

ALU Implementation Considerations

1. Data Type Selection

// Parameterized ALU with configurable data width
          module alu #(
              parameter DATA_WIDTH = 32,
              parameter PRECISION = "SINGLE"  // "HALF", "SINGLE", "DOUBLE"
          )(
              input [DATA_WIDTH-1:0] A,
              input [DATA_WIDTH-1:0] B,
              input [1:0] S,  // Operation select
              output reg [DATA_WIDTH-1:0] Y,
              output reg C  // Carry/Overflow
          );
              // Implementation details...
          endmodule


2. Precision Effects

1. Arithmetic Operations

   • Addition/Subtraction:
     • Half precision: 16-bit operations
     • Single precision: 32-bit operations
     • Double precision: 64-bit operations

2. Logical Operations

   • Bit-wise operations remain same for all precisions
   • Only data width changes

3. Performance Impact

   • Higher precision requires:
     • More hardware resources
     • Longer propagation delays
     • Higher power consumption

3. Error Handling

1. Overflow Detection

   • For arithmetic operations: $$C_{out} = \begin{cases} 1 & \text{if } A + B > 2^n - 1 \\ 0 & \text{otherwise} \end{cases}$$

2. Underflow Detection

   • For floating-point operations: $$U_{flag} = \begin{cases} 1 & \text{if } |A| < 2^{-126} \text{ (single)} \\ 1 & \text{if } |A| < 2^{-1022} \text{ (double)} \\ 0 & \text{otherwise} \end{cases}$$

Verilog Implementation

Basic ALU Structure

module alu(
              input [31:0] A,
              input [31:0] B,
              input [1:0] S,
              output reg [31:0] Y,
              output reg C
          );
              always @(*) begin
                  case(S)
                      2'b00: {C, Y} = A + B;        // Addition
                      2'b01: Y = A & B;             // AND
                      2'b10: Y = A | B;             // OR
                      2'b11: Y = A ^ B;             // XOR
                  endcase
              end
          endmodule


Precision-Specific Implementation

module alu_precision #(
              parameter PRECISION = "SINGLE"
          )(
              input [31:0] A,
              input [31:0] B,
              input [1:0] S,
              output reg [31:0] Y,
              output reg C
          );
              // Precision-specific implementation
              generate
                  if (PRECISION == "HALF") begin
                      // 16-bit operations
                  end
                  else if (PRECISION == "SINGLE") begin
                      // 32-bit operations
                  end
                  else if (PRECISION == "DOUBLE") begin
                      // 64-bit operations
                  end
              endgenerate
          endmodule


Performance Considerations

1. Timing

   • Critical path delay increases with precision
   • Pipeline stages may be needed for higher precision

2. Area

   • Resource usage scales with data width
   • Additional logic needed for error handling

3. Power

   • Dynamic power increases with precision
   • Static power affected by circuit complexity

Applications

1. General-Purpose Computing

   • CPU/GPU arithmetic units
   • Digital signal processing

2. Specialized Computing

   • Neural network accelerators
   • Cryptography engines

3. Embedded Systems

   • Microcontrollers
   • Digital signal processors

---

Note: This theory guide focuses on the fundamental concepts of ALU design and implementation. For practical implementation steps, refer to the procedure.md file.
