Procedure to Perform the wear test.
Step 1: Select the material on which you want to perform the experiment .
Step 2: Select the "Input ball" button To bring the ball near the pin.
Step 3: Insert the ball inside the pin Using the button.
Step 4: Now put the pin on the tribometer Using the button.
Step 5: Select the "Input load (10N)" button put the load on the pin.
Step 6: Now start the rotation of disk to perform the experiment.

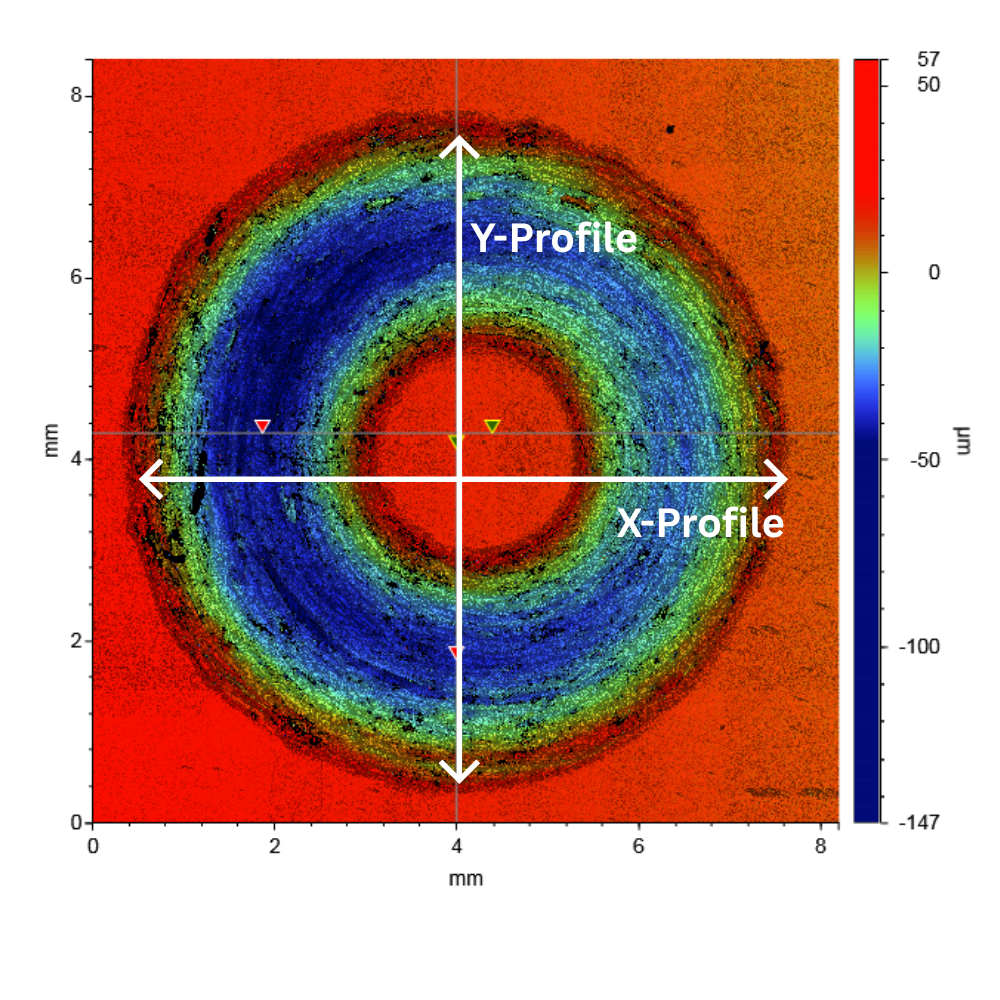

Step 7: Use the result button to get theΒ finalΒ output with the help of Optical profilometer for wear volume estimation.
Step 8: using the result of optical profilometer we can calculate the wear rate by the following equation.
Specific wear rate can then be calculated using Archard equation as:
ππππππππ π€πππ πππ‘π=(π€πππ π£πππ’ππ)/(ππππΓπ ππππππ πππ π‘ππππ)
THANK YOU!
β° Open Procedure
Material Testing
Input Parameters:
Material
Input Ball
Insert The Ball
pin on tribometer
Input Load (10N)
Start Rotation
Show Result
PIN-ON-DISC TRIBOMETER
OUTPUT:
