TORSION TEST ON MILD STEEL
Objective
To study the mechanical properties of mild steel under torsion.

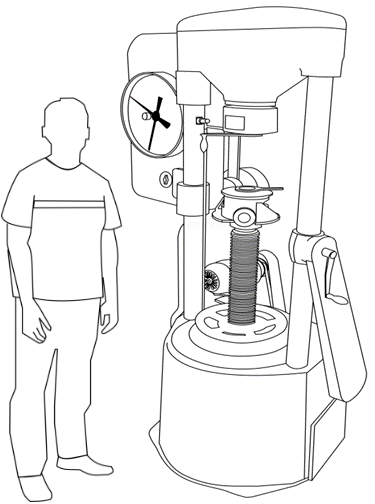

Apparatus used:
Torsion testing machine,Troptometer,Micrometer,Scale.
STEP
1
Measure the Initial Diameter of the torsion test sample at two or three places and the average value is obtained.
Torsion Test Sample
STEP
2
The gauge length of the beam is restricted at 180mm.
STEP
3
Now the specimen is chalked out on the gauge length for understanding the effect of torsion.
STEP 4

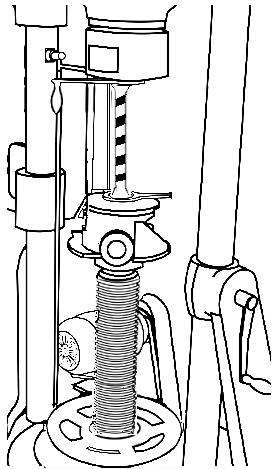

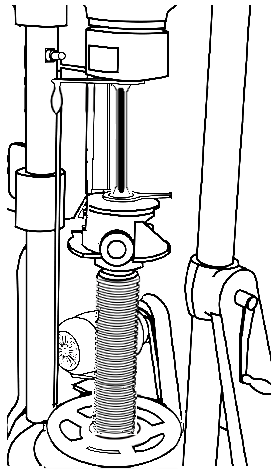

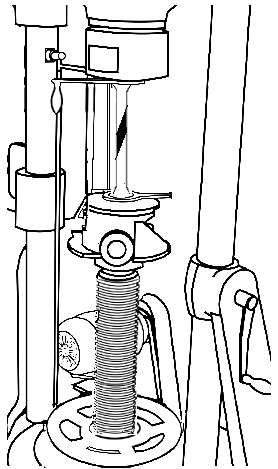

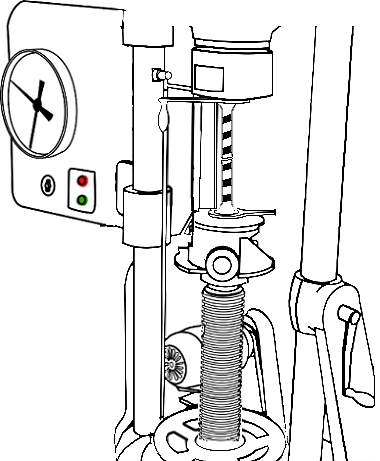

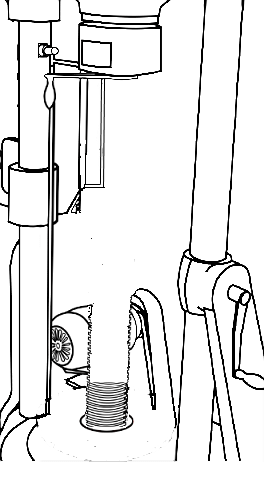

Insert the specimen into its position within the torsional experimental setup.
Drag the Specimen
STEP 5

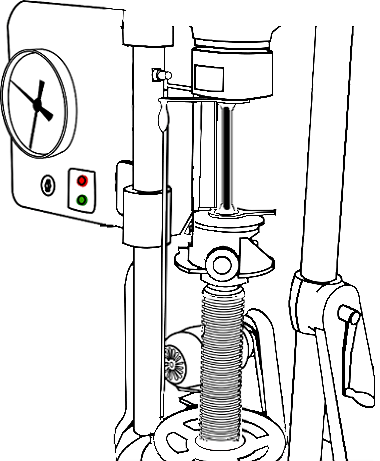

Start the motor and slowly apply the twisting load on the specimen.
STEP 6

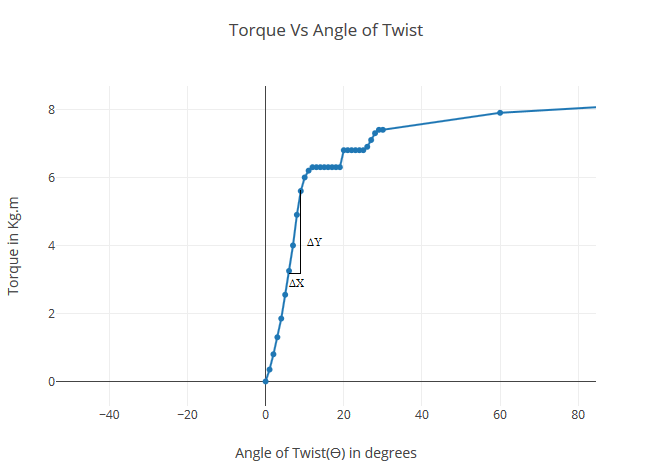

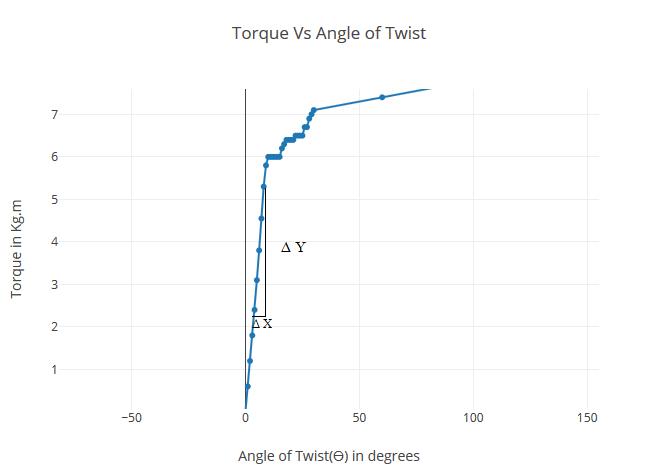

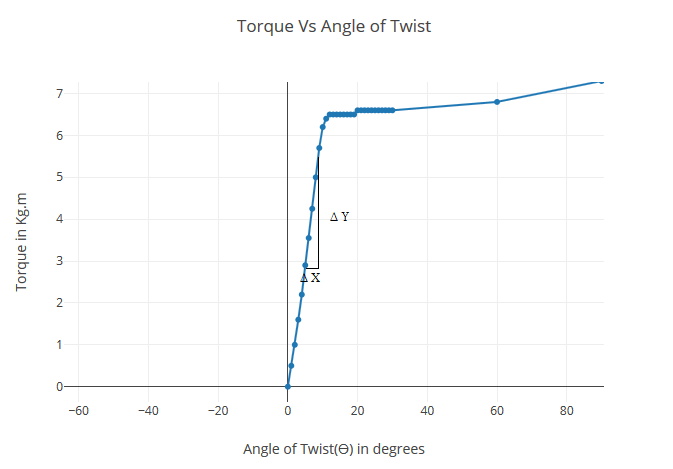

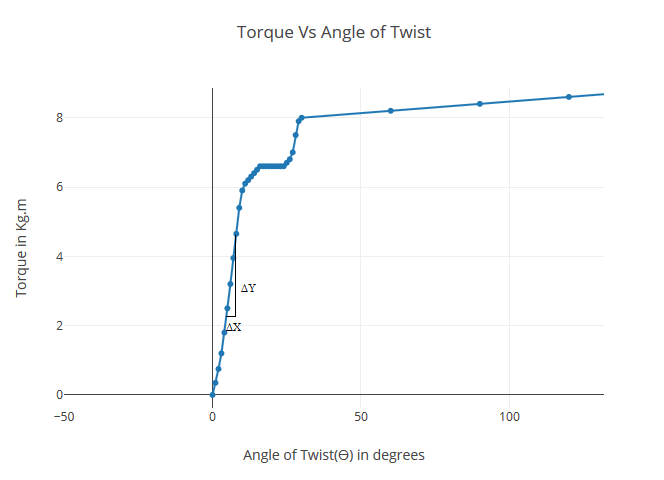

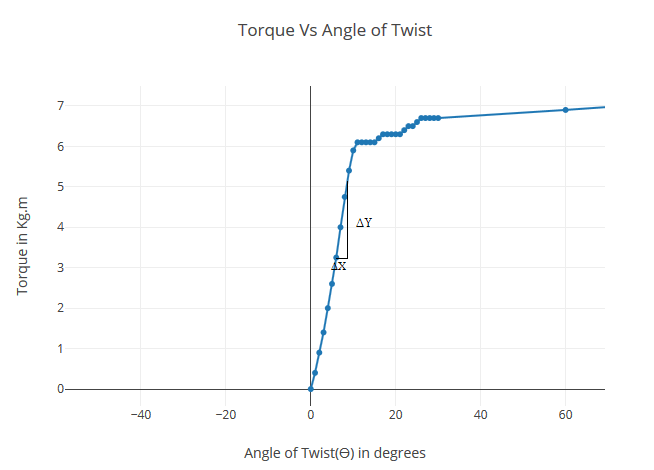

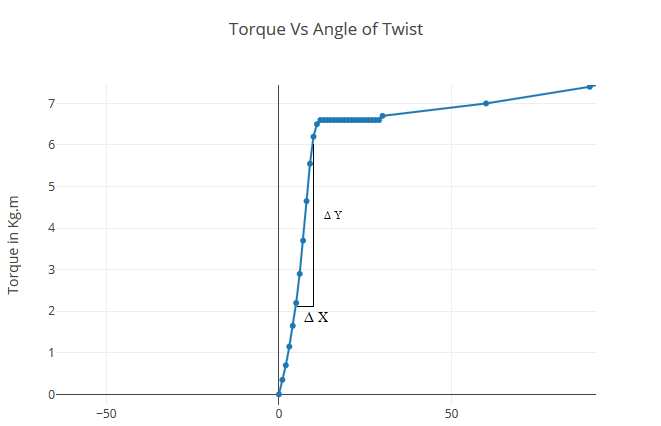

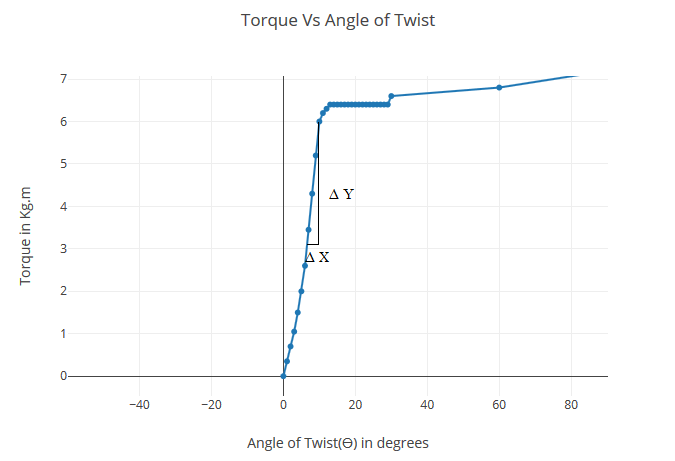

Graph.
STEP 6

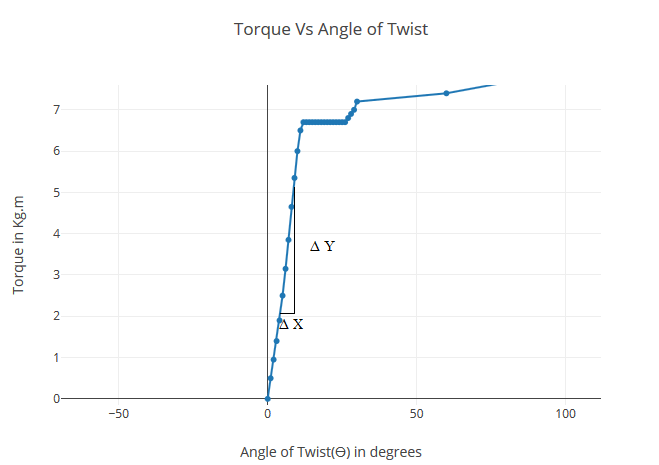

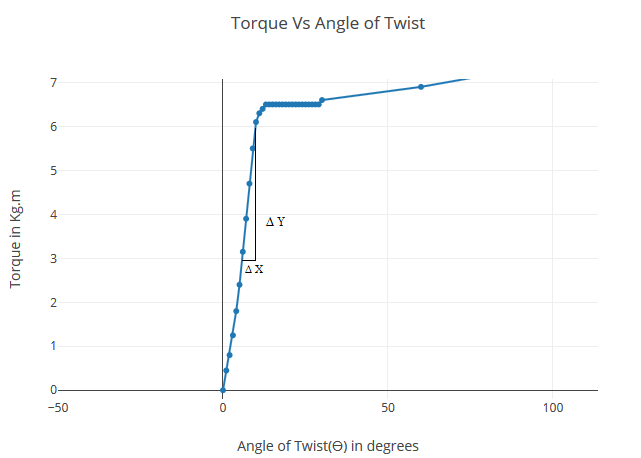

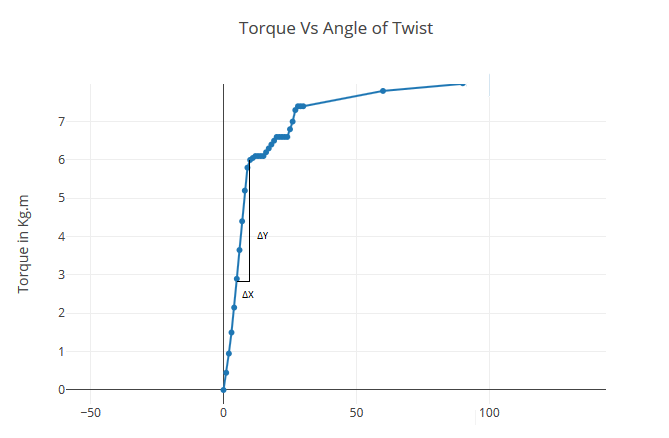

Graph.
STEP 7
Calculations.
| Initial Diameter(mm) | |
|---|---|
| Gauge Length(mm) | |
| Polar Moment of Inertia(mm4) | |
| Yield Stress(N/mm2) | |
| Modulus of Rupture(N/mm2) | |
| Modulus of Rigidity(GPa) |
| Result | Actual Value | Entered Value | Percentage Error | Polar Moment of Inertia(mm4) | Yield Stress(N/mm2) | Modulus of Rupture(N/mm2) | Modulus of Rigidity(GPa) |
|---|
