Tensile strength test of core sand
Click on Sand to prepare the Specimen
Sand
Sand
Click on Dial Indicator
Dial Indicator
Dial Indicator
Click on Specimen-1

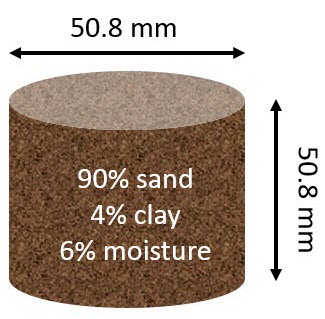

Specimen-1
Specimen-1
Click on Specimen-2

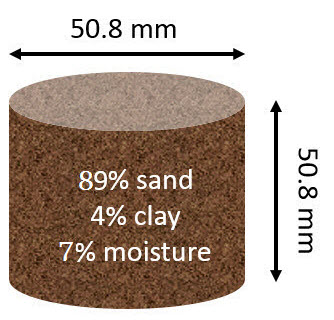

Specimen-2
Specimen-2
Click on Specimen-3

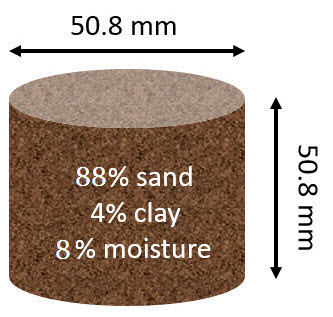

Specimen-3
Specimen-3
Click on Result
Observations
| %Sand | %Clay | %Moisture | %Strength (kg/cm2) |
|---|---|---|---|
| 90 | 4 | 6 | 1.7 |
| 89 | 4 | 7 | 1.8 |
| 88 | 4 | 8 | 1.6 |

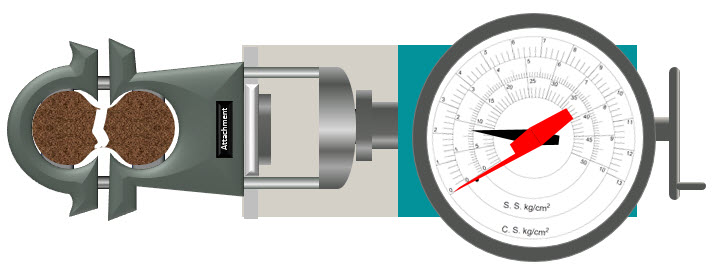

Tensile Testing Tool
Spindle
Sand
