Optical Power Measurements
APPARATUS:

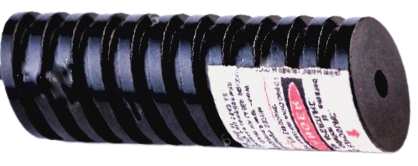

He-Ne Laser
Glass screen
Power meter
INSTRUCTIONS
×
Instructions

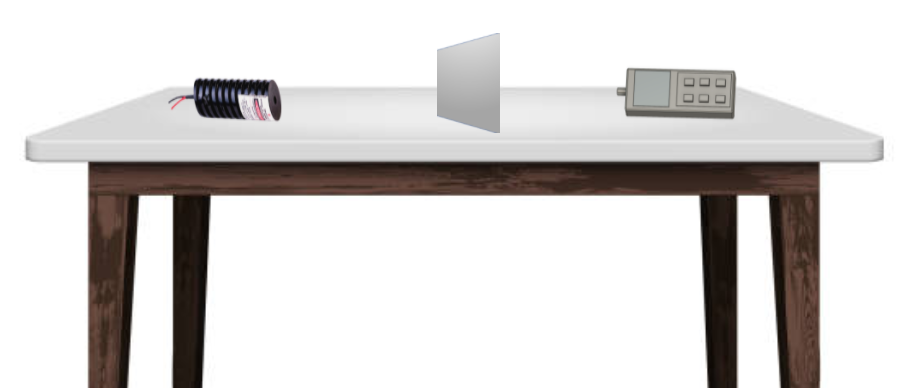

Arrange the apparatus as shown above.
Instructions:
Only drag and drop objects displaying this(
) cursor on the screen.
Do not drag the object displaying this cursor(
).It will be unlocked later.
To reset screen use
button.
After completely arranging the apparatus click
button to start the experiment.
Note:
Do not start before properly arranging the apparatus onto the table.
