Instructions
Step 1: Select Sample
Step 2: Adjust machine and place the sample
Drag the sample into the machine.
Step 3: Start the test.
Click below buttons to start the machine.
Perform Test 1
Next Sample
Temperature (C)
Impact Energy (J)
Step 4: Results.

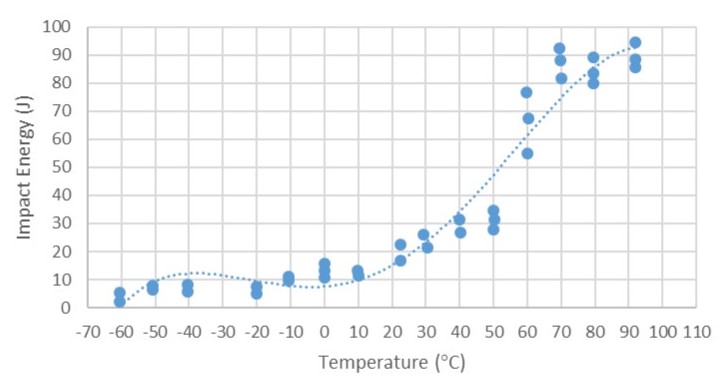

Different characteristics temperatures obtained from the curve obtained from Impact test.
FTP (T1)
90 ℃
NDT (T5)
-15 ℃
DTT (T4)
25 J
T3 (average of lower & upper half shelves)
37.5 ℃
Step 5: Activity
Click next button to continue.
Next
