HYDRAULIC CONDUCTIVITY OF AQUIFER BY FALLING HEAD
Objective:
To determine coefficient of permeability of given soil sample by falling head permeability test.
Apparatus used:
Permeameter, filter paper, porous stones, water tank, stand pipe, timer, beakers, graduated measuring cylinder, connecting water pipes.
Description
Permeability is the property of soil which allows the water to percolate through its continuously connected voids.
Coefficient of permeability is equal to the rate of flow of water through unit cross sectional area under unit hydraulic gradient.

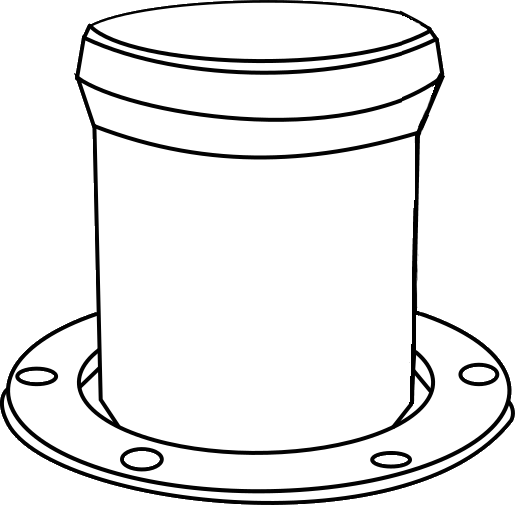

Measure the inner diameter and height of the mould, then calculate the volume of the mould.
| Area of mould, A | = π × d2⁄4 = | cm2 | ||||
| Volume of mould, V | = A × L = | cm3 |

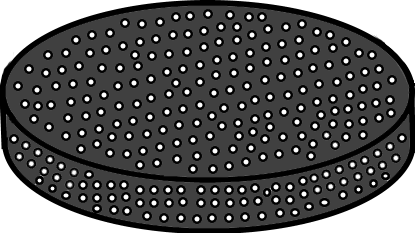

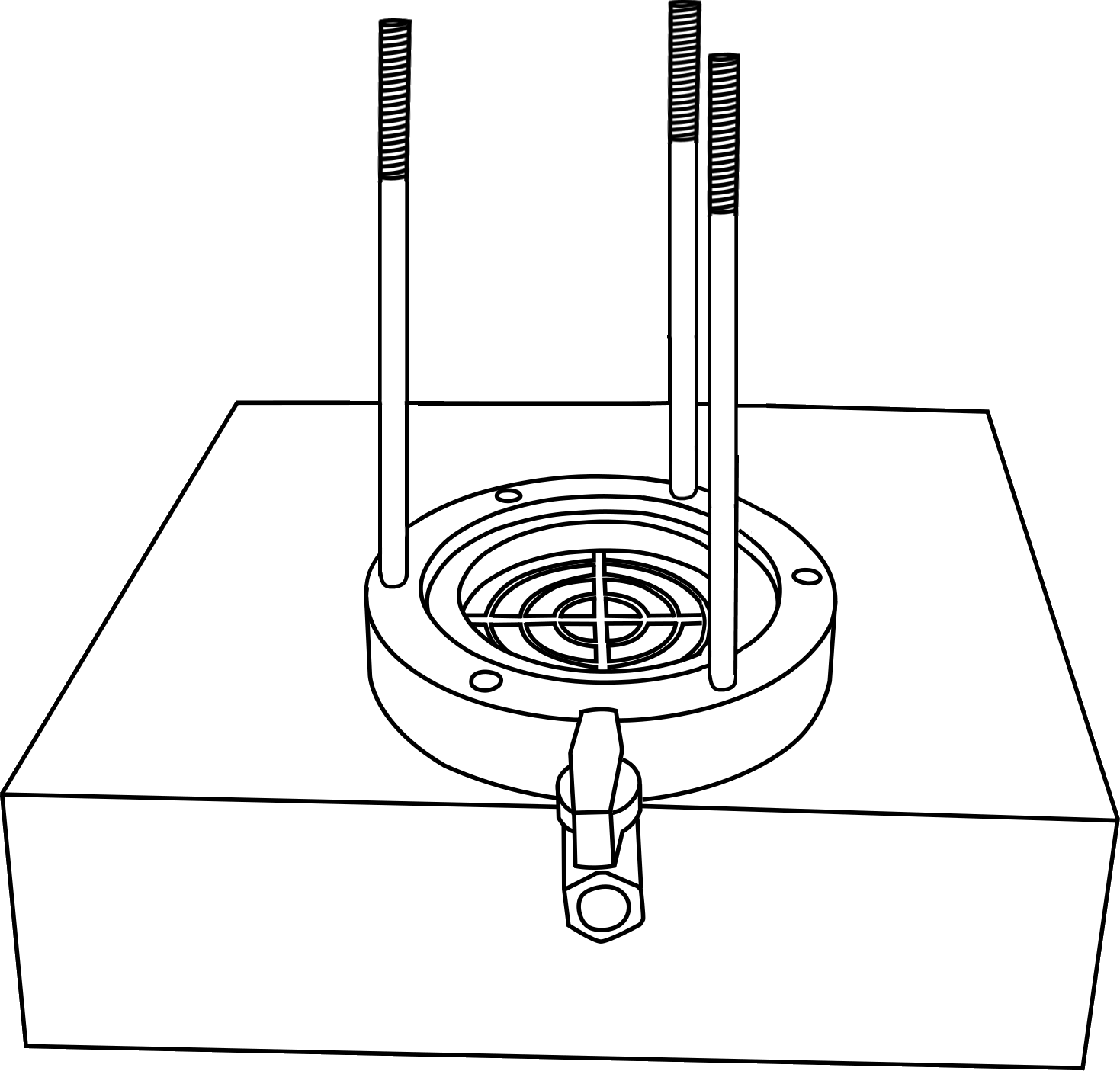

Place the sealing gasket and the porous stone inside the groove of the baseplate.
Fix the mould on the base plate. Using the nut and bolt mechanism completely fasten the bolts to make the permeameter completely leak proof and then place a filter paper inside the mould.
Pour the soil sample into the mould in 3 layers with 5 blows to each layer.

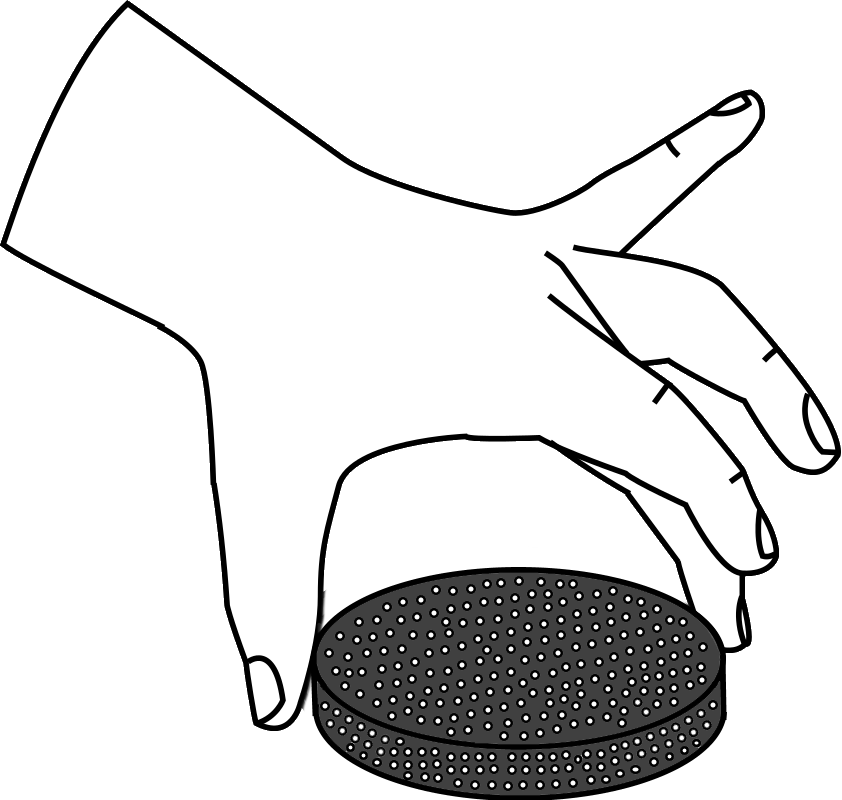

Place a filter paper on top of the soil and then place a porous stone on top of it.

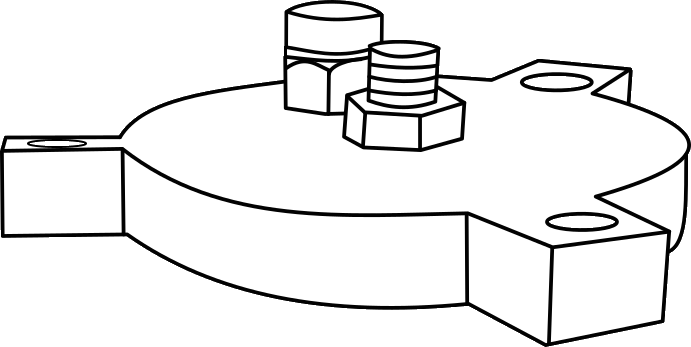

Insert the sealing gasket into the top plate and place it above the mould. Then using the nut and screw mechanism completely fasten the bolts to make the permeameter completely leak proof.

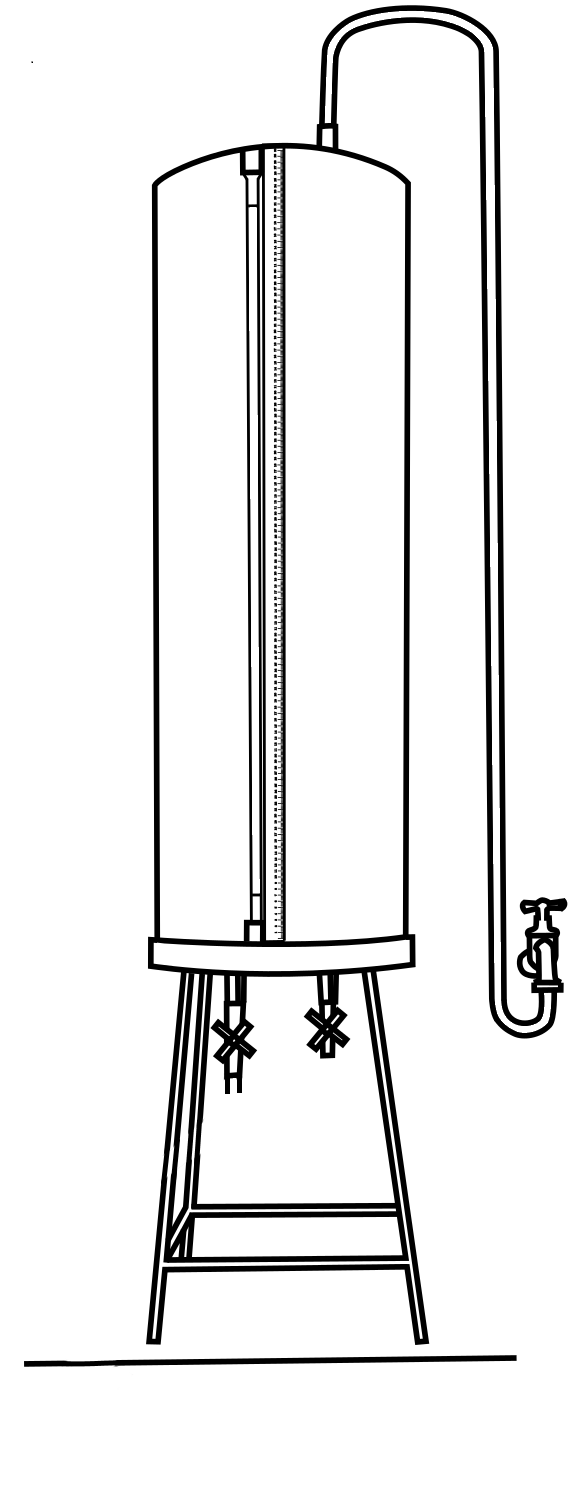

Now connect the water pipe from the overhead tank to the bottom outlet pipe of the permeameter and also open the air release valve.
Allow the water to fill inside the permeameter and all the air voids also will get escaped through the air release valve. Once water starts to flow through the air release valve, stop the water supply and close the air release valve.
Select the diameter of the pipe

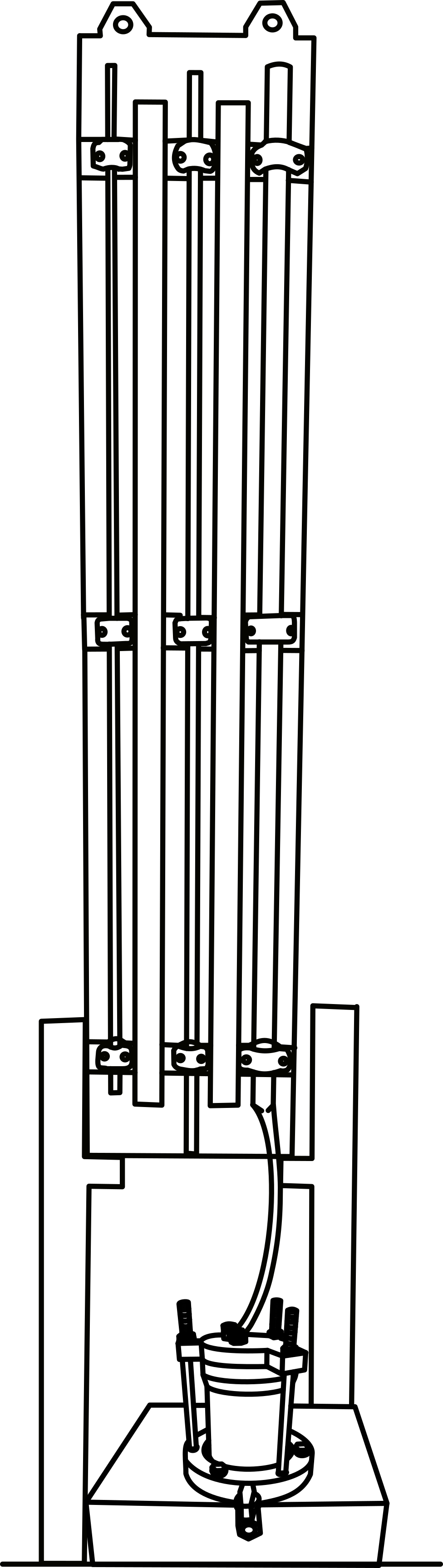

Fill the water in the standpipe and connect the water pipe to the inlet of the permeameter.

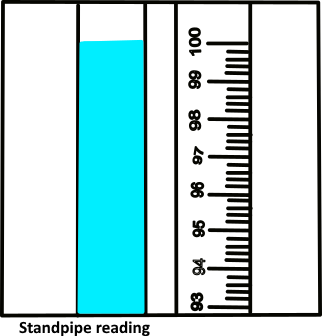

Allow the water to flow through the pipe, and note down the time taken for the water level to reduce by a fixed length and repeat the process for 3 trials.
| Trial | Stand pipe | time(s) | |
|---|---|---|---|
| h1(cm) | h2(cm) | ||
| Trial | Stand pipe | time(s) | |
|---|---|---|---|
| h1(cm) | h2(cm) | ||
Calculations:
K = 2.303 * a * L⁄A*t log(h1⁄h2 )
| Trial | Stand pipe | time | Coefficient of permeability, K*10-3 (cm/sec) | Kavg*10-3 (cm/sec) | |
|---|---|---|---|---|---|
| h1(cm) | h2(cm) | ||||
| T1 | 100 | 90 | 12 | ||
| 90 | 80 | 13 | |||
| 80 | 70 | 15 | |||
| T2 | 100 | 85 | 18 | ||
| 85 | 70 | 21 | |||
| 70 | 55 | 26 | T3 | 100 | 80 | 24 |
| 80 | 60 | 32 | |||
| 60 | 40 | 45 | |||
Please Enter Value to proceed Please Enter Value to proceed
| Trial | Stand pipe | time | Coefficient of permeability,K*10-4 (cm/sec) | Kavg*10-4 (cm/sec) | |
|---|---|---|---|---|---|
| h1(cm) | h2(cm) | ||||
| T1 | 100 | 90 | 24 | ||
| 90 | 80 | 27 | |||
| 80 | 70 | 30 | |||
| T2 | 100 | 85 | 37 | ||
| 85 | 70 | 44 | |||
| 70 | 55 | 55 | T3 | 100 | 80 | 51 |
| 80 | 60 | 66 | |||
| 60 | 40 | 94 | |||
Please Enter Value to proceed Please Enter Value to proceed
Inference:
As the value of coefficient of permeability is 3.64x10-3 (cm/sec). The value lies between 10-3 to 10-4 the soil can be classified as silty sand.
Inference:
As the value of coefficient of permeability is 4.40x10-4 (cm/sec). The value lies between 10-3 to 10-4 the soil can be classified as silty sand.
