1) Connect the Supply(+5V) to the IC.(Switch ON the power button)

2) Press the switches for inputs "A","B" and "Bin".

The switch in ON state is and the switch in OFF state is .

3) Click "Add" to obtain the truth table for diffrent inputs.

4)After obtainig truth table Click "Print".

Experiment to perform logic of Full Subtractor on kit

Input A

Input B

Bin

Vcc: +5V

R1: 330 ohm

R2: 330 ohm

GND

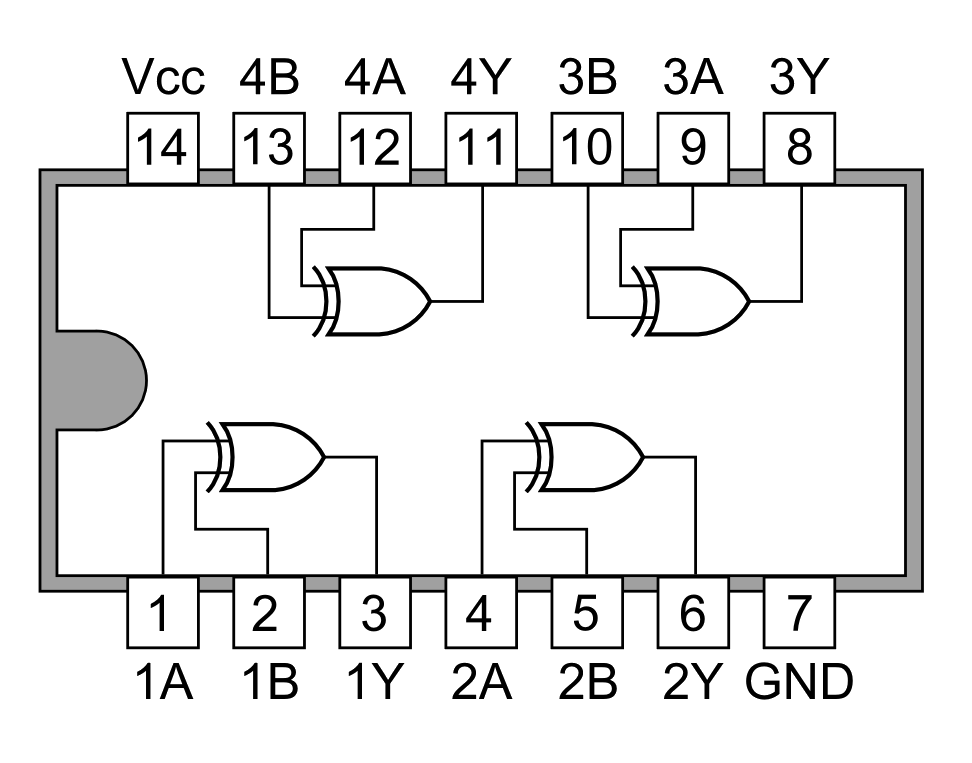

7486(XORGate)

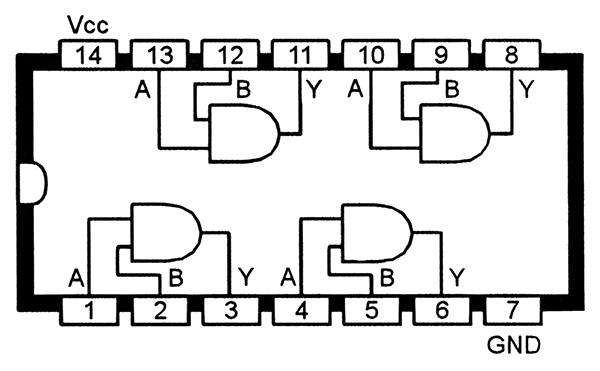

7408(ANDGate)

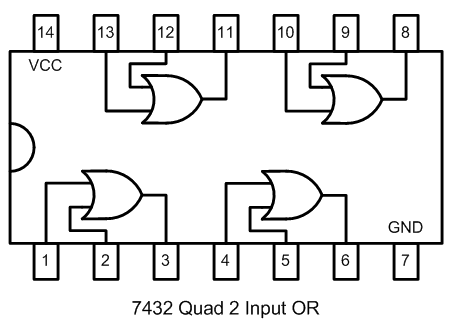

7432(ORGate)

GND

Difference (D)

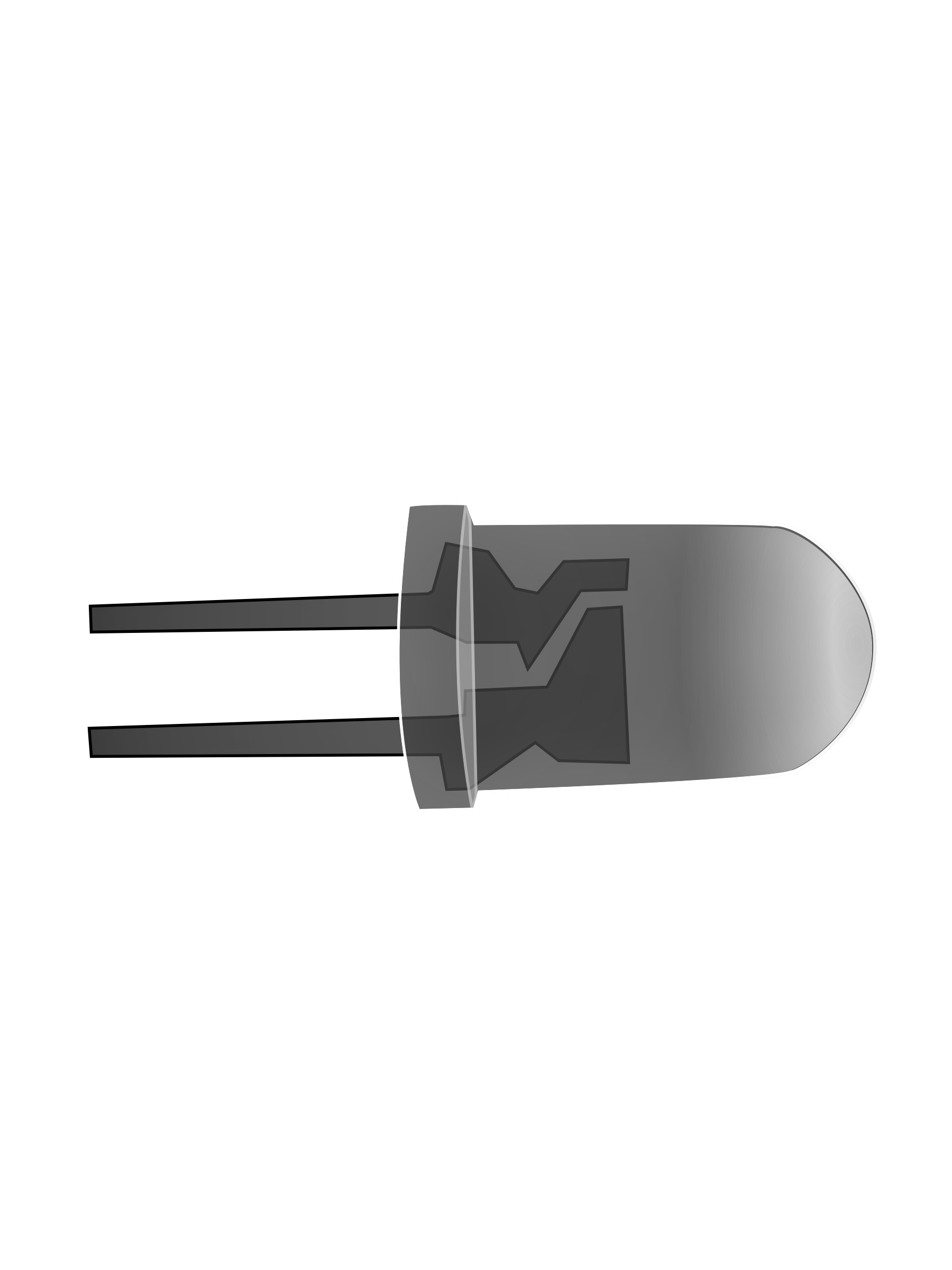

LED1

Bout

LED2












      TRUTH TABLE

Serial No. INPUT A INPUT B Bin Difference (D) Bout

POWER SWITCH
