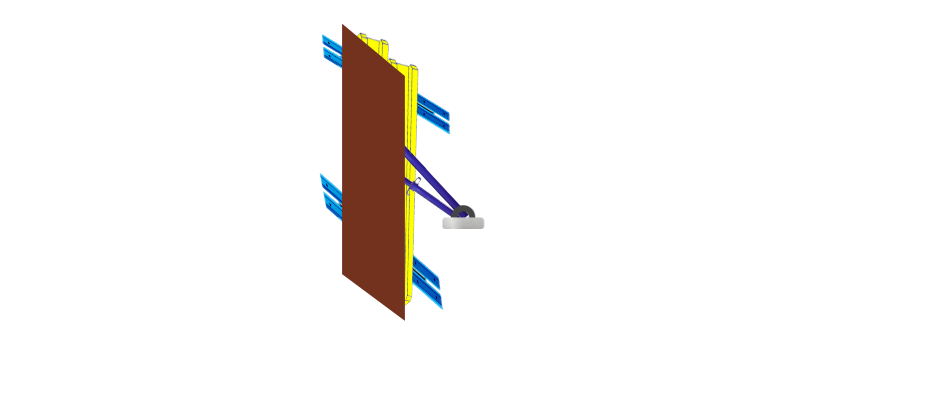

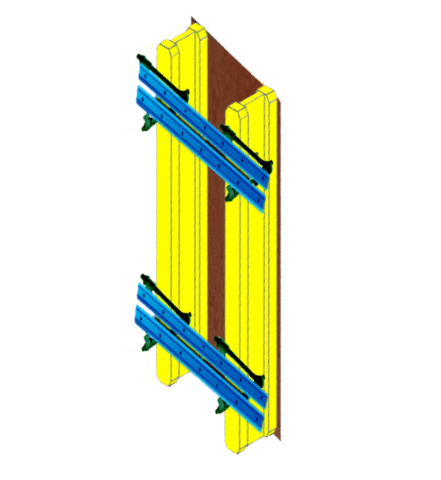

Column Formwork
Objective:

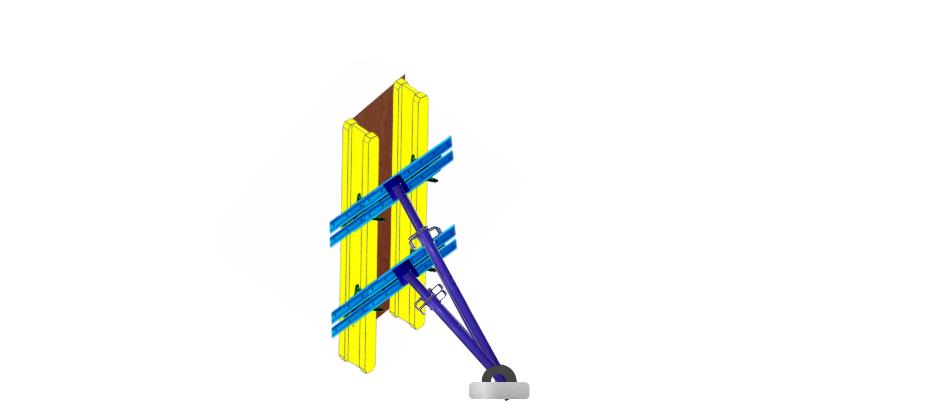

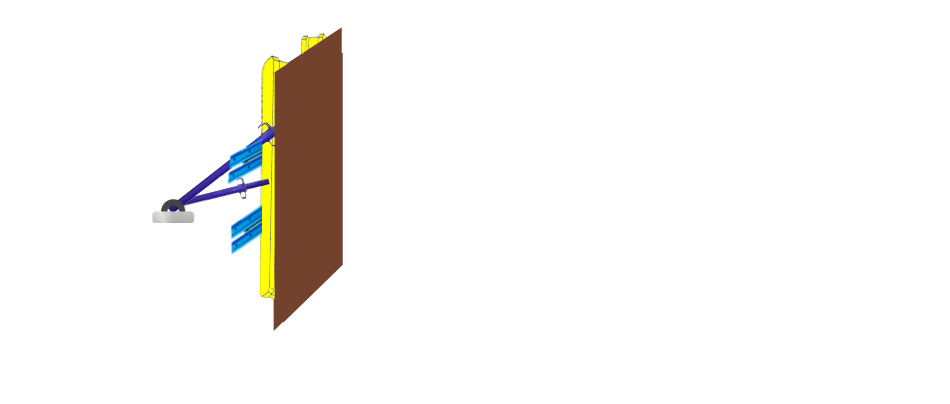

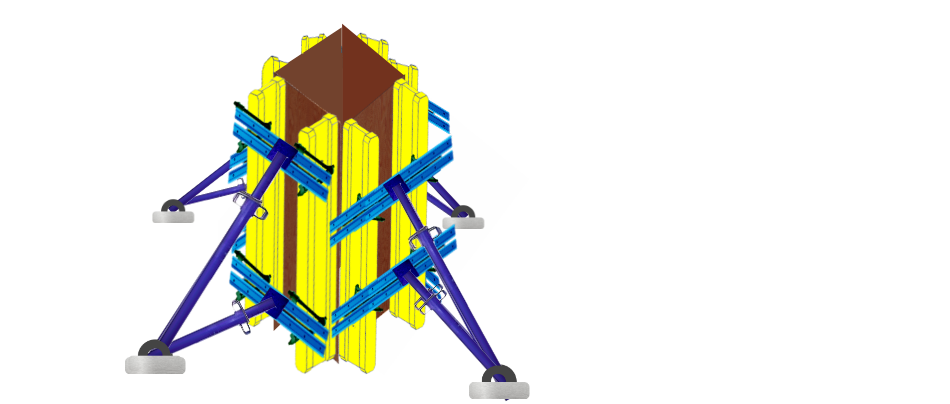

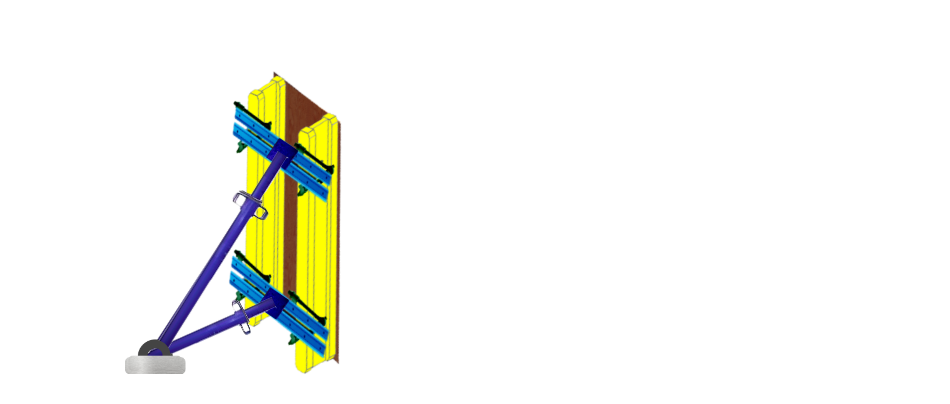

To Set the Column Formwork with support.

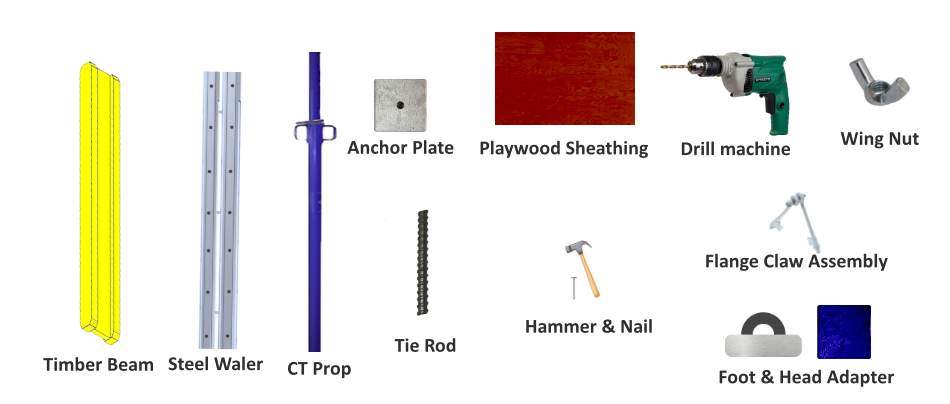

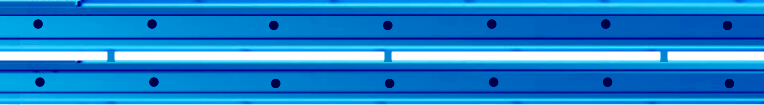

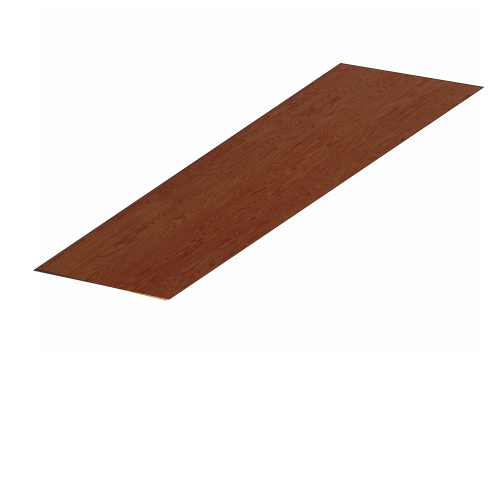

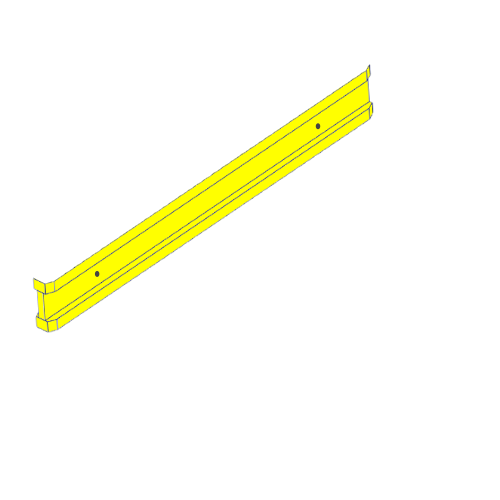

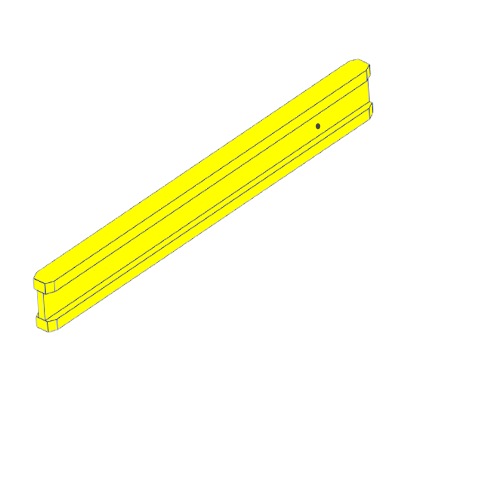

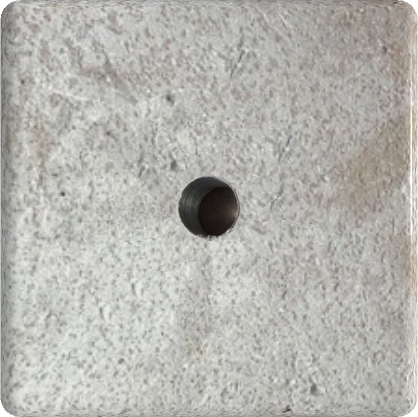

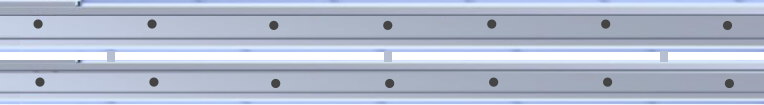

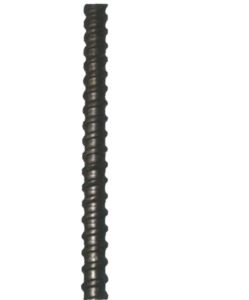

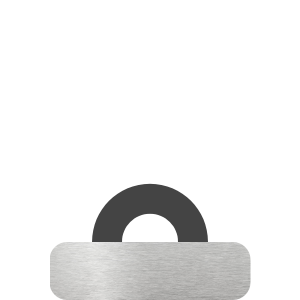

Apparatus Materials:Timber Beam, Plywood, Flange claw assembly, Steel waler, Tie rod, wing nut, Anchor plate, CT prop, Head Adapter and Foot Adapter
Step 1
Calculation of cross-sectional area:
Welcome to
Foundation in Formwork Experiment
of Formwork Technology in Civil Engineering Virtual
Lab
developed by Prof. K. N. Jha, Department of Civil
Engineering, IIT Delhi.
Prof. K. N. Jha
IIT Delhi
| Calculations: | |
|---|---|
| Total Length(m) | |
| Weight(kg) | |
| Cross-sectional area (mm2) | |
Results
Date of test:
Grade of Steel: 550 SD steel
| Weight of specimen (g) | 698 |
|---|---|
| Length of specimen (mm) | 805 |
Effective cross-sectional area,
So(mm2) =
|
110.4 |
Original gauge length L (mm) =
|
59.4 |
| Choosen gauge length Lo (mm) | 60 |
| Yield Stress (MPa) | 480.84 |
| Tensile Strength (MPa) | 600.62 |
| TS/YS Ratio | 1.25 |
| Final gauge length, Lu mm | 77 |
| Final diameter minimum (mm) | 7.1 |
| % Elongation after fracture | 28.33 |
| % Reduction in area | 64.13 |
