DIRECT SHEAR TEST ON MILD STEEL PLATE
Objective
To determine experimentally, the ultimate shear strength in double shear of mild steel plate.
Apparatus used:
Universal testing machine, Shear attachments,Vernier calipers.
STEP
1
→
Width
←
↓
Thickness
↑
Take the mild steel plate specimen and determine the width 'w' & thickness 'd' of the mild steel plate using vernier calipers.
Mild Steel Plate
→
Width
←
↓
Thickness
↑
STEP
2
Plunger

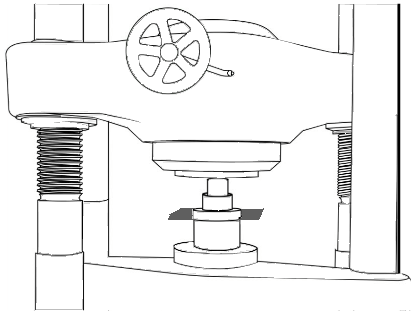

The mild steel plate is placed in the shear attachment and placed into the Universal Testing machine.
Plunger
STEP
3

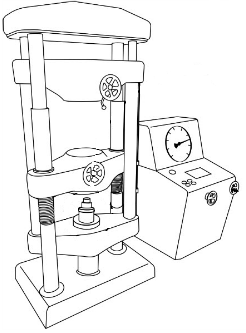

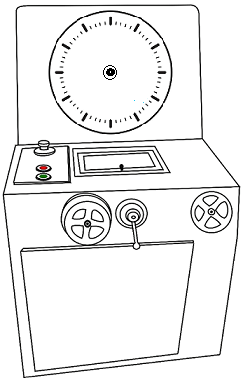

The machine is switched ON & the load is gradually increased until the specimen is fractured and the required load is noted down.
STEP 4
Calculate the double shear strength of mild steel plate.
| Width of the failure plane 'w' (mm) | Thickness of the failure plane 'd'(mm) | Area of cross-section (A=w*d) mm2 | Failure Load P (kg) | Double Shear Strength (P * 9.81)/2 A (N/mm2) |
|---|---|---|---|---|
STEP 5
Observation and Result
| Width of the failure plane 'w' (mm) | Thickness of the failure plane 'd'(mm) | Area of cross-section (A=w*d) mm2 | Failure Load P (kg) | Double Shear Strength (P * 9.81)/2 A (N/mm2) |
|---|---|---|---|---|
| Width of the failure plane 'w' (mm) | Thickness of the failure plane 'd'(mm) | Area of cross-section (A=w*d) mm2 | Failure Load P (kg) |
Double Shear Strength (P * 9.81)/2 A (N/mm2) |
Percentage Error |
||
|---|---|---|---|---|---|---|---|
| Actual Value |
Entered Value |
||||||
Trial =
