- Drag the Furnace Machine from the tools.
- Right click on the machine and click on pin.

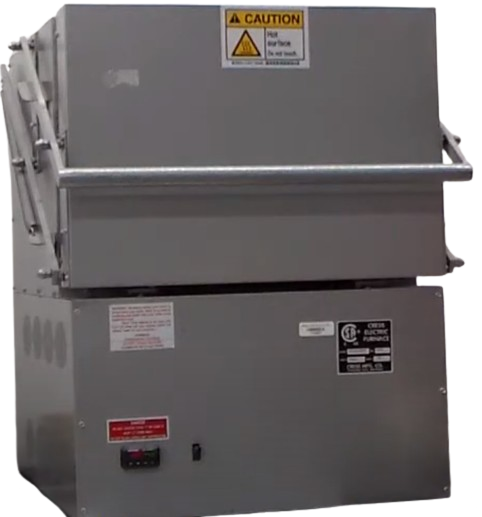

Furnace Machine

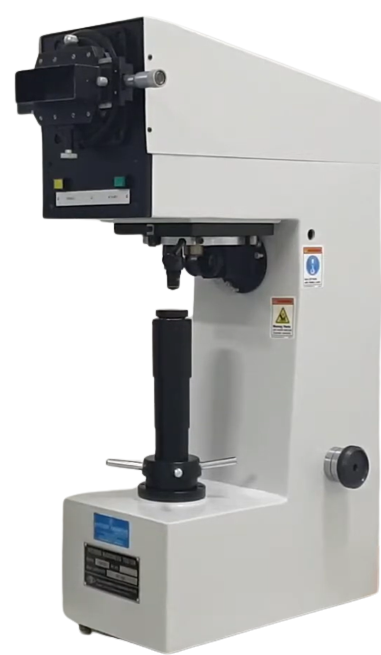

Vickers Hardness Tester

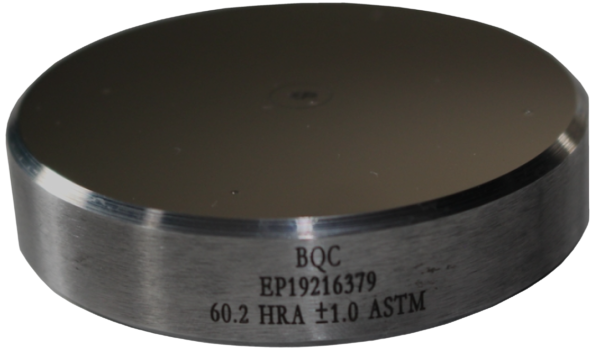

Aluminium Alloy Sample
Step 1: Placing of the Furnace Machine
Step 2: Heating of the sample in the Furnace Machine.
- Right click on the sample and drag it close to the furnace machine.
- Now,place the sample on the machine & click on pin.
- Keep all the solutionized samples in the furnace for aging at 470 deg C
- You can adjust zoom level also (Via Mouse Wheel).
Step 3: Hardness Testing of the sample in Vickers.
- Right click on the chamber of Furnace presented in the middle to unload the sample.
- Now,place the sample on the Vickers & click on pin.
- You can adjust zoom level also (Via Mouse Wheel).
Step 4: Observation Of Indent impressions of 7075 Al alloy age hardened at different durations .
| Time (in hrs) | Indent Impressions |
|---|
- Perform d1 & d2 measurement from indent impressions of Al alloy.
Step 5: Plot the graph.
- Click below buttons to start the machine.
- Test1 for 466.8 gf load at 120 deg C
| Time in hrs | Hardness (HV) |
Step 6: Activity.
Click next button to continue.
Step 7: Results

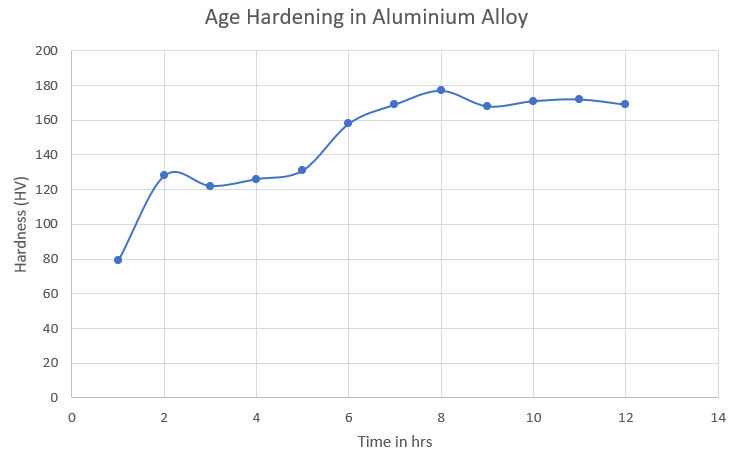

- Time vs Hardness(HV).
